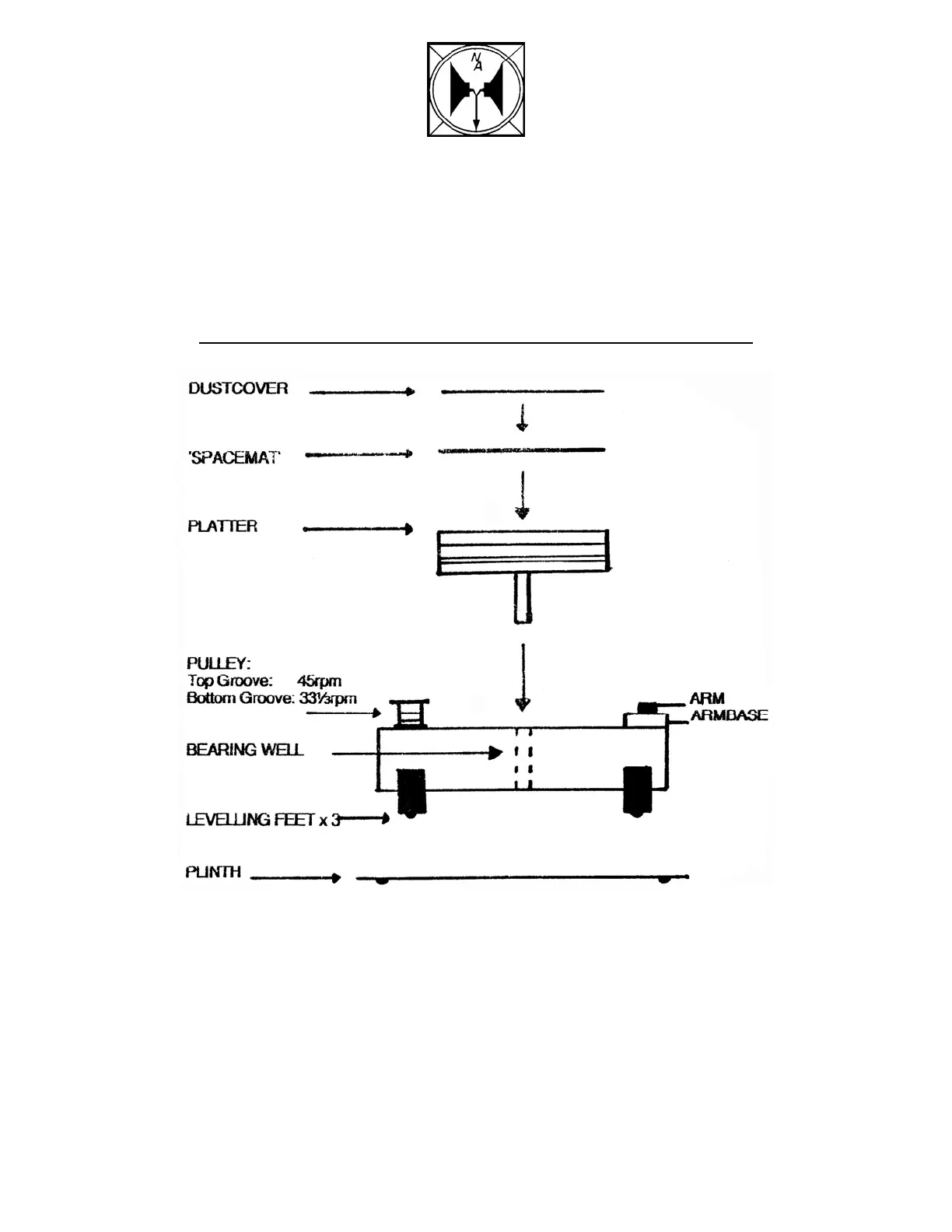

ASSEMBLY INSTRUCTIONS FOR THE HORIZON TURNTABLE
Put approximately ½ of a capful of oil into the bearing well. Lower the platter assembly into the
bearing well and allow it to settle. This may take a few minutes.
Place the drive belt provided around the platter and pulley using the appropriate grooves for the
desired speed.
Fit the arm into the armbase and adjust using the protractor provided after you have fitted your
choice of cartridge.
Happy Listening!
