Nova INFINITY User Manual

Un-mounting Add-on Jaws
4. With the jaws opened to their
outermost position, push in the
Lock Push Pin on the back of the
Jaw Side using the pin in the end
of the Chuck Key Handle to release
the locking mechanism (Figure 4).

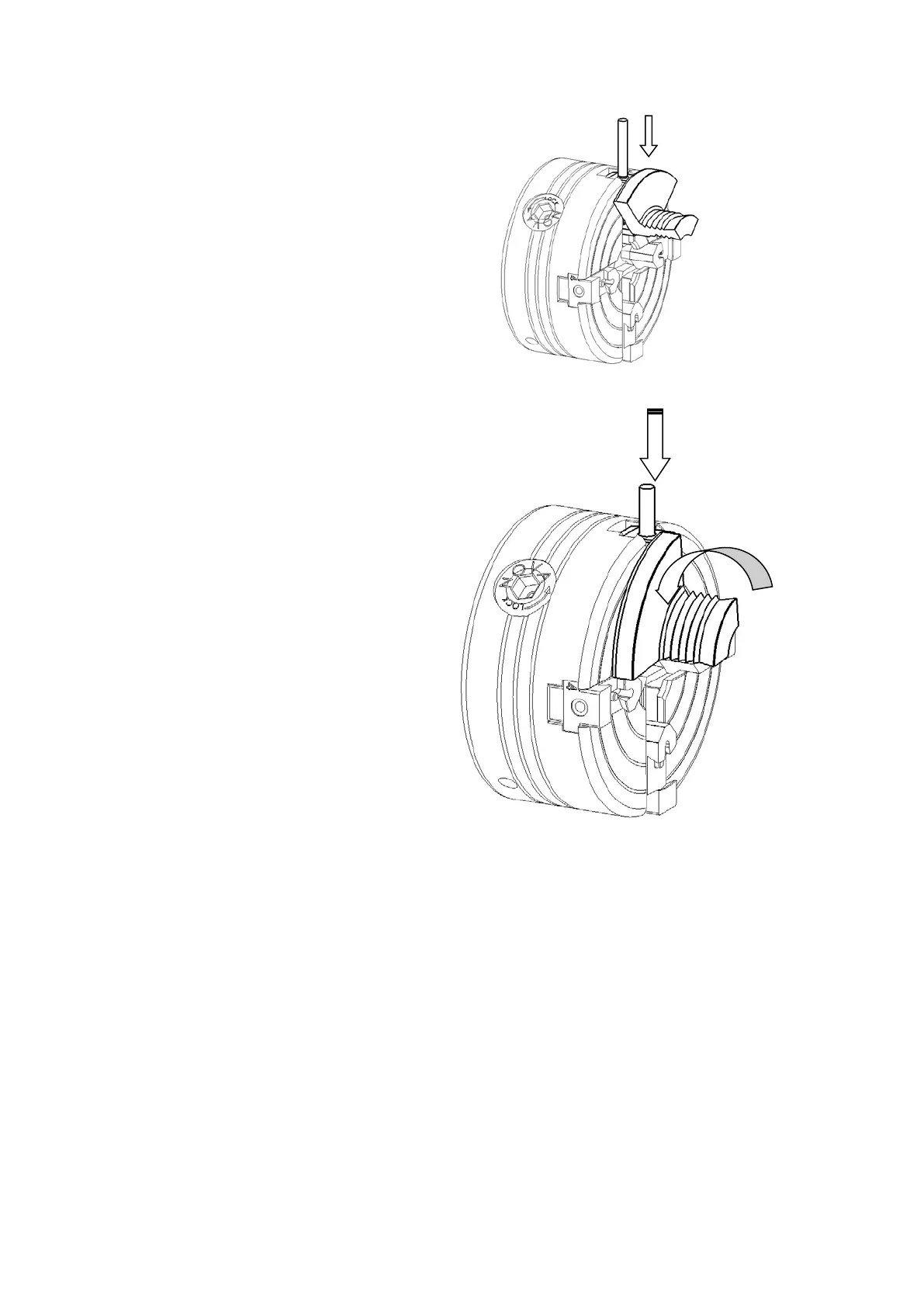

Figure 4
1. With the Lock Push Pin fully
depressed in, slide the Jaw anti-
clockwise in a circular motion Out
of the Jaw Slide. Remove the Pin
holding the lock push pin.
(Figure 3).
Repeat for all remaining Jaws.
NOTE: if the collet is not coming
out of the Jaw Slide, check the
Lock pin is fully depressed, if it
is and the jaw still can’t be
removed, lightly tap the jaw
anticlockwise out of the Jaw
Slide.
Figure 5
120-0913-009 19
