Removing your current chuck jaw slides
Uninstalling current chuck and jaw slides
1. Rotates the lathe and ensure the machine is not connected to any power source before beginning the
uninstallation process.

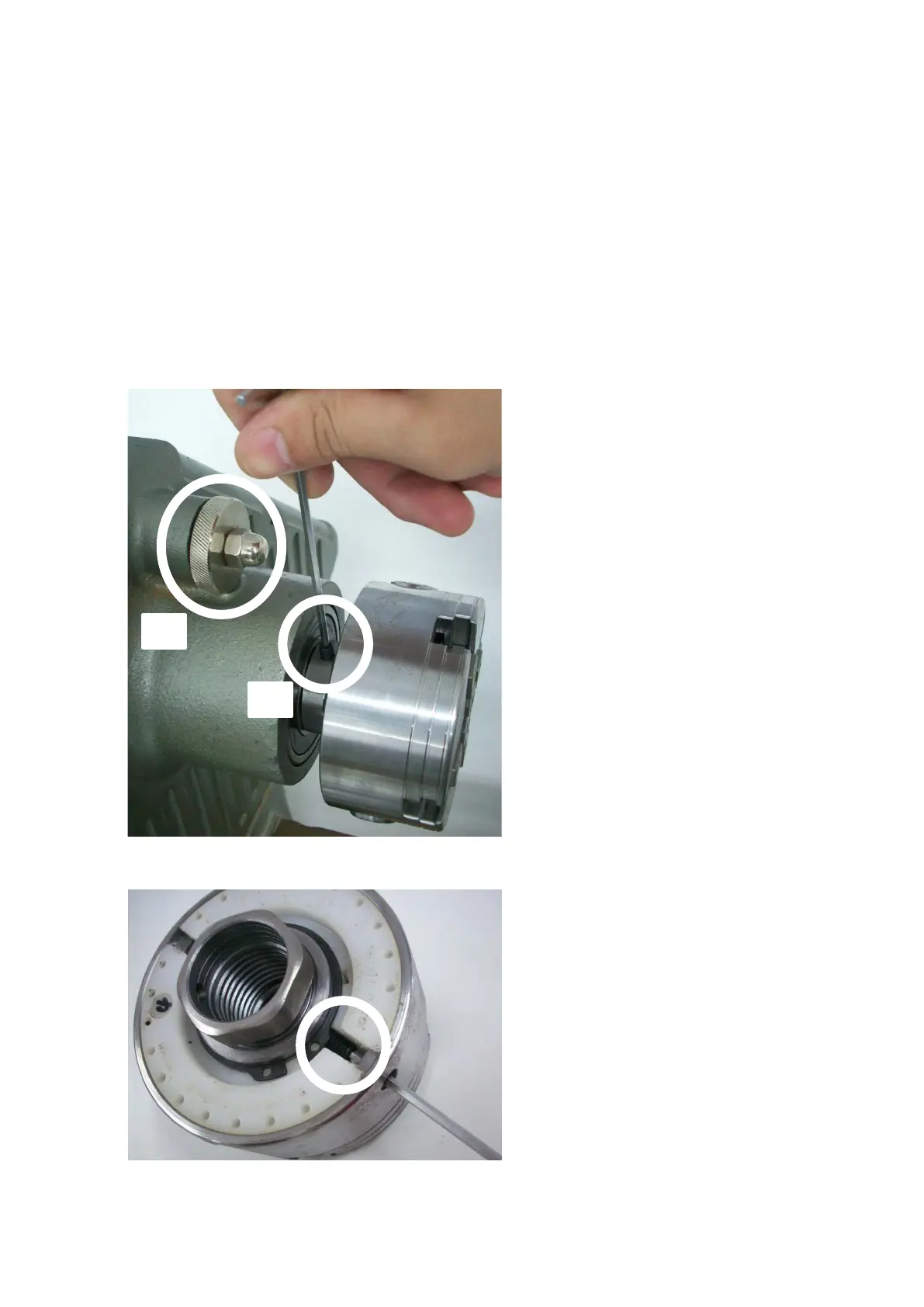

2. Removing the chuck from the lathe.
- Turn the chuck until the grub screw is seen on upper position.
- Secure the chuck position by turning the spindle lock knob to ‘lock’.
- Use NOVA universal spanner to loosen the chuck by engaging it to the L-insert and turn it counter
clockwise.
3. Removing the L-insert (This step may not be required if the lathe is directly attached to the chuck)
- Undo the second grub screw on the chuck body,
120-0913-009 9
