Using the INFINITY Quick Change Jaws on the
Chuck.
Mounting and Un-mounting Add-On Jaws
Please note that your particular Accessory Jaw may differ
from that which is depicted here. However the mounting
and un-mounting principal and steps are the same. They
need to be located and locked into the jaw slides of the
chuck. The same procedure outlined below must be
followed for all accessory jaws. IT IS IMPORTANT TO
LOCATE JAWS PROPERLY IN THE JAW SLIDES FOR
THE CHUCK TO FUNCTION SAFETY AND
ACCURATELY.
Mounting Add-On Jaws
1. Using the accessory Chuck Key SKU
8101, turn the chuck pinion gear
clockwise to open the jaws to their
outer most position (as in Figure 1).
IMPORTANT: Never leave the Chuck key
in the chuck when not in use!

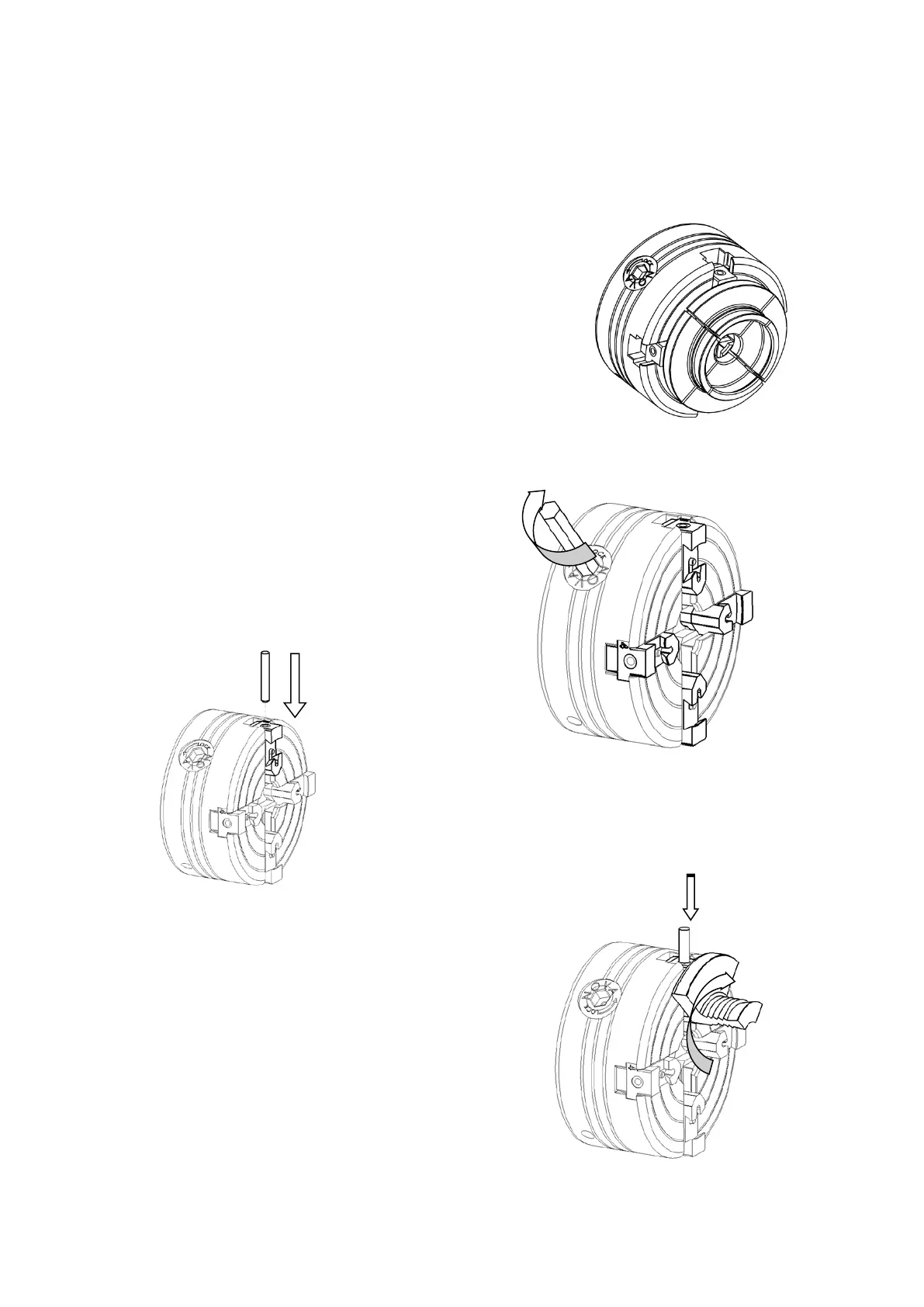

Figure 1
Figure 2
2. Push in the Lock Push Pin on the back of the Jaw Side
Using the pin in the end of the Chuck Key Handle to release
the locking mechanism (Figure 2).
Figure 3
3. With the Lock Push Pin fully
depressed in, position a desired
jaw on the left side of a free Jaw
Slide and slide the Jaw clockwise
in a circular motion into place in the
Jaw Slide. Remove the Pin holding
the lock push pin in and ensure the
jaw is securely locked in place.
(Figure 3).
Repeat for all remaining free Jaws.
120-0913-009 18
