OPERATING PROCEDURE continued
RELEASE Button Pressed-
Restraint DISENGAGING
Hook travels from the ENGAGED position to the
STORED position. Outside light is flashing red
alerting truck driver not to move. Refer to Figure E.
7
NOVA Lock & Load
TM
Owner’s Manual
FAULT from ENGAGING State
Hook cannot engage the RIG. This could be due
to a RIG that is located too far toward the rear
axle, bent, obstructed or missing. Inside light is
flashing red and horn is pulsing, alerting the fork-
lift operator that the trailer is not locked. Outside
light is flashing red alerting the truck driver not to
move. See Figure F.
If the trailer is parked firmly against the dock
bumpers proceed to HORN OVERRIDE. If not,
press RELEASE to clear the fault, have trailer
back up and repeat Restraint ENGAGING.

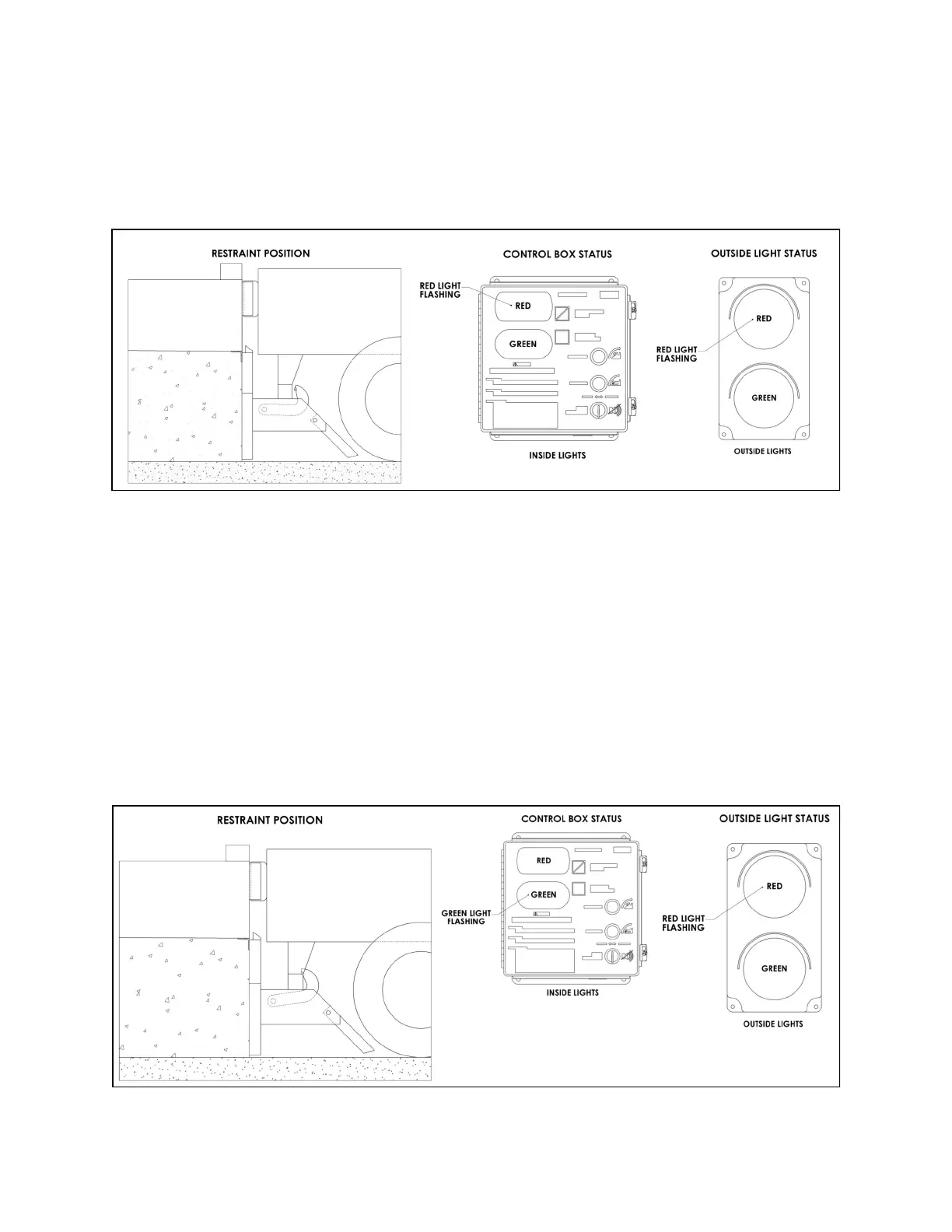

FIGURE F—FAULT STATE
FIGURE E—RESTRAINT UNLOCKING
