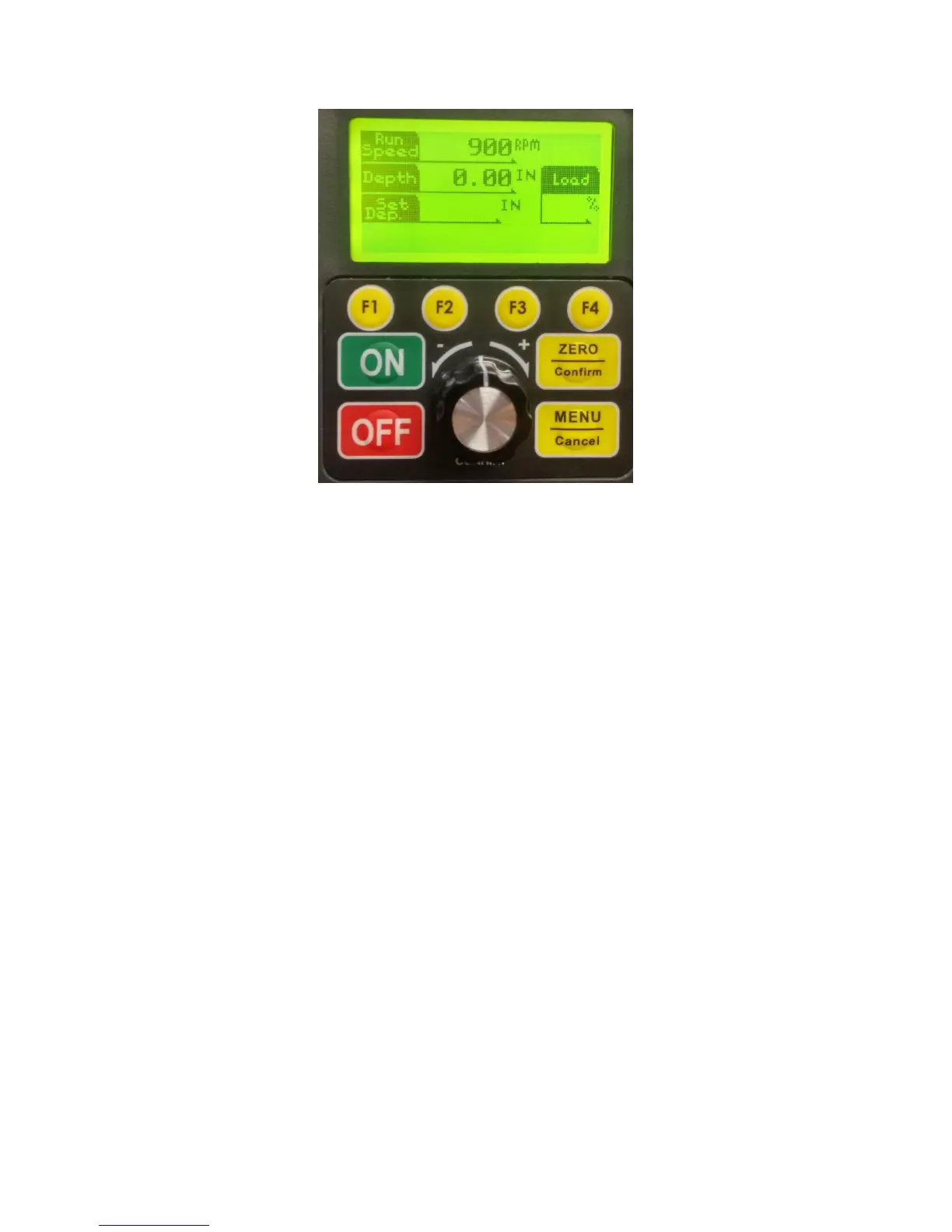

HMI (HUMAN MACHINE INTERFACE) LAYOUT
Running the Drill press
Once in idle mode, the LCD will display the information such as the set speed, current run speed, direction and current depth,
depending on the settings.
When the HMI displays that the drill press is ready to run, press the <ON> key to start the motor.
The <OFF> key can be used to stop the motor and reset the HMI into the idle mode.
To set a new zero “Depth” position for the drill press, press the <Zero/Confirm> key.
The electronic “Set Depth” can be accessed in the menu to set the drilling depth; press the <Menu/Cancel> button to access this
“User Set Depth” setting in the menu and more.
User Interface Menu
The HMI has been programmed with a user interface menu. The menu can be used to configure and view the parameters of the drill
press. The user can access the HMI Menu by pressing the <MENU> key when the motor is idle or running.
Navigating the Menu
● To cancel or exit the menu, the user can press the <MENU/Cancel> key until the HMI returns to the main idle screen.
● To select an item in menu, press the <ZERO/Confirm> key.
● To move the cursor UP the operator must turn the Speed Dial counter-clockwise OR press the <F1> key.
● Similarly, to move the cursor DOWN the operator must turn the Speed Dial clockwise OR press the <F2> key.
