Mounting and Using the 2MT Keyed Chuck

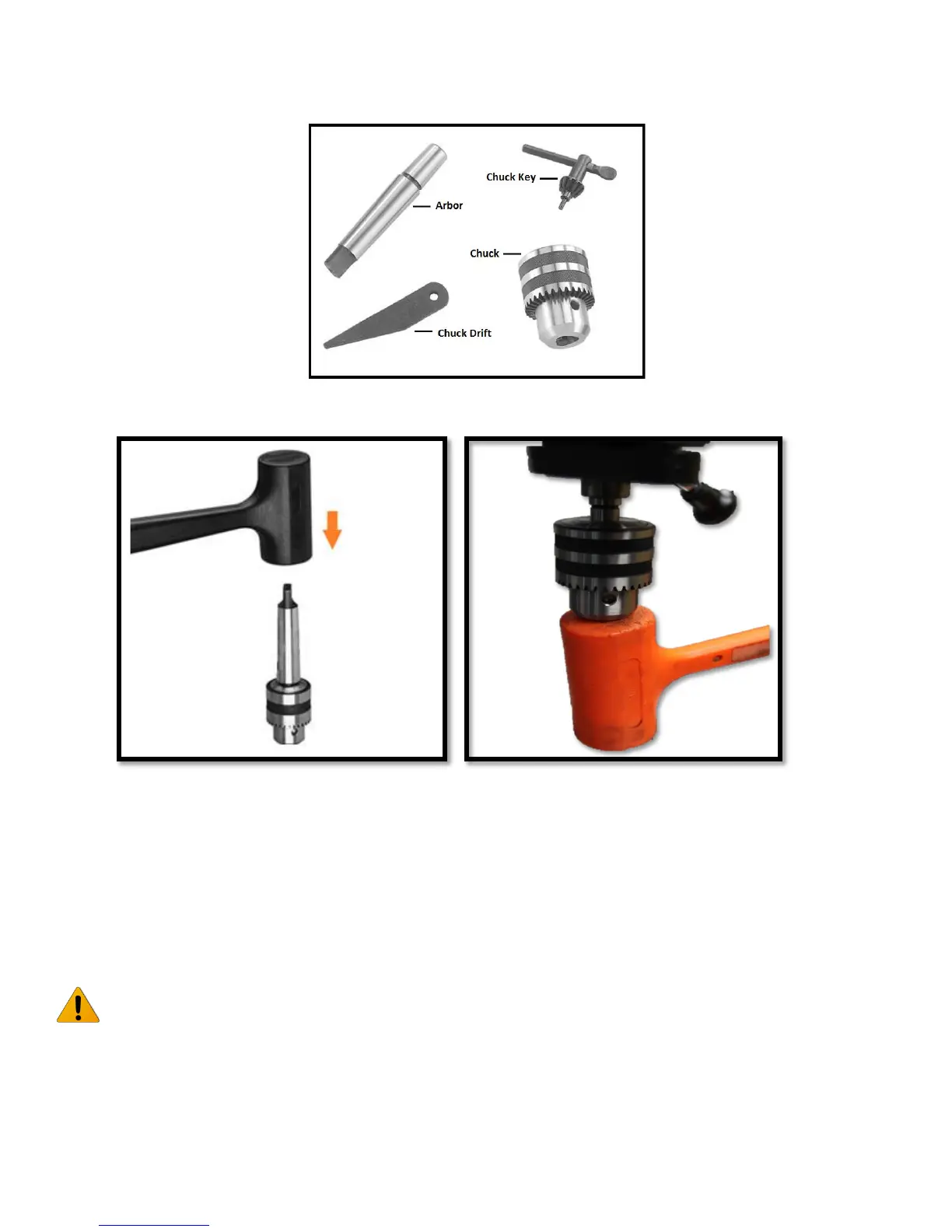

Figure 8 - Chuck components
1. Before mounting the chuck, be sure to fully clean the 2MT tapered of arbor without lubrication or debris.
Figure 9 - Seating arbor into drill chuck (left) & Seating arbor and chuck into spindle (right)
2. Slide the arbor into the spindle socket while slowly rotating the drill chuck. The Seating arbor into the drill chuck (left)
shown in Figure 8.
3. Insert the arbor and the chuck into the spindle until it stops.
4. If the arbor and the chuck do not fully insert: while applying light upward force, rotate the chuck until it aligns and inserts
fully into the spindle.
5. With the chuck jaws fully retracted, arbor and chuck upward with a hammer on a wood block or a soft hammer to fully seat
the arbor and the chuck. The Seating arbor and chuck into spindle (right) shown in Figure 8.
Caution! DO NOT use a steel hammer on the drill chuck to seat the arbor into the spindle. You will
damage the chuck and/or spindle, which may make them unusable or unsafe.
