Voyager Operation Basics
NOTE: For more a more in-depth description on the DVR Drive setup, settings, and features, please refer to section “Running the Drill
Press” in this manual.
When the NOVA Voyager DVR Drill Press has just been powered up, the product name and logo will be displayed on the LCD,
followed by warning messages.
Height Sensor Calibration
The first time the drill press is turned on, the drill press will prompt the user to calibrate the height sensor. To calibrate the sensor,
follow the on-screen prompts and make sure to carefully position the quill height at a consistent spot for each inch interval. If the
consistency of marking each inch isn’t accurate enough, the calibration will have to be redone.

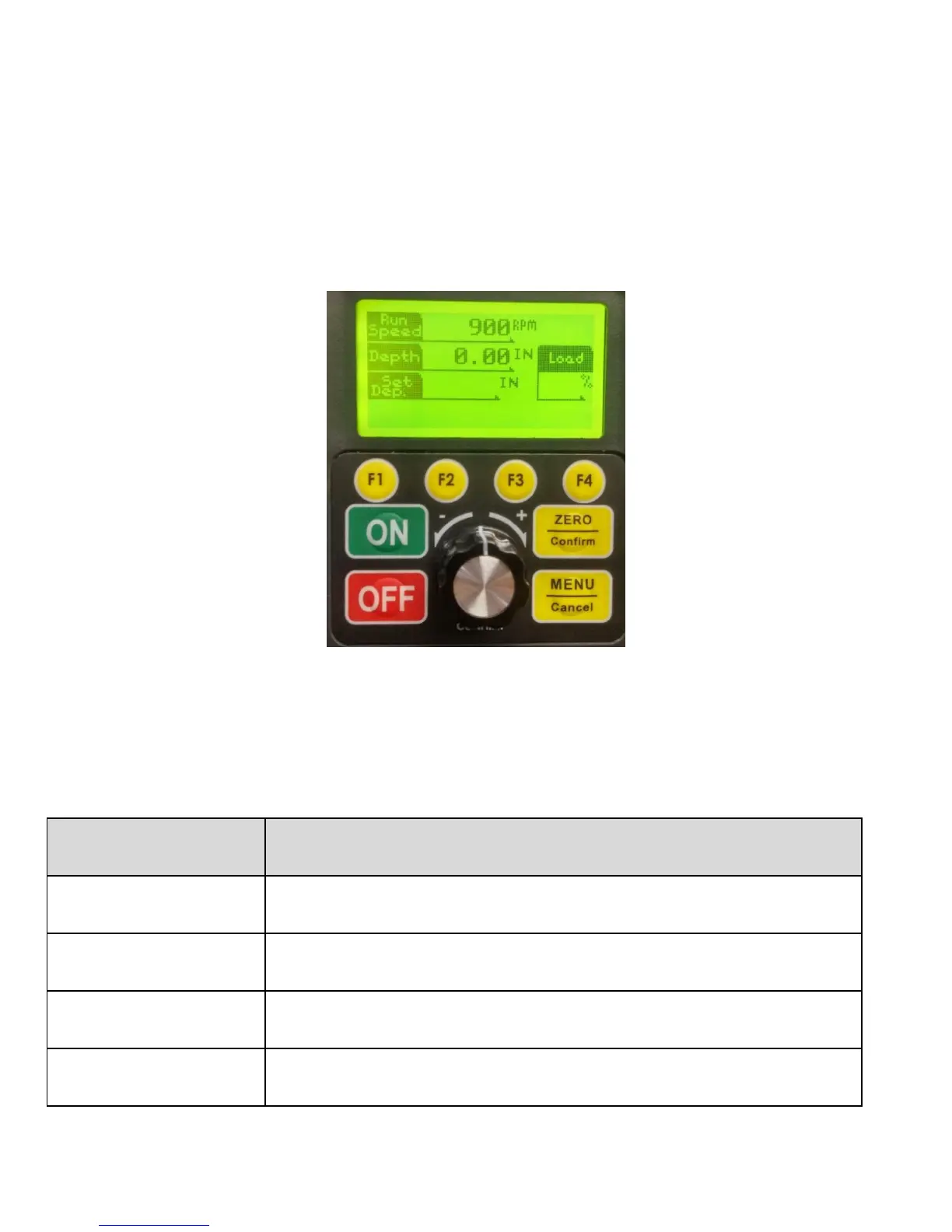

The default home screen will show as follows:
Default Run Speed (Fav. Speed #2D)
Depth displays current vertical position of the quill
Set Depth will display the current User Set Depth (blank when off)
Rev will be displayed at top right only when running in reverse
Load % shows the current load on the motor
Start key / Reset value in select menus
Stop key / Return to main screen from menu
Open menu / Back one level in menu / Cancel
Set new zero location / Menu confirm
To Next Page
