CYCLONE & ATOM INSTRUCTION MANUAL 21

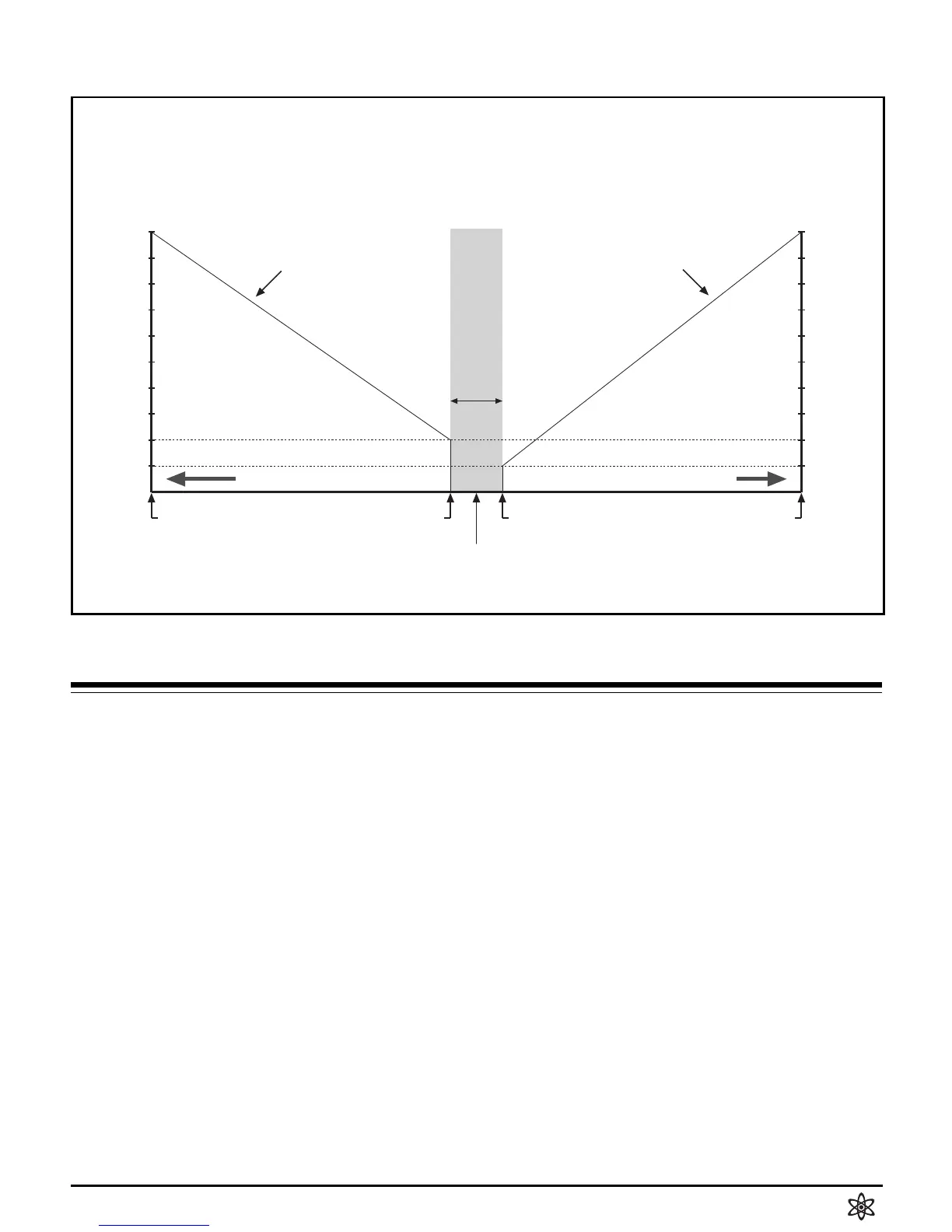

FIGURE 14 General Diagram of Minimum Brake, Dead
Band and other parameters.
The Cyclone & Atom come with a Minimum Brake
Adjustment feature to give the user control over the starting
value of the brake throw. This adjustment is made with the
ESC’s BRAKE pot, using the included adjustment screwdriver.
DO NOT rotate the pot beyond its end stop—this will
damage the pot and void the warranty.
• By turning the BRAKE adjustment pot clockwise , the
amount of minimum brake is increased to a maximum of
75% of the total brake throw.
• When the BRAKE pot is turned all the way counter-
clockwise , the amount of minimum brake is set to
0.39%. This means that the first brake pulse is 0.39% of
the total brake throw.
MINIMUM BRAKE ADJUSTMENT
STEP 6: Throttle Profile Selection (continued)
DEADBAND
15%
TRIGGER POSITION
Neutral
Minimum
Drive
[10%]
Minimum
Brake [20%]
Full
Brake
Full
Throttle
10
10
20
50
100
20
50
100
% FULL DRIVE
% FULL BRAKE
256 Discrete Steps
to Full Brake
256 Discrete Steps
to Full Throttle
