Novatel MT3060 - LED Status Indicators

MT 3060 User Guide 9
LEDs
The MT 3060 includes LEDs to indicate OBDII, Network, and GPS status.

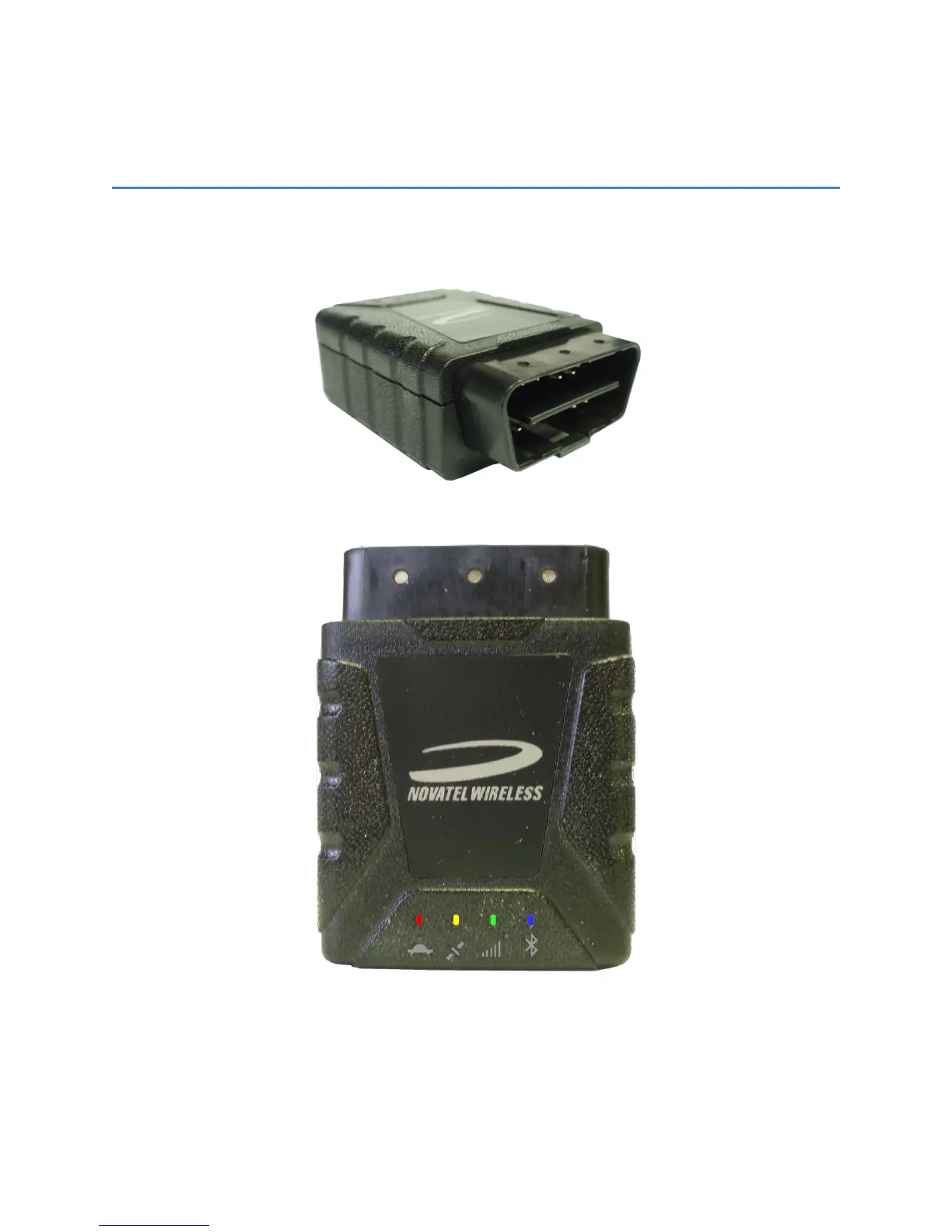

The following figures show the MT 3060 OBD II connector and LEDs.
Figure 2-1: MT 3060 Connectors
Figure 2-2: MT 3060 LEDs
