Chapter2 Connection
Manual of NVEC400
- 14 -

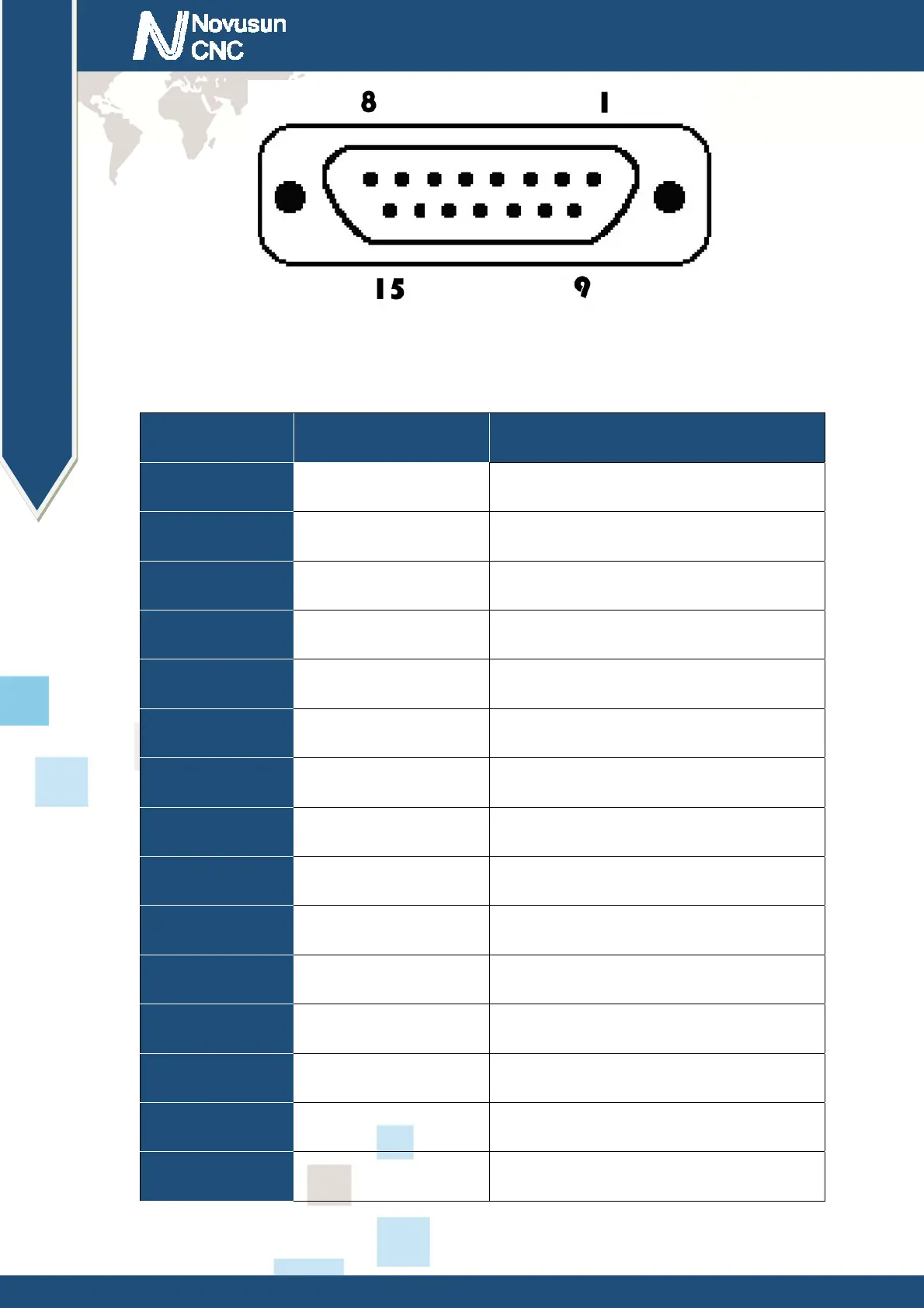

Figure2-9. MPG Port Pin order
This card connect with MPG by this port. The port definition see as table 2-2
No. Mark Definition
1 T1OUT TXD of Serial port
2 VMPG Power supply + for MPG(5V)
3 WHA+ A phase positive of the encoder
4 WHB+ B phase negative of the encoder
5 XIN X axis select input
6 ZIN Z axis select input
7 X100IN 100 rate select input
8 EP Estop port
9 R1IN RXD of Serial port
10 GND Ground and common end
11 WHA- A phase positive of the encoder
12 WHB- B phase negative of the encoder
13 YIN Y axis select input
14 AIN A axis select input
15 X10IN 10 rate select input
Table 2-2. MPG port definition
www.nvcnc.net
