Chapter2 Connection

Manual of NVEC400

- 16 -

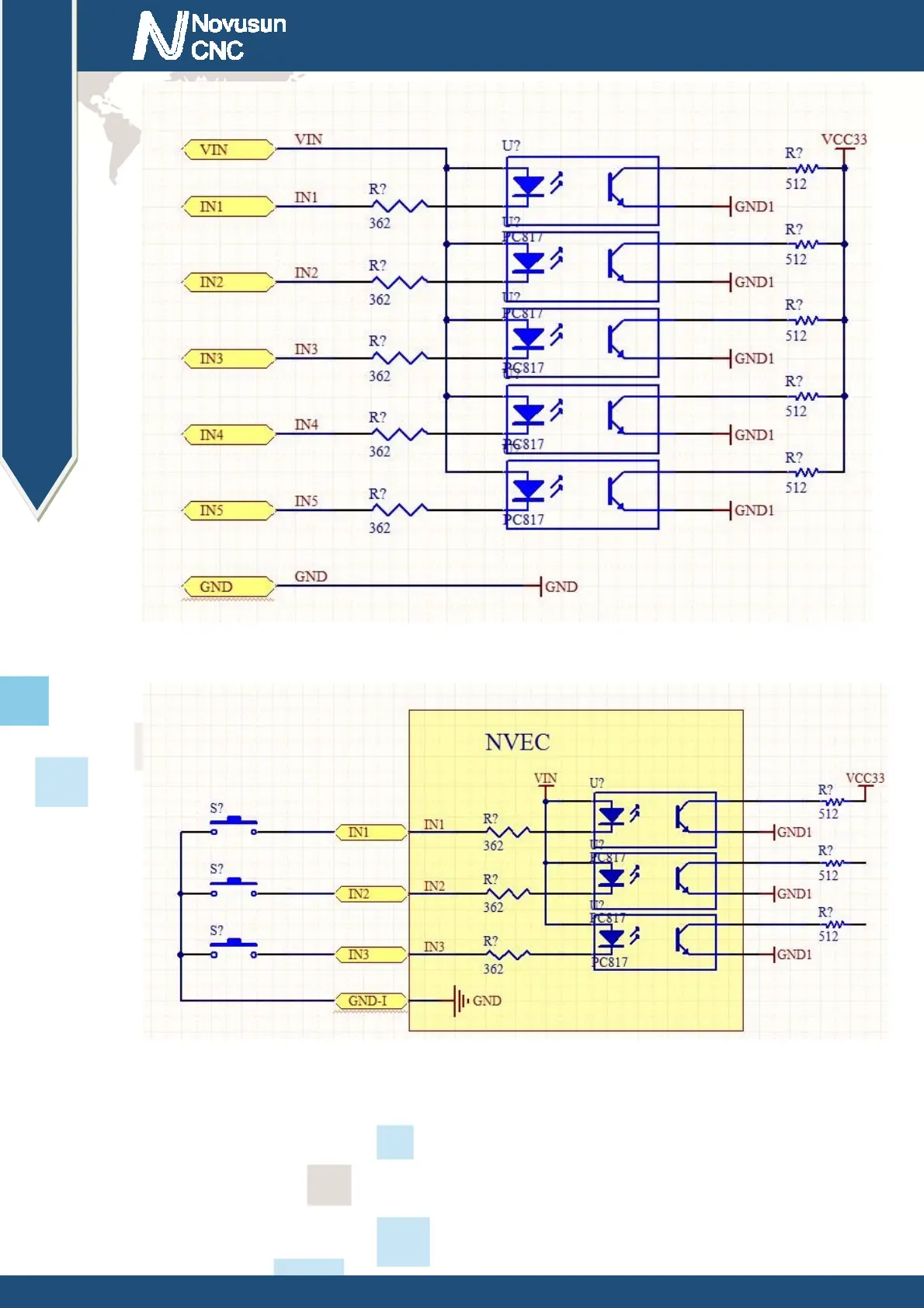

Figure2-11. Internal structure drawing of Input interface

Figure2-12. Probe/Estop/ ordinary fretting switch input connection

3 lines Proximity Switch connection Figure 2-13,brown cable for Proximity switch connect

with 12V,Black cable connect channel, blue cable connect with GND1.

Only support NPN 3lines proximity switch.
