parameter settings dialog. See as Figure 4-3

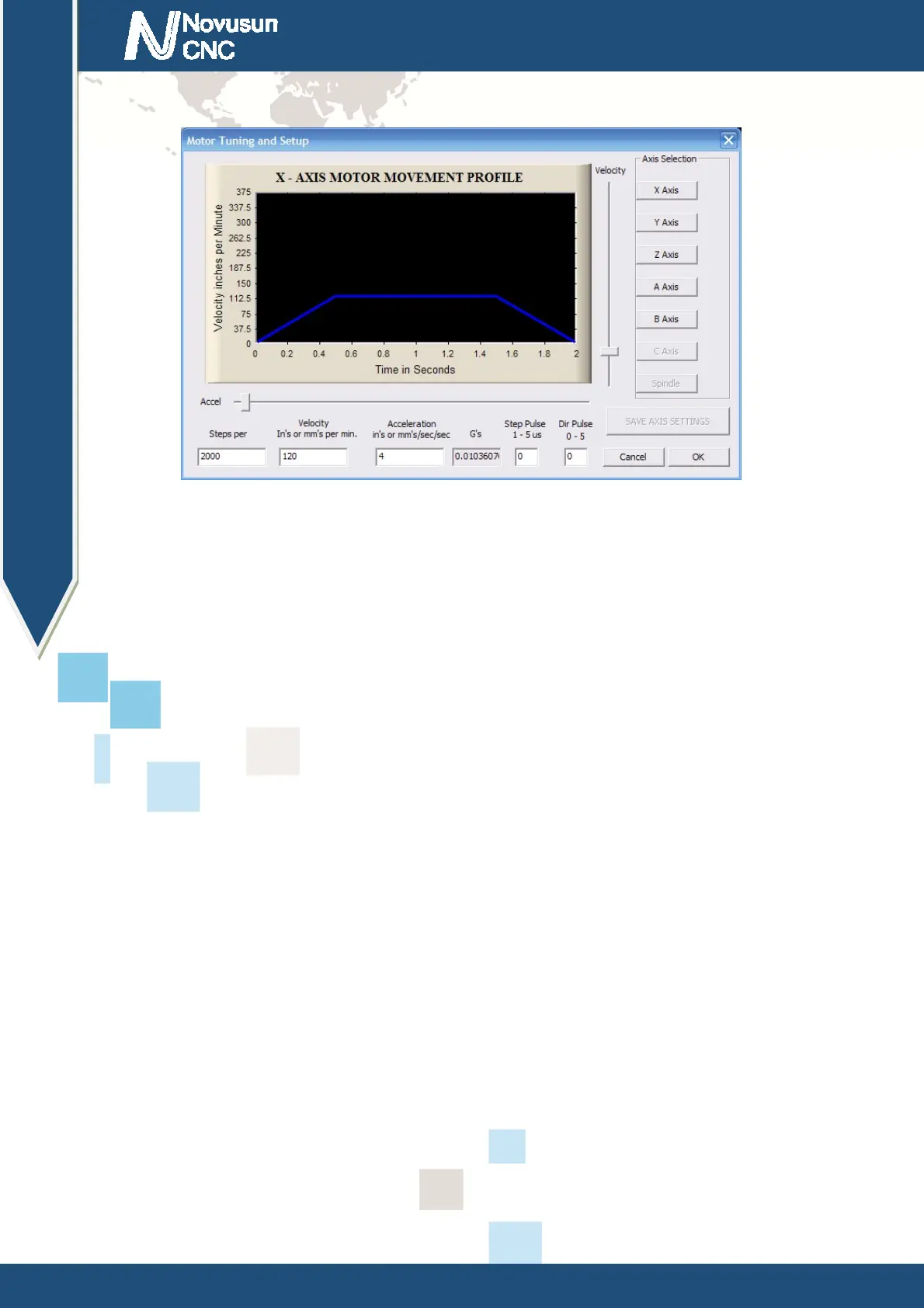

Figure4-4. Motor operating parameter settings dialog
The parameters are defined as follows:
S
：
teps per Pulse equivalent ,it is number of pulses required with axial movement 1mm, This
can be calculated by lead screw pitch and motor drive segment. Such as pitch 2.5mm,2-phase
motor 8 segments, Calculation method is
。
8*200/2.5=640
：
Velocity The speed is the axial velocity, Units
，
is mm/s Recommended settings 1500.
：
Acceleration Units
，
is mm/s2 Recommended settings 200.
：
Step Pulse Step Pulse Cannot be set, it’s 2.5us in default.
：
Dir Pulse . Dir Pulse Cannot be set, it’s 2.5us in default.
Attention: The parameters for each axis is not necessarily the same，To select the axis,
and then set parameters. You should click “SAVE AXIS SETTINGS” After setting.
