<X BL Series>
Bulb
Bulb Holder
Joint
Bulb
Bulb Holder
Joint

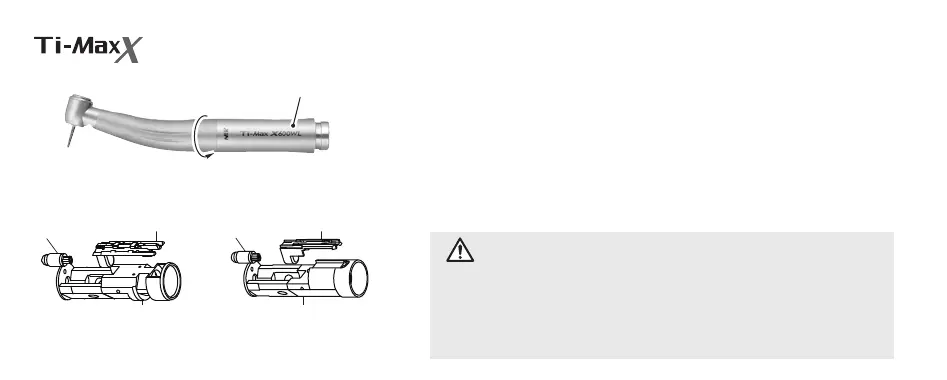

Replacing the optic illumination bulb
Fig. 7
Fig. 8
Figure shows X600WL
<X WL Series>
Taper Ring
Remove the handpiece from the coupling. Loosen and remove the
taper ring. (Fig. 7). Pull out the joint then remove the bulb holder,
then the bulb. Align the pins of the new bulb with the points in the
bulb holder and insert the bulb. Place the bulb holder back into the
joint. (Fig. 8). Firmly tighten the taper ring.
Optional Bulb : TA Bulb (Pack of 3) Order No.Y900132
Caution
Do not touch the glass section of new bulb. Screw the taper ring
tightly. A loose fitting taper ring could result in water and air
leakage. It is easier to screw in the taper ring when the bulb holder
is lightly pressed in by hand.
(X WL, X BL Series)
