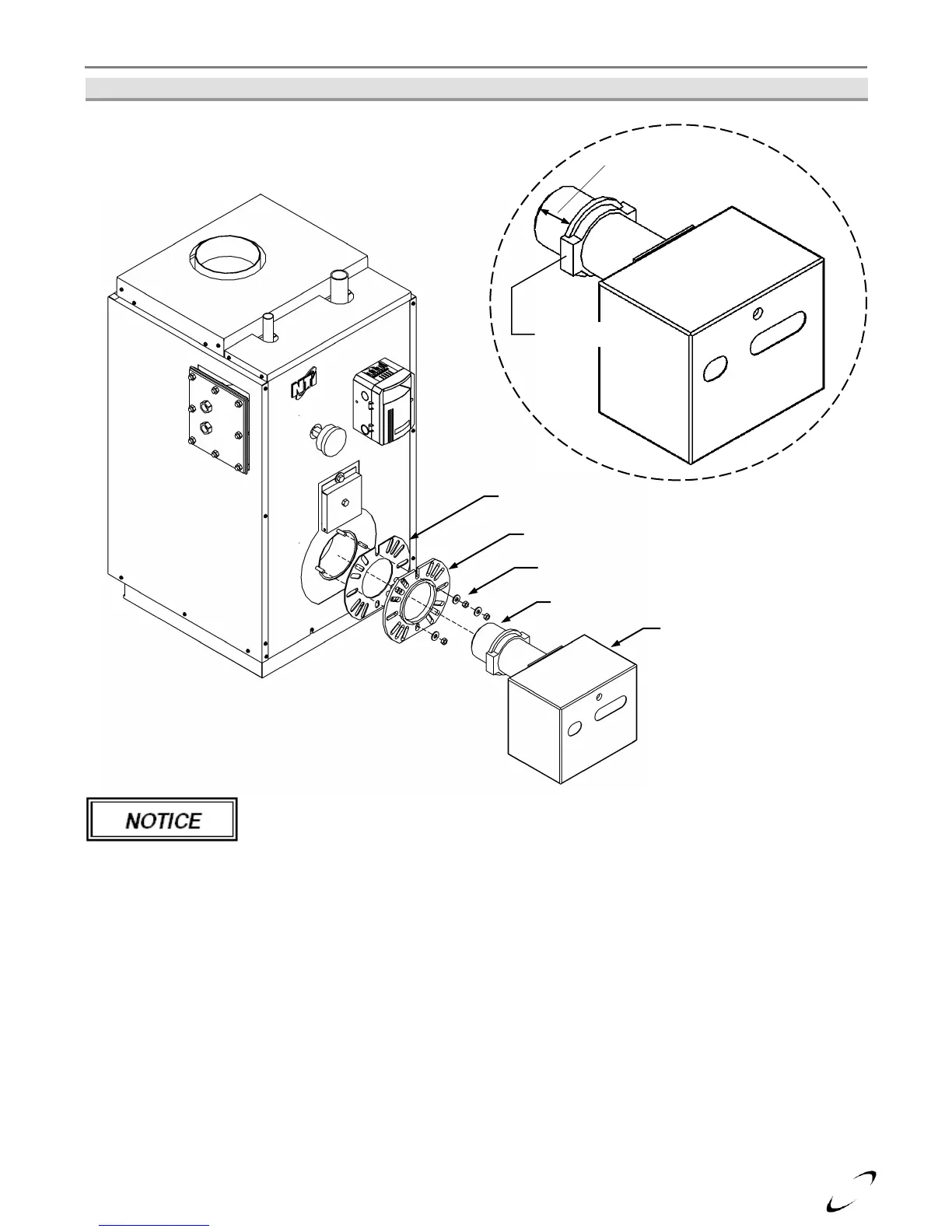

Figure 4-5 Burner Installation
Prepare the burner as per the burner manufacturer’s instructions. Refer to Tables 2-1 to
2-4 for nozzle sizes, burner settings, insertion depths, air settings, and specifications.
Burner Gasket
Burner Flange
Burner
Washers and Nuts
Blast Tube
Set insertion depth
(Tables 2-1 to 2-4)
Blast Tube Ring
