C 85-340 Direct Vent - Installation & Operation Instructions │ Caprice
23
Important Warning - It is the responsibility of the installing contractor to ensure that:
1. The boiler and venting system are totally sealed from products of combustion.
2. The homeowner is advised of their responsibility of keeping the vent terminal clear of snow and ice.
3. That the home is equipped with a carbon monoxide detector.

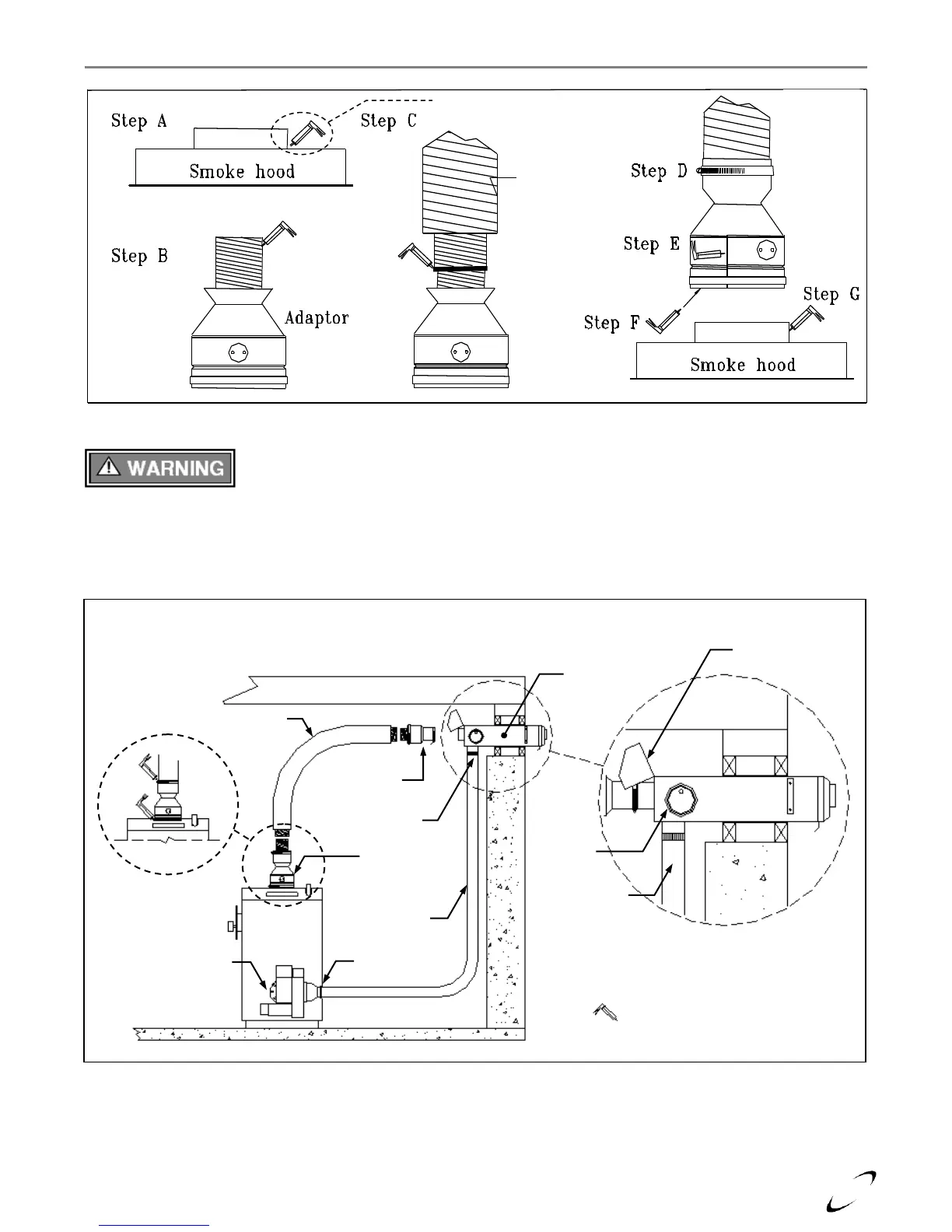

Figure 7 -6
Insulated Flex
Seal with silicone where shown.
Figure 7 -7
Typical Balanced Flue Installation for C95-150
Seal with silicone where shown.
Tilt down
after sealing
Vacuum
Breaker
Direct Vent Terminal Installation
Insulated Flex
Direct Vent
Terminal
3” Flex (10’)
Riello Burner shown
(illustration purposes)
6” to3” Ported
Adapter
3” Insulated
Flex to Pipe
Adapter
Hose Clamp
Hose Clamp
Seal
Air Inlet Piping
3” Flex (10’)
