NTI FTV150 - Page 46

To Next Page

To Previous Page

Boiler and Heating System Piping │ FTV I&O Manual

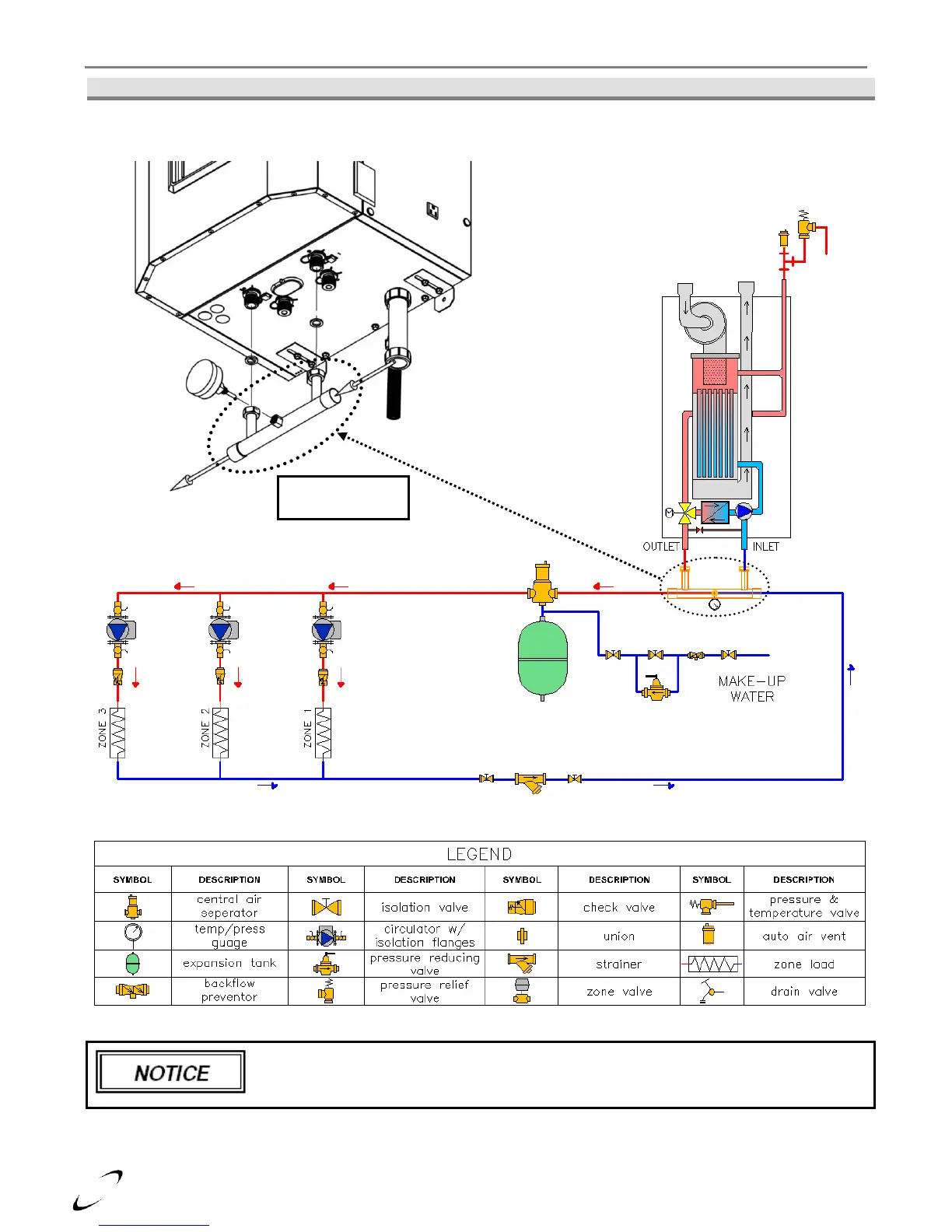

Figure 10-8 Plumbing Schematic – Multiple Central Heating Circulators (Combi)

Figure 10-8 illustrates the basic plumbing requirements for an FTV-Combi boiler

installation with multiple Central Heating circulators.

Low Loss Header

(p/n 85110)
