Tft Series Installation and Operation Instructions │Trinity
15

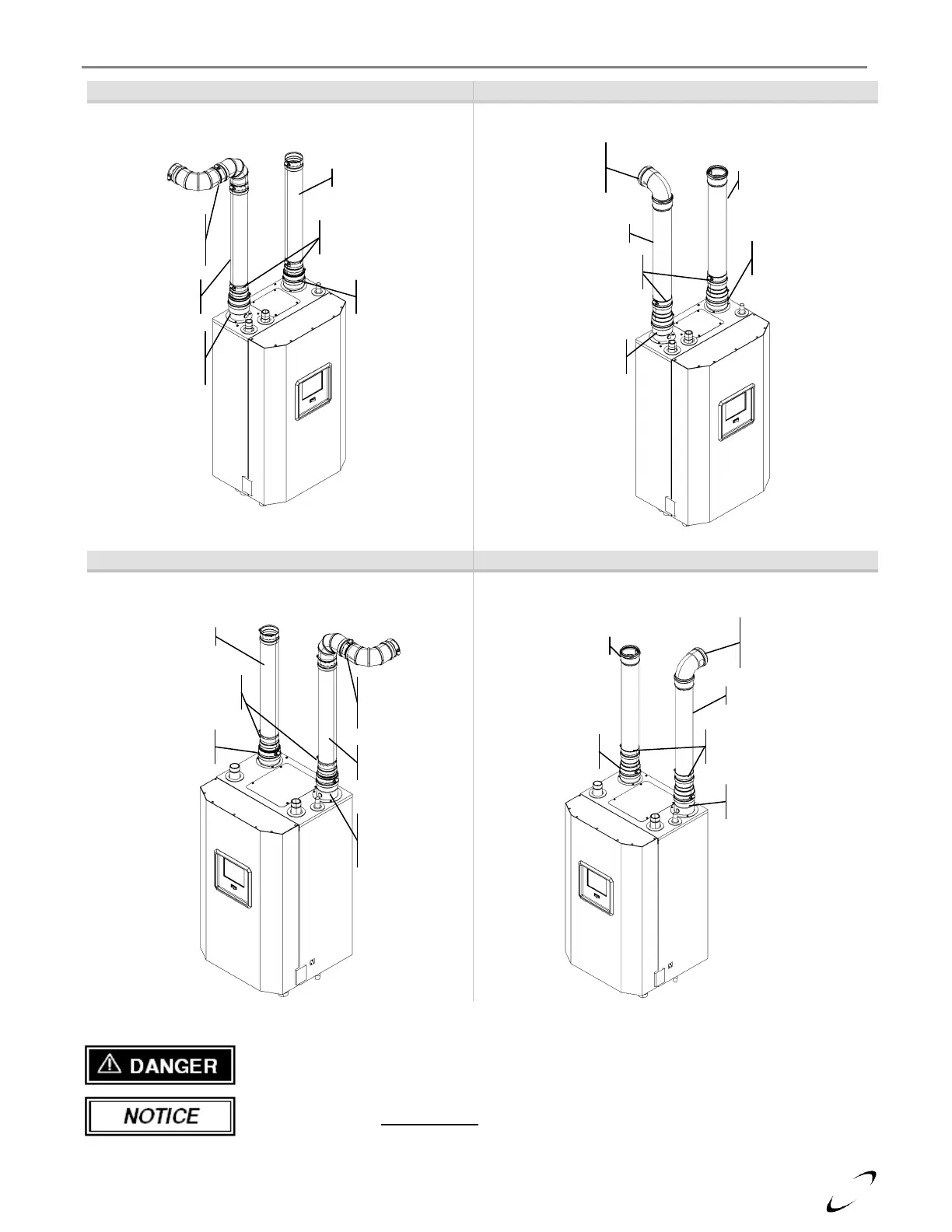

Figure 4-3(e) Trinity Tft60-154 & 340-399
Figure 4-3(f) Trinity Tft60-154 & 340-399
Near Boiler Venting (Stainless Steel)
Near Boiler Venting (Polypropylene)
Figure 4-3(g) Trinity Tft201-285
Figure 4-3(h) Trinity Tft201-285
Near Boiler Venting (Stainless Steel)
Near Boiler Venting (Polypropylene)

Air-Inlet - check with applicable local codes for acceptable pipe material.
Exhaust venting must be supported to reduce strain on piping joints. Failure to follow
these instructions may result in damage, serious injury or death.
In Canada, the first 3 ft (915 mm) of vent piping must be readily accessible for inspection.
Flue Outlet
Adapter (factory
supplied)
SS Exhaust
Vent
Swing Joint
to attain slope in
horizontal runs
SS Air-inlet Pipe
SS Appliance Adapter
(see Table 4-3)
Air Inlet Adapter
(factory supplied)
Air-inlet Adapter
(factory supplied)
PPS Elbow
w/ offset angle to
account for slope
PPS Exhaust Vent
PPS Air-inlet Pipe*
PPS Appliance Adapter
(see Table 4-3)
Flue Outlet Adapter
(factory supplied)
Flue Outlet
Adapter (factory
supplied)
SS Exhaust
Vent
Swing Joint
to attain slope in
horizontal runs
SS Air-inlet Pipe
FasNSeal Appliance
Adapter (see Table 4-3)
Air Inlet Adapter
(factory supplied)
PPS Appliance Adapter
(see Table 4-3)
Air Inlet Adapter
(factory supplied)
PPS Elbow
w/offset angle to
account for slope
PPS Exhaust Vent
PPS Air-inlet Pipe*
Flue Outlet Adapter
(factory supplied)
