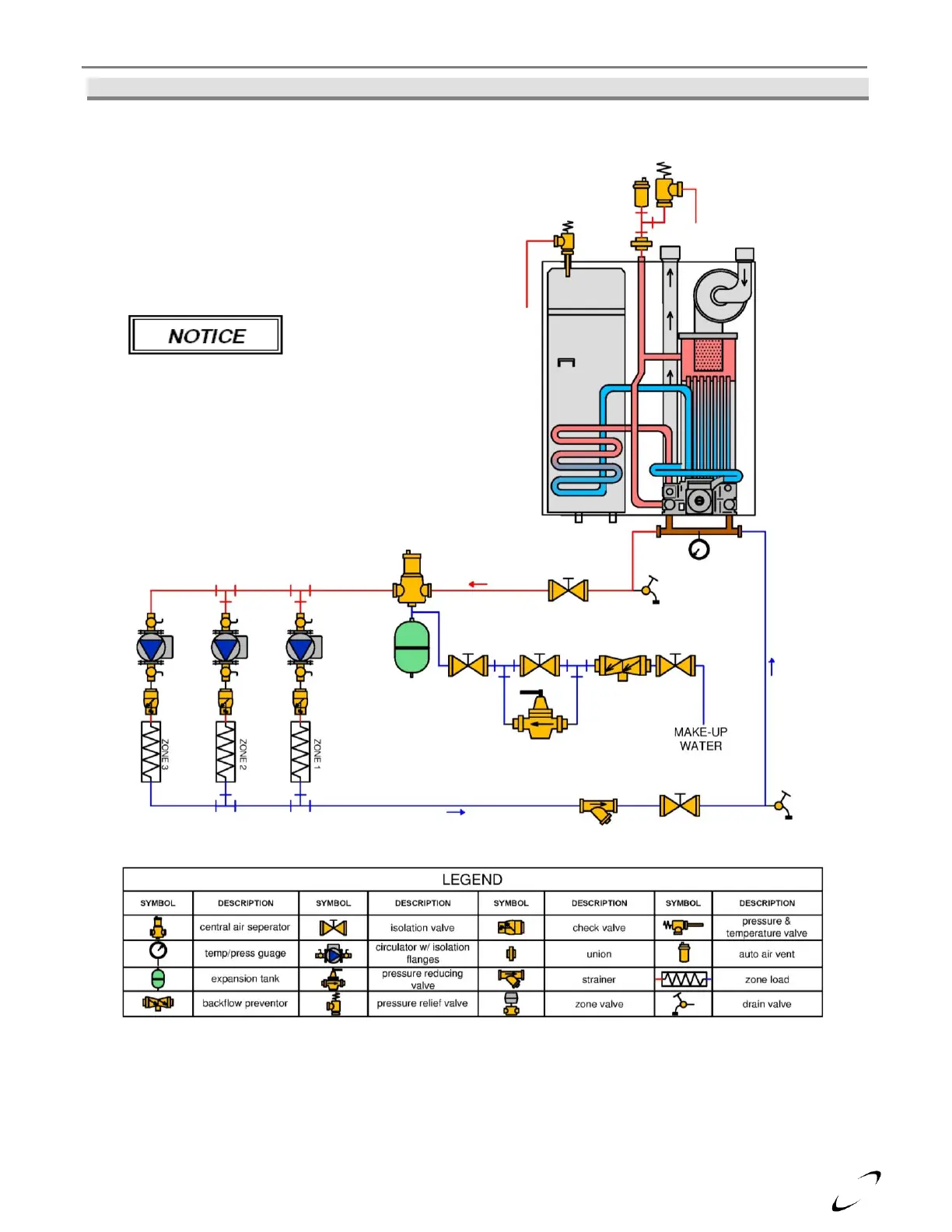

Figure 10-14 VM110P Plumbing Schematic – Multiple CH Pumps
Figure illustrates the basic
plumbing requirements for
a VM110P boiler installation with multiple Central
Heating circulators. Refer to Figures 10-3 and 10-4
for boiler fitting identification.
