21. 07. 20. Leaflet Number 671748
41
XBOXER XBC 10-65 Ecosmart Connect (CO) Control
11.9 Interconnection
11.9.1 Modular Cable (Up To 30 Metres)
The sensors or other devices on the SA bus network connect either by modular
RJ12 connections or by screwed terminals using plain ended cable. All sensors
are fitted with both.
The Room Modules can connect using a 24AWG twisted 3-pair cable with
RJ12 connections over the Sensor Actuator (SA) bus, the following items are
available.
Room Modules must not be fitted more than 30metres (cable length) from the
controller when using this connection method.
ESCO-C3M 3m Prefabricated sensor cable with modular jacks
ESCO-C5M 5m Prefabricated sensor cable with modular jacks
ESCO-C10M 10m Prefabricated sensor cable with modular jacks
ESCO-C20M 20m Prefabricated sensor cable with modular jacks
ESCO-C30M 30m Prefabricated sensor cable with modular jacks
ESCO-2WA 2-port extension adapter
ESCO-3WA 3-port extension adapter

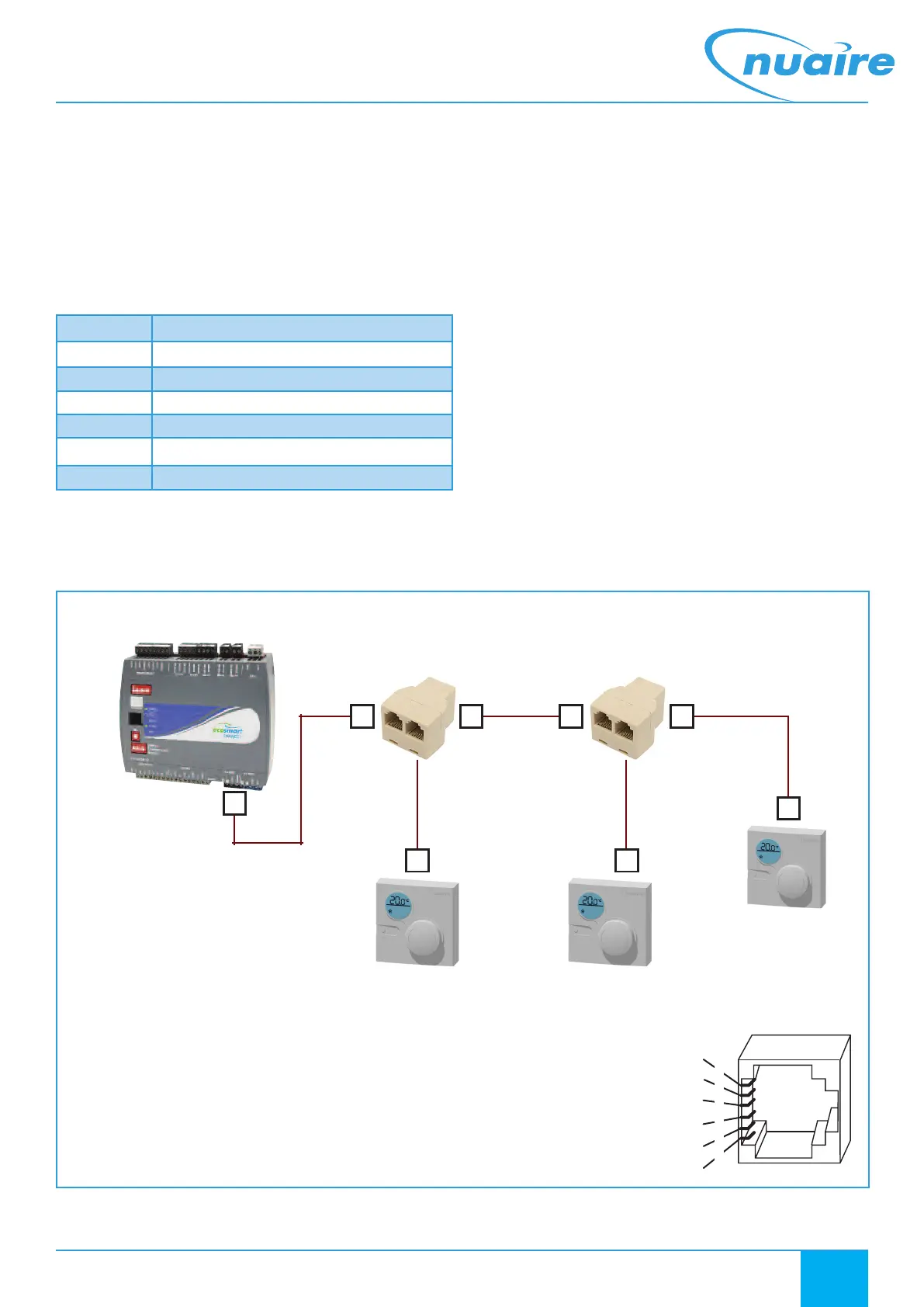

Modular Jack Network
Figure 36.
Controller 3-way female RJ12 adaptor 3-way female RJ12 adaptor
RJ12 Sensor jack
Cable Type: Pre-fabricated 3 twisted pair with RJ12 Plugs, 26AWG
Room Module
Room Module
RJ12 Plug RJ12 Plug
Room Module
Sensor, SA Bus (RJ-12 Modular Jack)
6
5
4
3
2
1
Power (15 VDC)
Power (15 VDC)
Bus and Power Common
Bus and Power Common
SA Bus -
SA Bus +
