The Honeywell outdoor sensor AC629 allows the thermostat to
display the exterior temperature and humidity readings (refer to
section 4.3). To connect the sensor:
n Insert one end of a pair of AWG 18 wires through one of the two
openings on the wallplate and connect them to terminals 2 and 3
(no polarity).
o Connect the other end of the wires to the terminals on the sensor
(no polarity). Refer to the AC629 manual.
p Configure the thermostat as “Master” using DIP Switch 2. Refer
to step 5 in section 2. However, leave as “Slave” if the sensor is
connected to a network that already has one thermostat
configured as “Master”.
NOTE: Only one sensor is required per network and can be
connected to any thermostat.
Display range: 32 °F to 158 °F (0 °C to 70 °C)
Display resolution: 1 °F (0.5 °C)
Setpoint interval: 1 °F (0.5 °C)
Setpoint range: see table below
Operating temperature: 32 °F to 120 °F (0 °C to 50 °C)
Storage temperature: -4 °F to 120 °F (-20 °C to 50 °C)
Control cycle: 15 minutes
GFCI rating: 5 mA
Approval: c CSA us
NUHEAT INDUSTRIES THREE (3) YEAR LIMITED WARRANTY
This product is guaranteed against workmanship defects for a three-
year period following the initial date of purchase. During this period,
NUHEAT will repair or replace, at our option and without charge, any
defective product which has been used under normal conditions.
The warranty does not cover delivery costs and does not apply to
products poorly installed or randomly damaged before, during or after
installation. This warranty cancels and replaces any other
manufacturer's express or implied warranty as well as any other
company commitment.
NUHEAT cannot be held liable for related or random damages
before, during or after the installation of this product. The defective
product as well as the purchase invoice must be returned to the place
of purchase or mailed, prepaid and insured, to the following address:
w

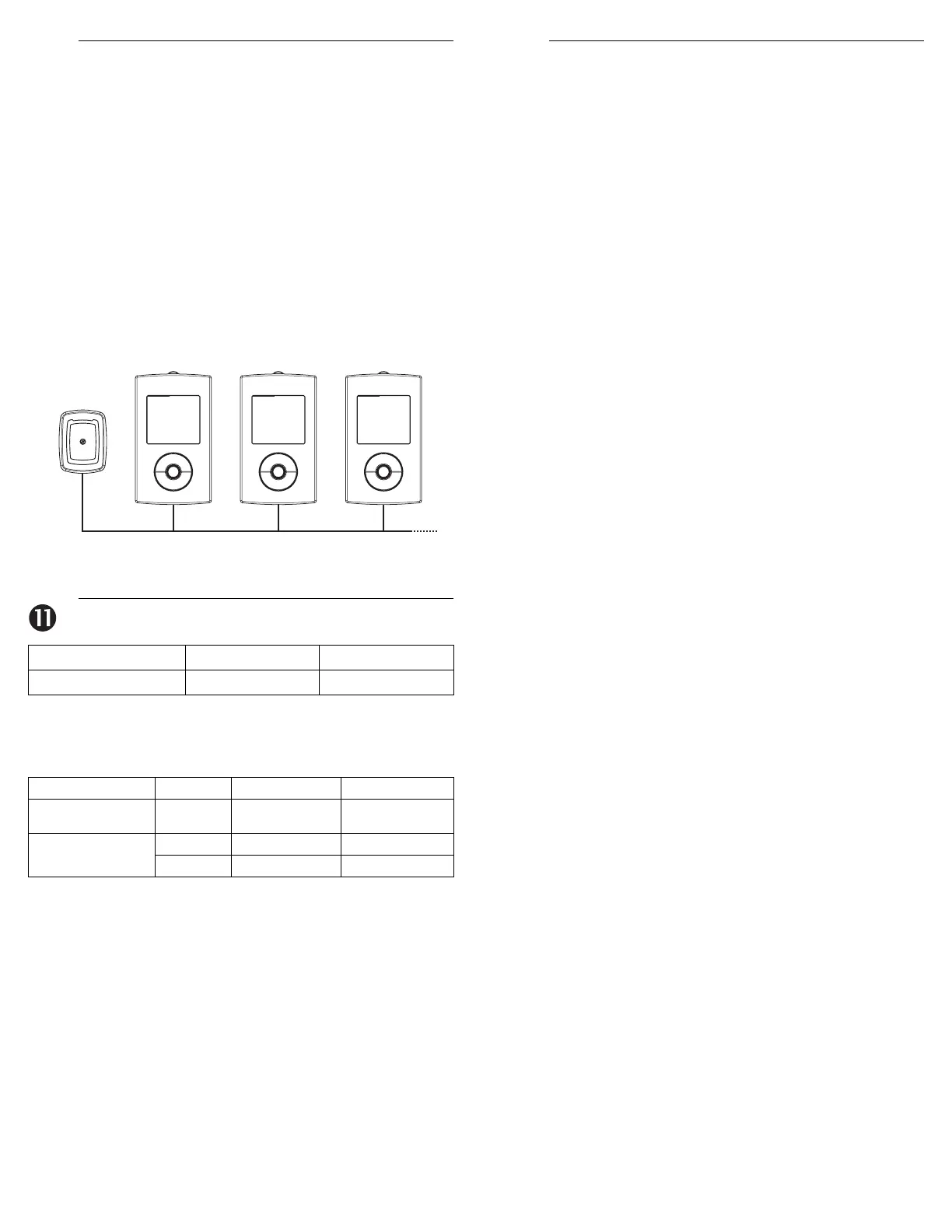

Outdoor Sensor
10.
Specifications
11.
Supply 120 VAC, 50/60 Hz 240 VAC, 50/60 Hz
Maximum load 15 A (1800 W) 15 A (3600 W)
Temperature Control Floor Type Minimum Setpoint Maximum Setpoint
Ambient or
Ambient+Floor
Tile or wood 41 °F (5 °C) 86 °F (30 °C)
Floor
Tile 41 °F (5 °C) 104 °F (40 °C)
Wood 41 °F (5 °C) 82 °F (28 °C)
Outdoor
sensor
NOTE: The outdoor sensor and all thermostats are connected
in a network via terminals 2 and 3 on each thermostat.
;
Warranty
12.
NUHEAT INDUSTRIES LTD.
USA
6920 Salashan Parkway
Building D-200
Ferndale, WA 98248
CANADA
1689 Cliveden Avenue
Delta, BC
V3M 6V5
1 (800) 778-9276
www.nuheat.com
NUHEAT
®
is a registered trademark of Nuheat Industries LTD.
