MIXER QUICK SETUP
1. Make sure all items listed on the
front of this guide are included
in the box.
2. READ SAFETY INSTRUCTION
BOOKLET BEFORE USING THE
PRODUCT.
3. Study this setup diagram.
4. Place mixer in an appropriate
position for operation.
5. Make sure all devices are turned
off and all faders and gain knobs
are set to “zero”
6. Connect all stereo input sources
as indicated in the diagram.
7. Connect the stereo outputs to
power amplifier(s), tape decks,
and/or other audio sources.
8. Plug all devices into AC power.
9. Switch everything on in the
following order.
• audio input sources (i.e.
turntables or CD players)
• mixer
• last, any amplifiers or
output devices
10. When turning off, always
reverse this operation by,
• turning off amplifiers
• mixer
• last, any input devices
11. Go to http://www.numark.com
for product registration.
More information about this
product may be found at
http://www.numark.com

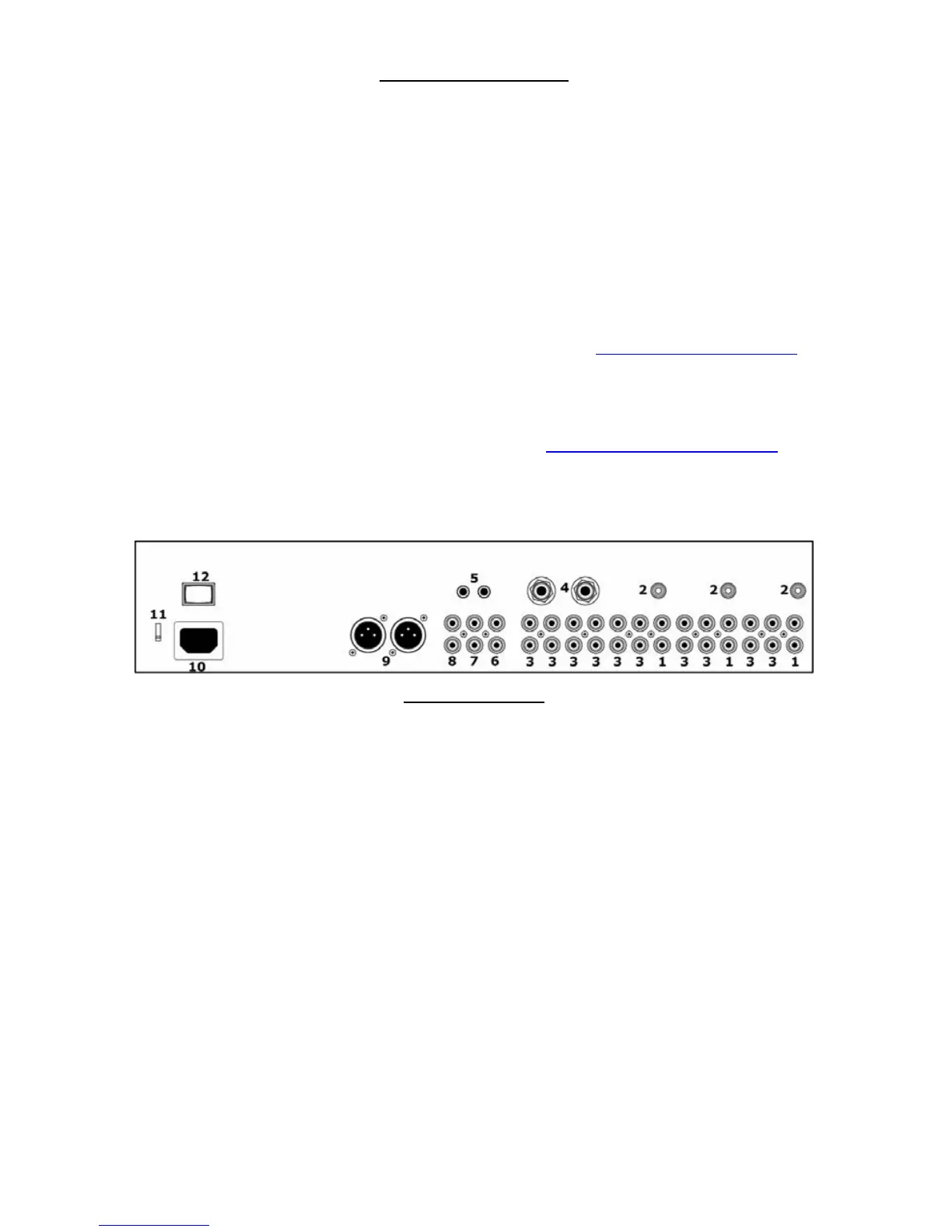

REAR CONNECTIONS
1. Phono Inputs: This input is used for connecting
your turntables through the sensitive RIAA phono
preamplifiers. Only turntables with phono level
output should be attached. Line level turntables
must be attached to the line inputs.
2. GND: This screw connector should be used to
secure any turntables or other devices connected
to the mixer that need to be grounded.
3. Line Inputs: CD players, Tape Decks, Samplers
or other line level input devices should be
connected to these inputs.
4. Microphone Input: Microphones with a ¼”
connector can be connected to these input
terminals.
5. Fader Start Connector: to attach your mixer to
a remote start equipped Numark CD player using
industry standard 1/8”(3.5mm) cables.
6. Record Output: This RCA output is for
connecting a recording device such as a tape
deck or CD recorder. The level of the record
output is based upon pre-master levels.
7. Zone Output (RCA): This output is for
connecting an external monitoring device such as
a PA system, powered monitors or a home
stereo. The level of the zone stereo output signal
is controlled by the zone fader.
8. Master Output (RCA): This output is for
connecting an external monitoring device such as
a PA system, powered monitors or a home
stereo. The level of the master stereo output
signal is controlled by the master fader.
9. Stereo Balanced Master Outputs (XLR): low-
impedance XLR type connectors controlled by the
Master fader.
10. AC In: This mixer is designed to work with the
power supply cord that comes with the unit.
While the power is switched off, plug the power
supply into the mixer first, then plug it into the
outlet.
11. Voltage Selector: Set this to the correct voltage
for your location standard.
12. Power Switch: Use this switch to turn on the
mixer after all input devices are already
connected to prevent damage to your equipment.
Turn the mixer on before you turn on amplifiers
and turn of amplifiers before you turn off the
mixer.
