TT1700

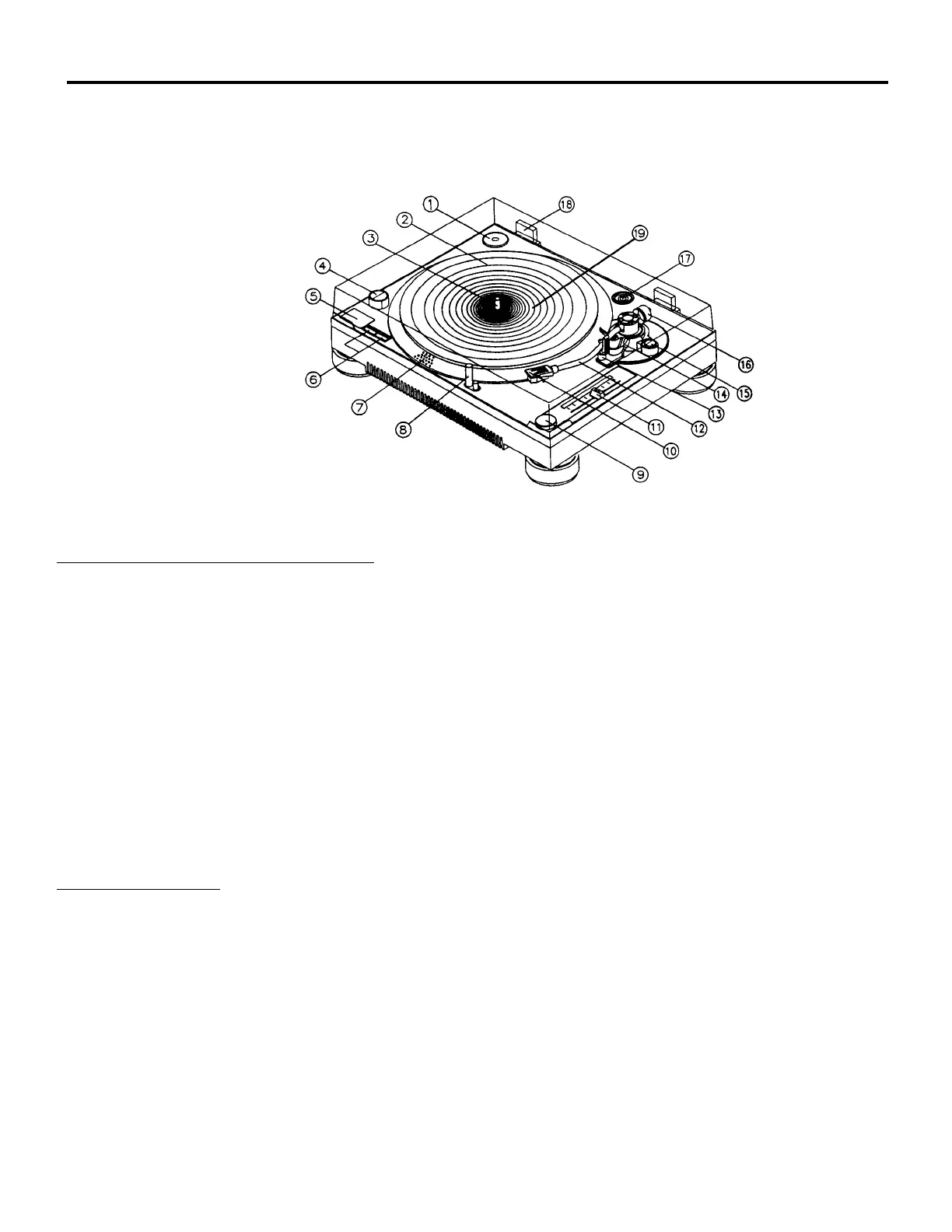

TT1700 DIAGRAM...
PARTS DESCRIPTION
(1) 45-rpm Adaptor
(2) Anti-static slip mat
(3) Center Spindle
(4) Stroboscope
(5) Start/Stop Button
(6) Speed Select Button
(7) Strobe Dots
(8) Target light
(9) Power Button
(10) Headshell
(11) Pitch Control Slider
(12) Tonearm
(13) Arm Rest
(14) Cueing Lever
(15) Anti-skating Knob
(16) Counterweight
(17) Position For Preparing Cartridge
(18) Hinge For Dust Cover
(19) Belt Drive Spindle
ASSEMBLY
1. Remove the main unit with the packing from the box and take off the packing material.
DO NOT DISCARD ANY PACKING MATERIAL. The headshell, counterweight, and other parts are contained
within the packing material.
2. Set the 45-rpm adaptor on the main unit.
3. Set the voltage selector switch to the 110-127 or 220-240V position according to the voltage of power supply. (This
unit has been preset for 110-127V AC).
