CABLE SETUP PAGE 8
CONTROLS continued

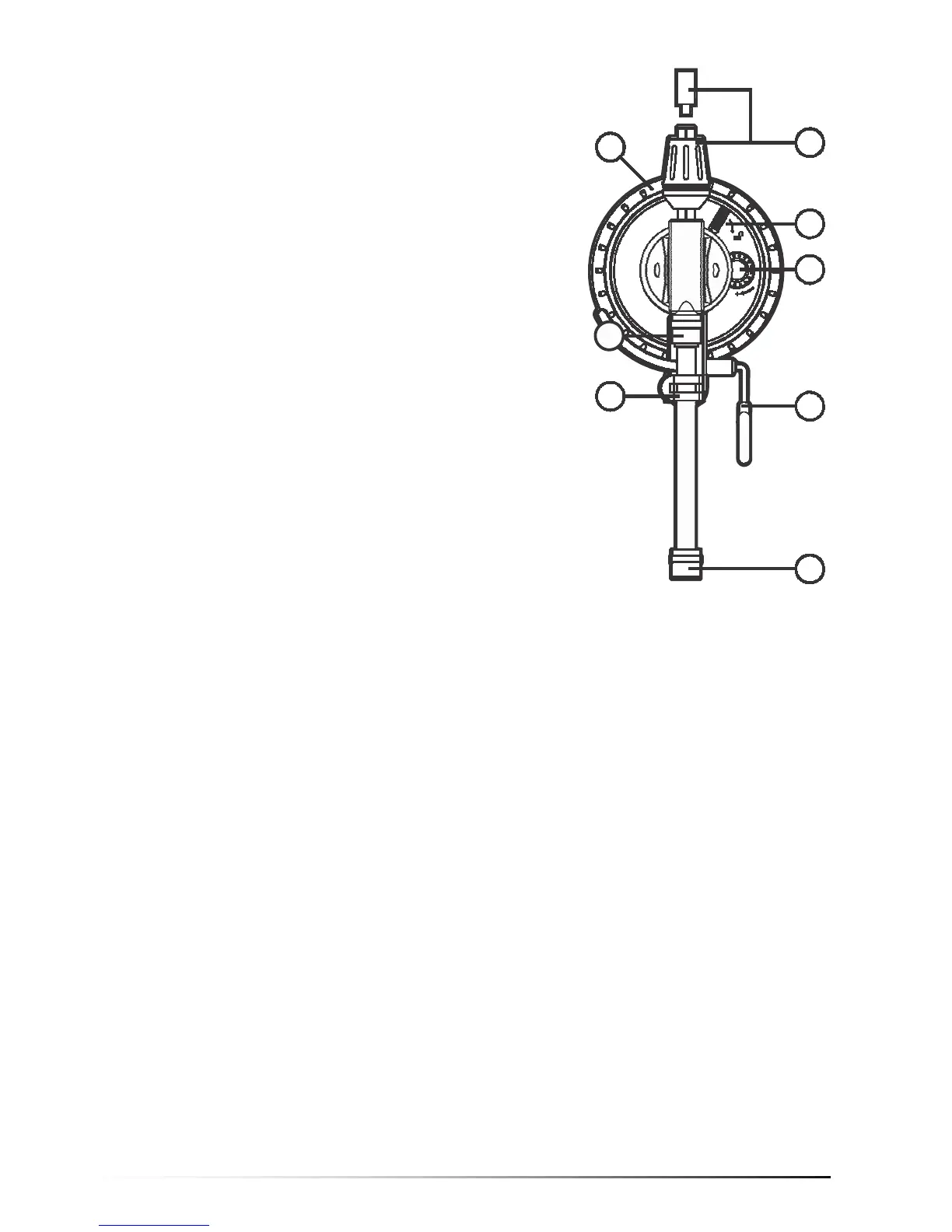

Tone Arm Parts
10. Counterweight and Scale Ring and S-Weight
11
10
The Counterweight is used to balance the head shell and
cartridge assembly so that the proper amount of stylus
pressure is applied to the record. The S-Weight (sold
seperately with S-arm tube) should be used in most cases
12
when the S-Shaped tube is used. It is fastened to the
tonearm by threading it into the rear weight balance shaft.
The S-weight can be stored below the counterweight in the
13
top cabinet while not in use.
11. Height Adjust Ring
Turning this ring counter-clockwise raises the tonearm up to
14
6mm to accommodate for different Slipmat thicknesses.
This ring can not be adjusted unless the Height Lock Lever
(12) is unlocked.
15
12. Height Lock Lever
16
Turning this lever towards the direction of the arrow
(clockwise) unlocks the Height Adjust Ring (11) so that the
tonearm height can be adjusted.
13. Anti-Skate Adjustment
This knob is used to compensate for inward tracking forces.
See tonearm setup for more details on its settings.
14. Secondary Tube Lock Collar
This collar is used to secure the tonearm tubes (straight or
17
s-shaped) to the tonearm assembly.
WARNING:
DO NOT OVERTIGHTEN THIS LOCK COLLAR!
WARNING:
CONNECTING HEADSHELLS TO THIS COLLAR MAY DAMAGE
THE INTERNAL PIN HEIGHTS OF THE CONTACTS! ONLY
CONNECT NUMARK TUBES TO THE SECONDARY TUBE LOCK
COLLAR.
15. Arm Clip
This specially designed arm clip secures the tone arm while
it is being transported or not in use. The arm clip has been
designed to remain in the up position while unlocked.
16. Tonearm Cue System
This cueing system allows the tone arm to be positioned at
a certain point above the record and slowly engaged. When
the lift lever is in the up position the tone arm should rest
on the armrest. When the lift lever is lowered, the tone arm
is slowly lowered until the stylus is resting on the record.
17. Tone Arm Lock Nut
This Aluminum nut is used to secure the head shell and
cartridge assembly to the tone arm tube. See cartridge
setup for more details.
