CABLE SETUP
This turntable is shipped with two sets of special cables:
(1) Right Angle IEC Power Cord
(1) Right Angle RCA cord
NOTE: Before connecting any cables, make sure that the voltage selector switch is set to the proper setting!

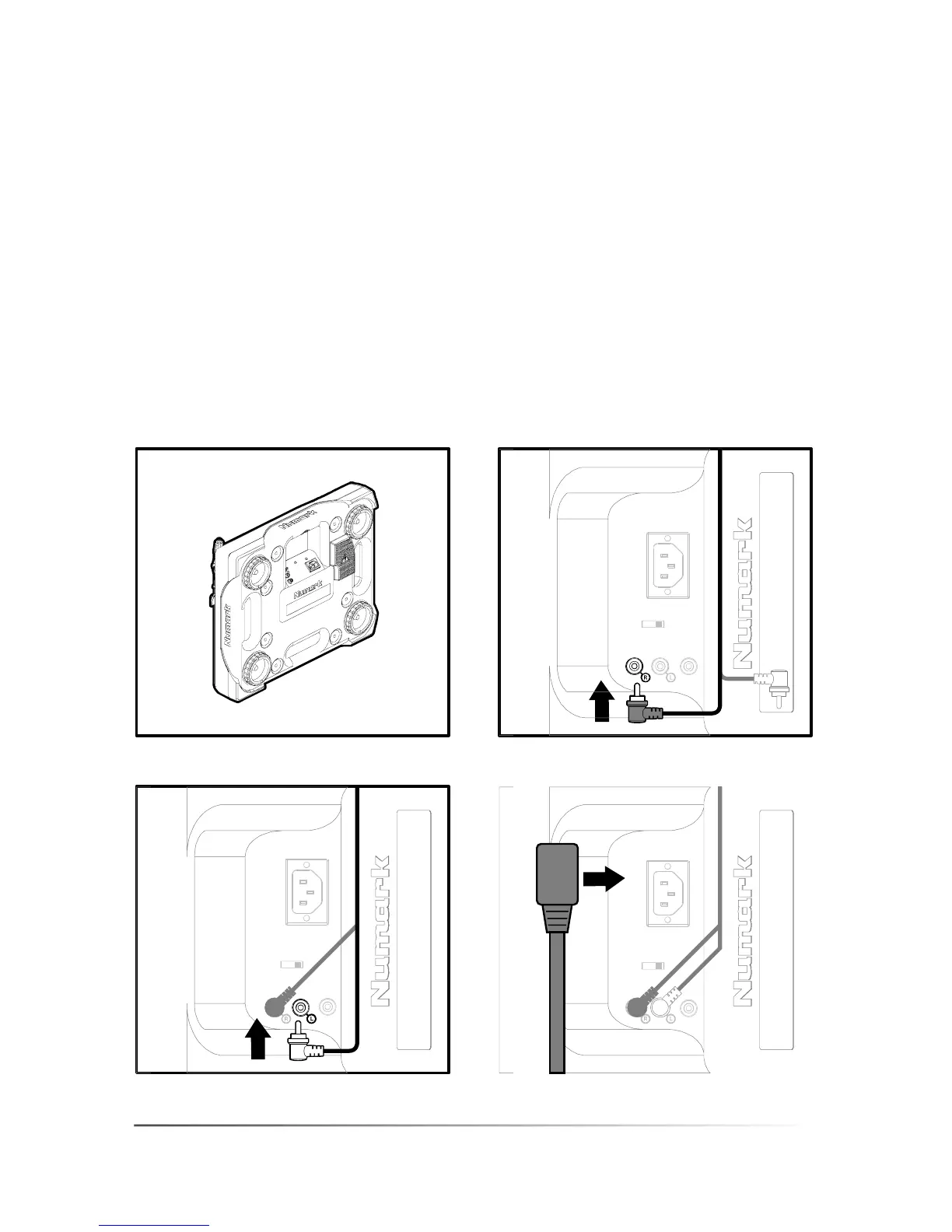

Making the power and audio connections:
1. Begin by lifting the turntable up from the rear handle and resting it on its side. (NOTE: The turntable must
be supported because it is not stable in this position!)
2. Next connect the Red Right Angle RCA Plug to the Red RCA jack with the "R" indication.
3. Then connect the White Right Angle RCA Plug to the White RCA jack with the "L" indication.
4. Finally connect the IEC power cord to the IEC Power terminal. It should only fit in the Terminal one way.
5. Rest the turntable back down on a level surface and route the cables to nearby power and audio accessories.
1. 2.
3. 4.
CABLE SETUPPAGE 7
