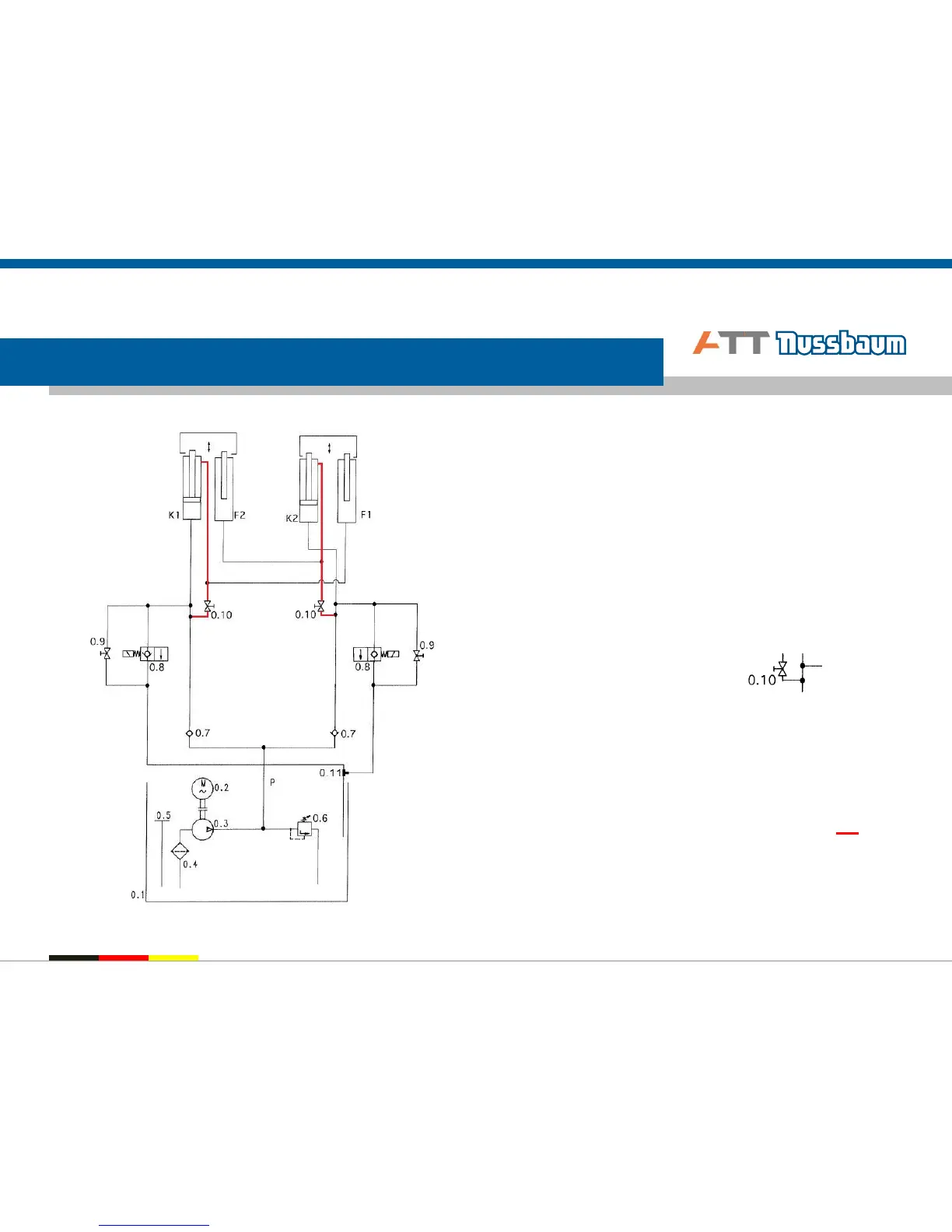

Hydraulic diagram
• To release air in the Nussbaum NT system and
to equalize the platforms, it is important to fill
the complete hydraulic system with oil.
• The slave cylinder can be filled by opening the
adjustment screws on the hydraulic block. This
allows you to simultaneously fill the master and
slave cylinder.
• The adjustment screws are 0.10 on the
hydraulic diagram.
• This adjustment screws must be closed during
normal operation.
• The “slave flow-line" is marked in red.
