TWO POST SPL10000
Nussbaum Automotive Solutions, LP | 1932 Jordache Court, Gastonia, NC 28052 | 704.864.2470 | Email: info@nussbaum-usa.com | us.nussbaumlifts.com
17

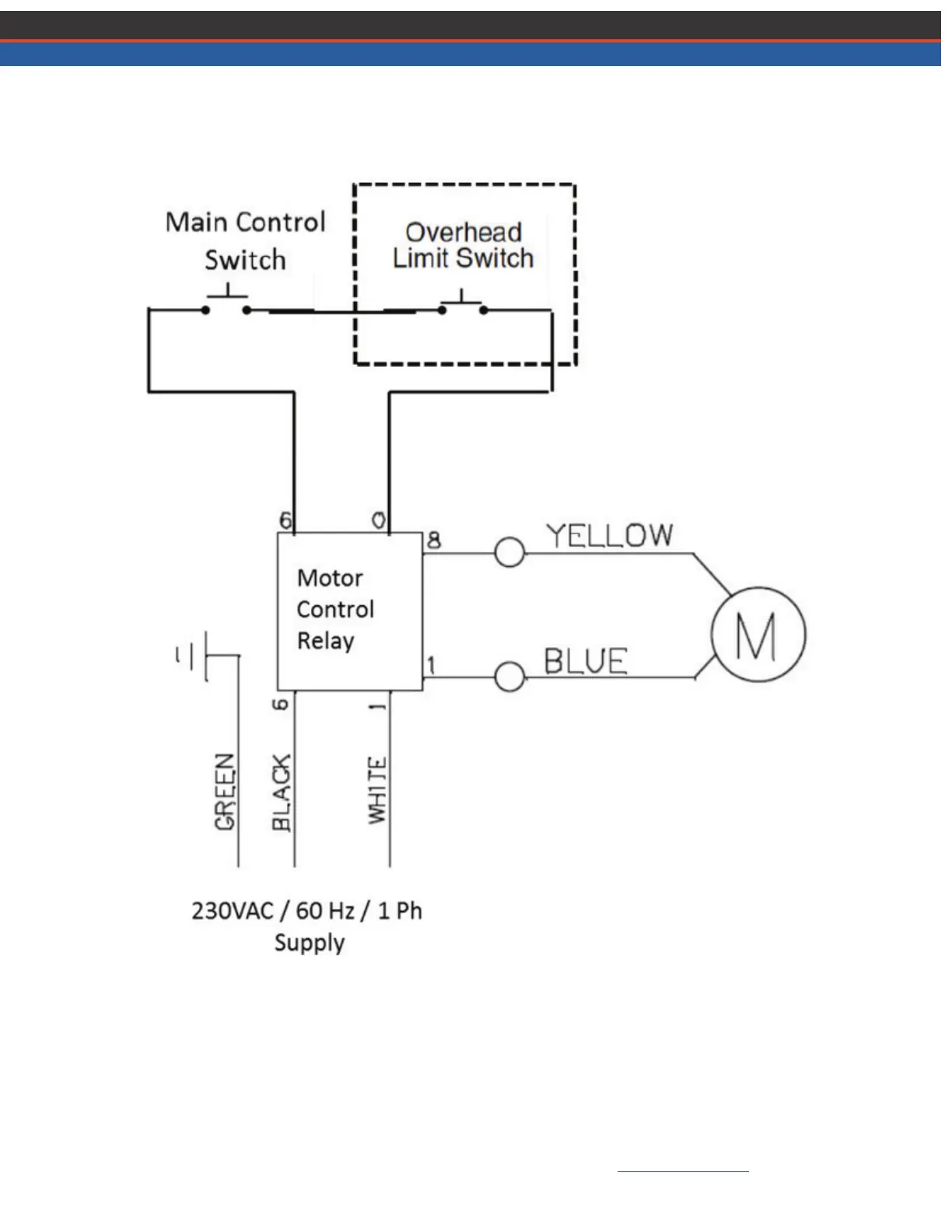

ELECTRIC PLAN
1. Open control panel cover
2. Unplug wire connector on terminal 0 of motor control relay
3. Connect male connector from overhead limit switch to female connector on unplugged wire
4. Connect female connector from overhead limit switch to terminal 0 of motor control relay
5.Connect supply power to the connections as shown
To Next Page
