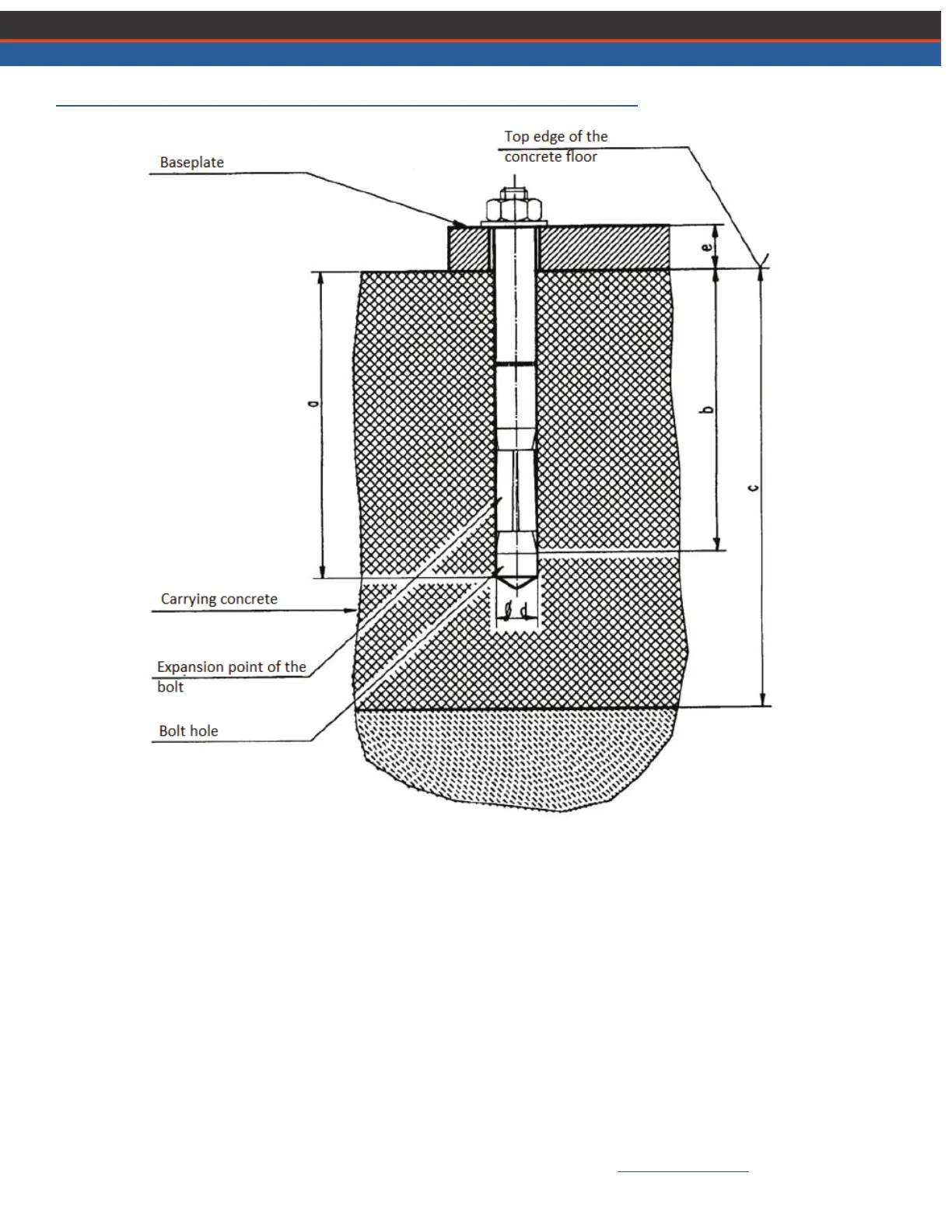

CHOICE OF THE ANCHOR BOLT LENGTH WITH FLOOR PAVEMENT OR TILE SURFACE
Dowel type
B20/100
B20/125
B20/135
B20/175
Drilling depth
a
140
165
175
215
Min. Anchorage depth
b
85
85
85
85
Thickness of concrete
c
180
180
180
180
Diameter of bore
d
20
20
20
20
Thickness of the lift-pieces
e+f
40-65
65-90
90-100
100-140
Number of dowels
8(12*)
8(12*)
8(12*)
8(12*)
Starting torque
According to the dowel manufacturer
*12 piece with a concrete strength of 150mm
