Operating Instruction and Documentation

Sprinter Mobil 3000

- 15 -

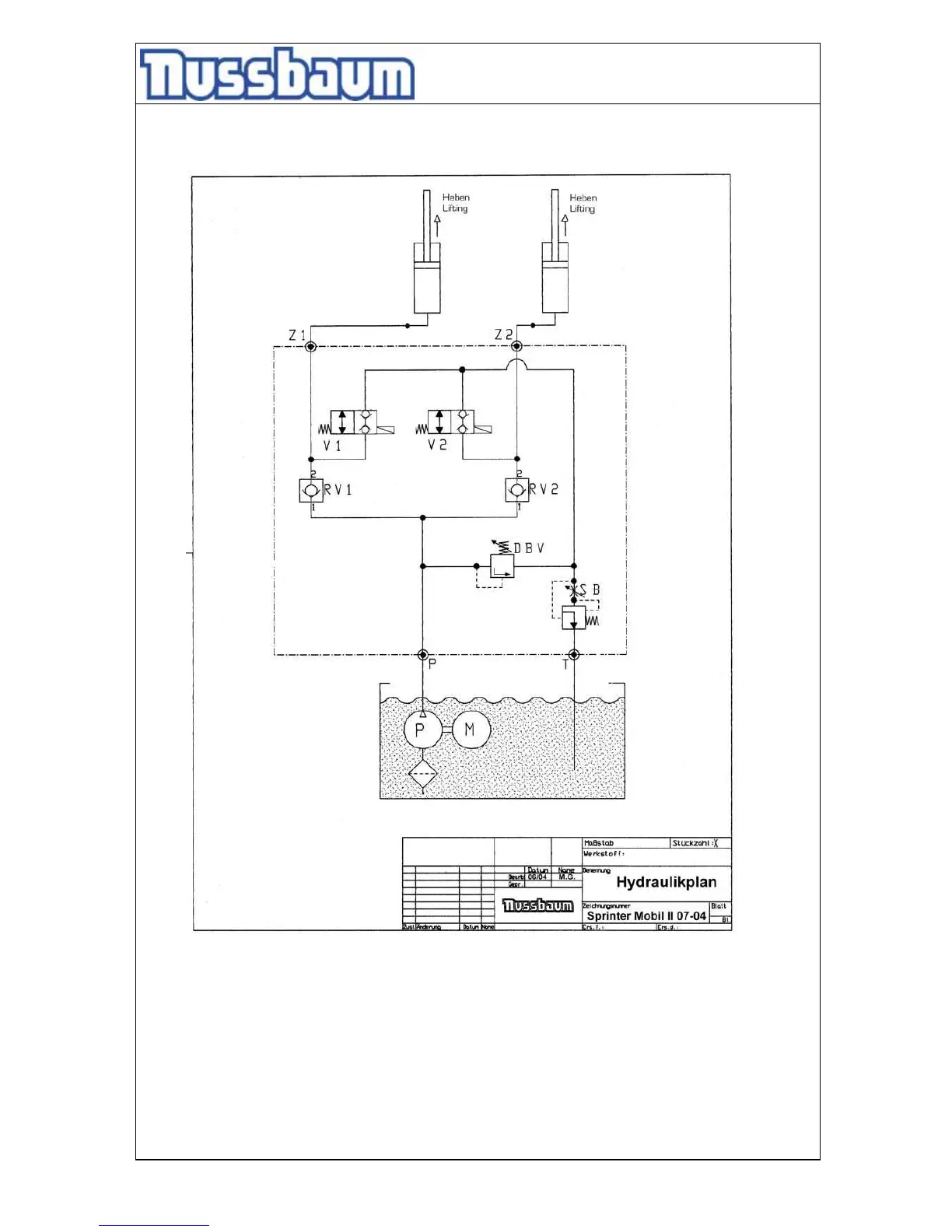

3.3 Hydraulic diagram drawing

0.1 oil filter 980012

0.2 sub oil motor 1,5 kW 991333

0.3 gear pump 4,3 cm³ 160554

0.4 hydraulic block 232HL01051

DBV pressure control valve 232NSTL02082

RV1 holding valve 980480

RV2 holding valve 980480

V1 hand valve 158561

V2 hand valve 158561

SB lowering valve 981063

1.0 Cylinder 025SPB22101

hydraulic lines 025SPB44000 complete
