MODEL 349BR
Page 2

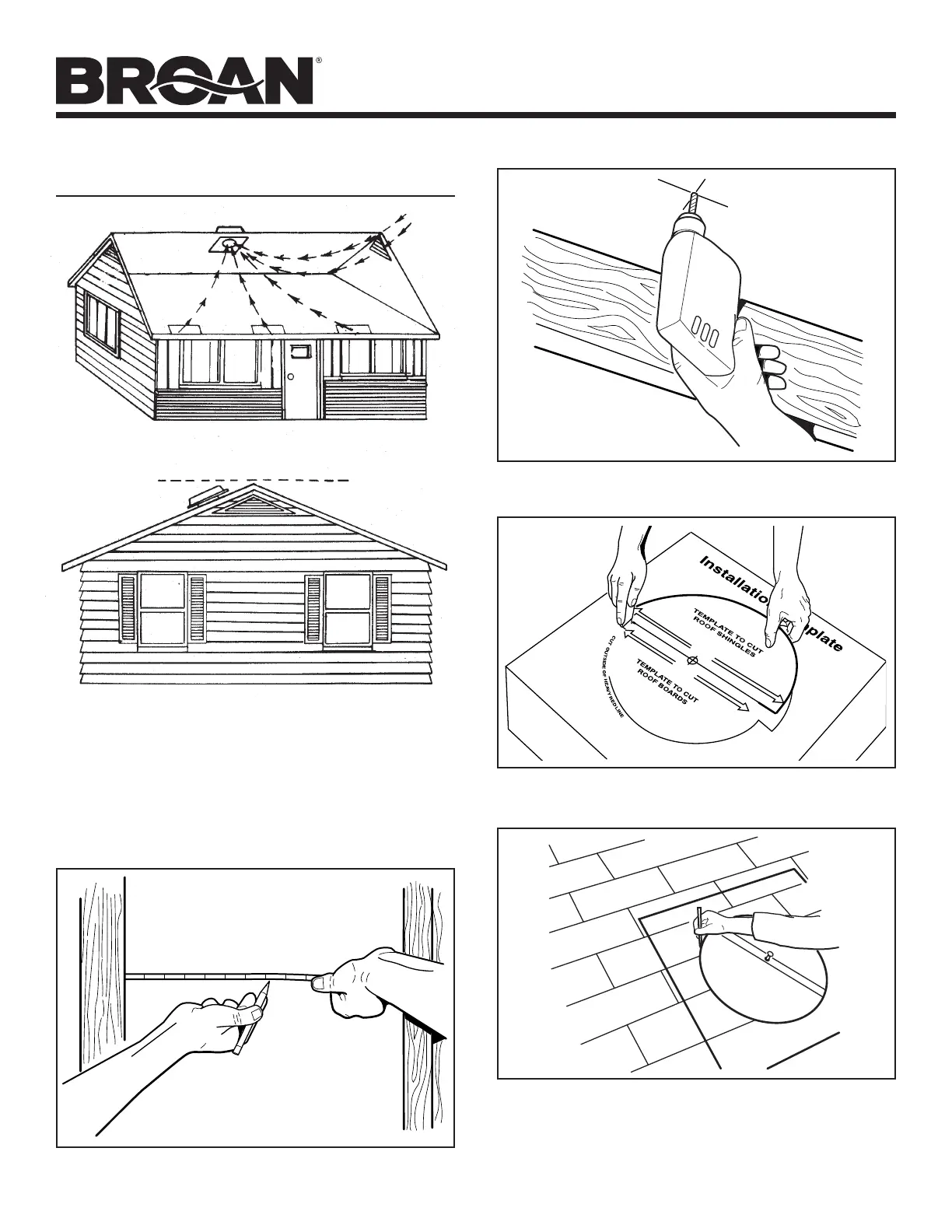

1. Locate the ventilator at the center of the rear slope of
the roof. Place it as high on the roof as possible. The
location should be free of obstacles (T.V. leads, electrical
lines, etc.) If the ventilator top is level with the roof peak,
itcan'tbeseenfromthestreet.Keepthisapproximate
location in mind as you work from within the attic.
2. Mark a spot halfway between rafters.
3. Drill a guide hole through the roof at this mark.
4. Cut out the template found on the carton.
5. Push a large nail through the center of the cardboard
template and into the guide hole.
Using the large half of the template, draw a 17
3
/8" diam-
eter circle on the shingles.
6
1
2
3
4
5
7
8
9
17
3
/
8
14
7
/
8
INSTALLATION
