INSTALLATION AND USE & CARE INSTRUCTIONS
INSTALLATION
6

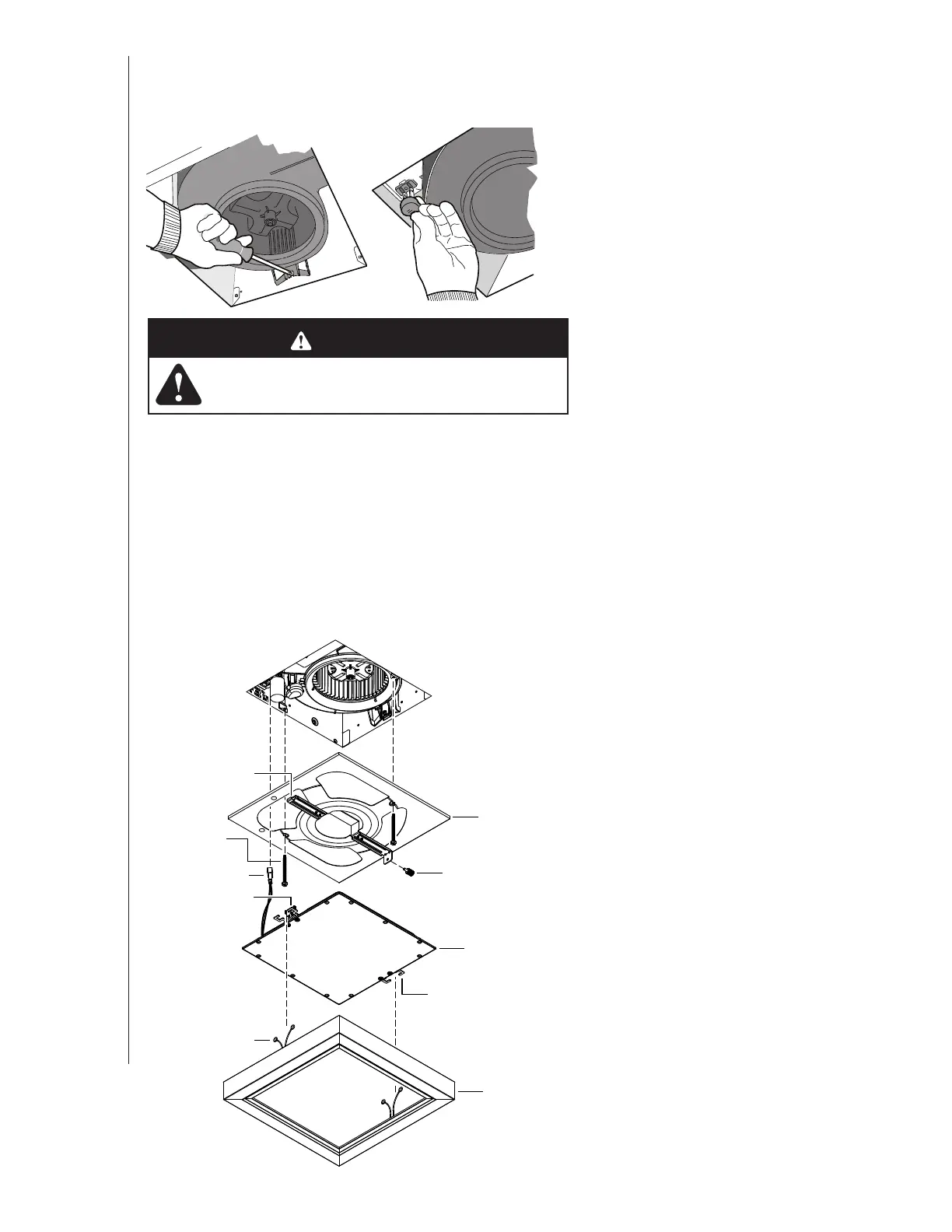

10. Finish ceiling, then install grille.
Attach MOUNTING PLATE to housing with (2) SCREWS, using the
GRILLE BRACKETS installed in step 4.
Connect LIGHT PANEL PLUG to receptacle in corner of housing.
Place LIGHT PANEL SLOT over HOOK on MOUNTING PLATE.
Swing opposite side of LIGHT PANEL up to MOUNTING PLATE and
secure with ATTACHMENT SCREW.
Line up GRILLE FRAME with (3) LIGHT PANEL OPENINGS and
rotate GRILLE FRAME clockwise to secure it to LIGHT PANEL.
9. Install blower.
Re-install blower. Secure blower with (2) screws from parts bag and
plug blower into black receptacle.
CAUTION
• Make sure that the wiring inside of the housing
does not interfere with re-installation of the blower.
MOUNTING
PLATE
LIGHT
PANEL
GRILLE
FRAME
ATTACHMENT
SCREW
MOUNTING
PLATE
ATTACHMENT
SCREW (2)
LIGHT PANEL PLUG
HOOK
SLOT
GRILLE
SPRINGS (2)
GRILLE SPRING
TABS (2)
To Next Page
