INSTALLATION
8

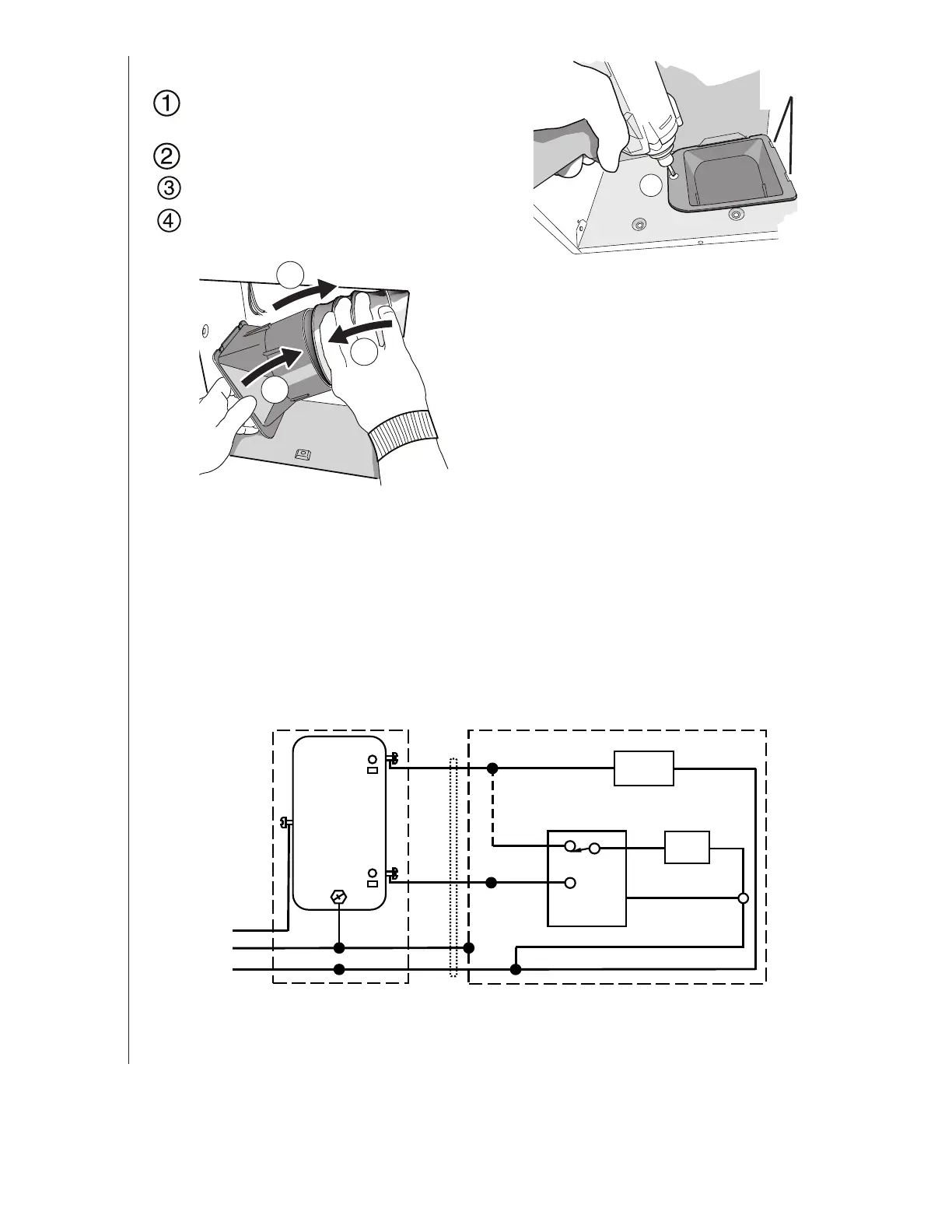

9. Connect 4-in. round duct.
Pull existing ducting through housing discharge
opening.
Attach and tape ducting to duct connector.
Push connector/ducting back through opening.
Engage tabs and secure with screw from parts
bag.
Install blower. Finish ceiling, then
install grille.
See Steps 9 & 10 on Page 6.
1
2
3
4
TABS
WIRING DIAGRAMS
WIRING OPTION #1
• When first switch (1) is ON, fan will operate automatically, based on room humidity conditions.
• Turn fan ON immediately for the set timer period (to control odors), by cycling first switch.
• Use second switch (2) to turn light ON/OFF.
• With optional connection shown, fan will always be ON when light is ON.
BLK
HUMIDITY
CONTROL
LIGHT
FAN
GREY
BRN
BLK
RED
BLK
BLK
WHT
WHT
WHTWHT
WHT
GRD
GRD
LIGHT
(ON/OFF)
FAN
(AUTO/OFF)
120
VAC
LINE
IN
COM
2-FUNCTION CONTROL
(PURCHASE SEPARATELY)
WHT
GRD
SWITCH UNIT
(Optional)
(1)
(2)
