NuTone CST80SLW User Manual

INSTALLATION AND USE & CARE INSTRUCTIONS
INSTALLATION
9

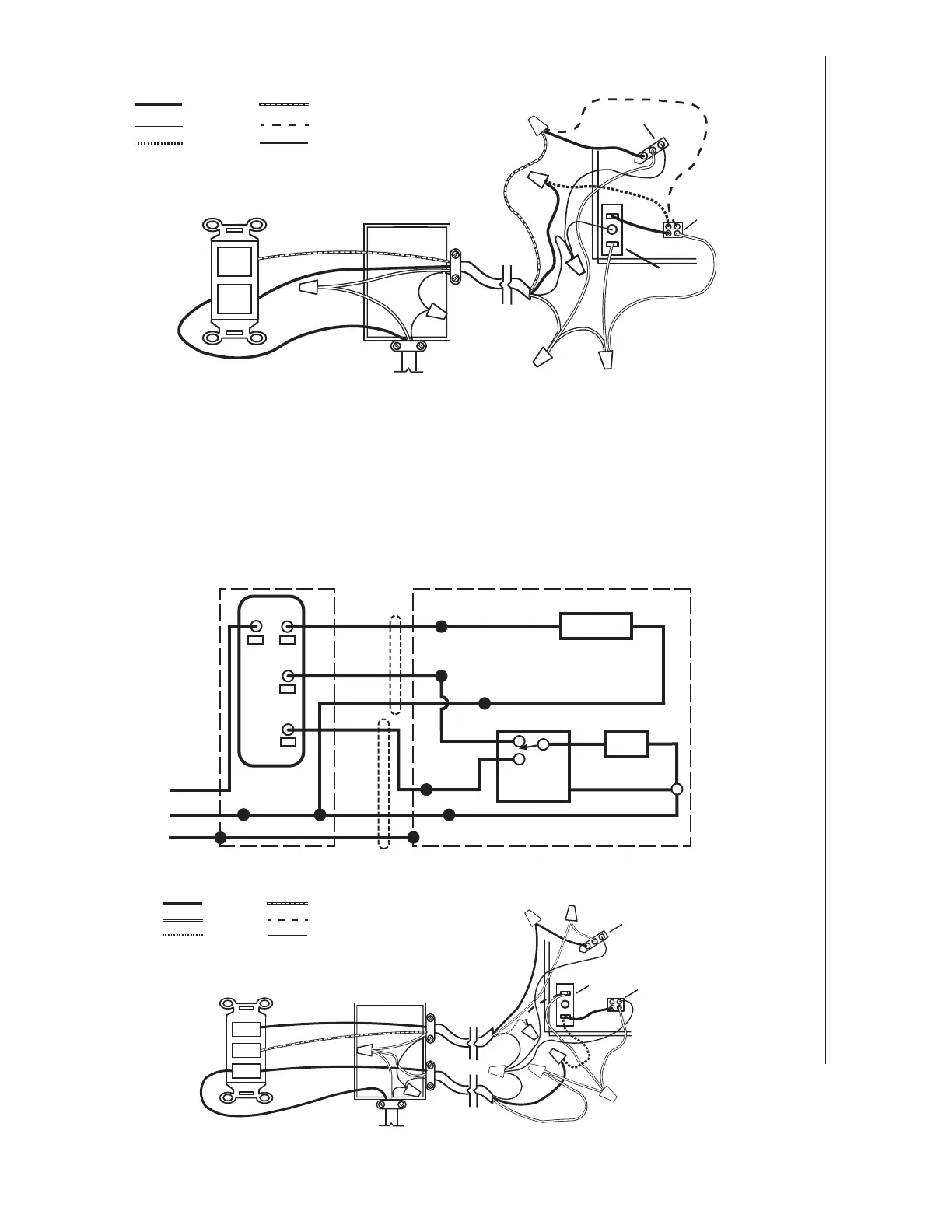

WIRING OPTION #2
• When first switch (1) is ON, fan will operate automatically based on room humidity conditions.
• Turn fan ON immediately (to control odors) by using second switch (2).
• Use third switch (3) to turn light ON/OFF.
3-FUNCTION CONTROL
(PURCHASE SEPARATELY)
LIGHT
(ON/OFF)
COM
FAN
(ON/OFF)
FAN AUTO
(AUTO/OFF)
120
VAC
LINE
IN
SWITCH
WHT
GRD
BLK
BLK
WHT
UNIT
BLK
WHT
GRD
BLK
RED
LIGHT
WHT
WHT
BLK
WHT
BRN
HUMIDITY
CONTROL
FAN
WHT
(1)
(2)
(3)
GREY
SWITCH
BLACK
WHITE
RED
GROUND (green or bare)
Do not use a
speed control.
(purchase separately)
BROWN
LIGHT
RECEPTACLE
120 VAC
LINE IN
SWITCH BOX
FAN
RECEPTACLE
GREY
LIGHT
ON/OFF
FAN
Auto/OFF
optional
HUMIDITY SENSOR
RECEPTACL
E
SWITCH
BLACK
WHITE
RED
GROUND (green or bare)
Do not use a
speed control.
(purchase separately)
BROWN
LIGHT
RECEPTACLE
120 VAC
LINE IN
SWITCH BOX
FAN
RECEPTACLE
GREY
LIGHT
ON/OFF
FAN Auto
Auto/OFF
FAN
ON/OFF
HUMIDITY SENSOR
RECEPTACLE
