NuTone LPN80 - Step 2: Install in Wall or Ceiling; Step 3: Install Ducting

LPN80
n
Installation Guide
Page 4
Installation
2

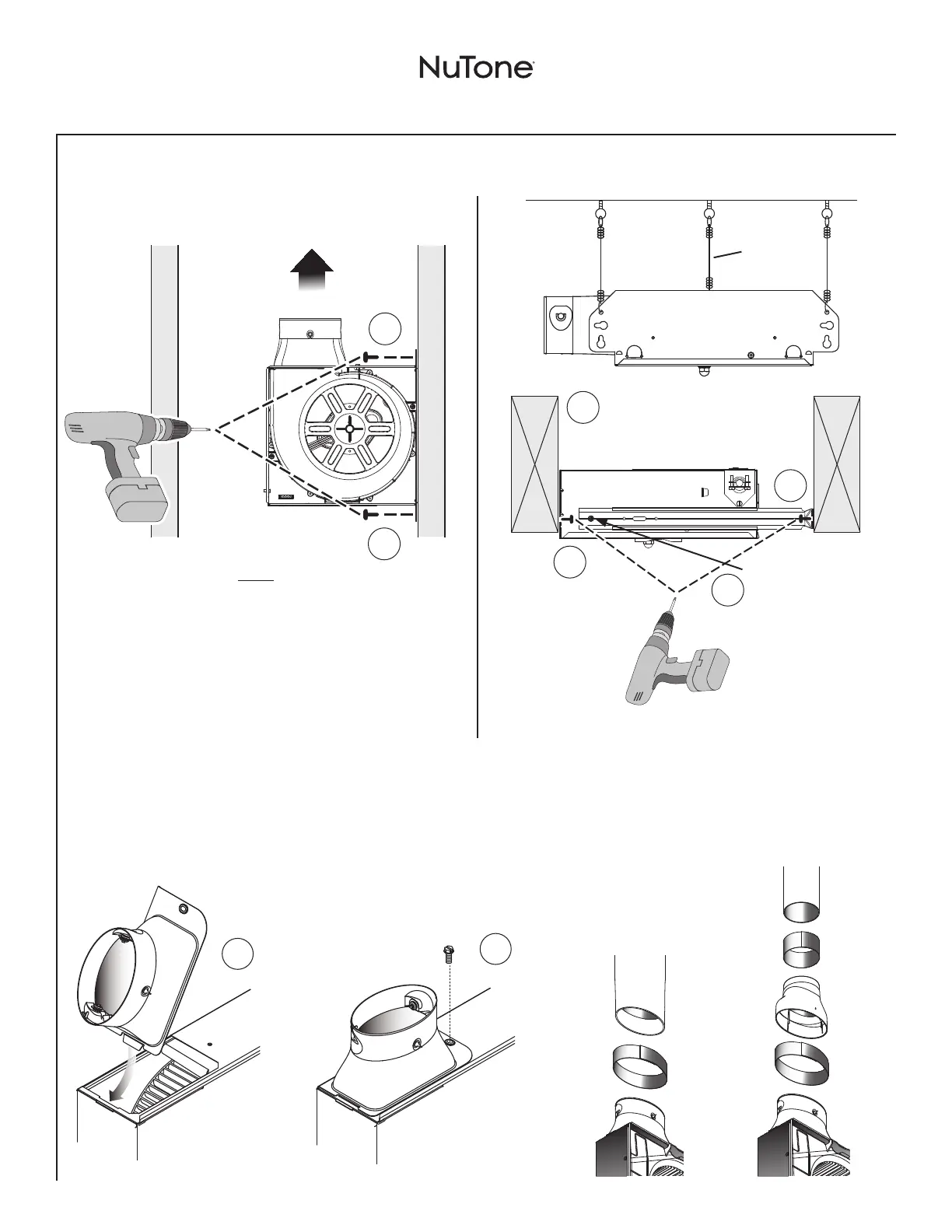

Install in Wall or Ceiling
UP
Wall
- OR -
Wire
(3 places)
Screw
through housing
on opposite side
Tighten Screw into
housing to secure
mounting
1
2
3
2
1
4
3
Install Ducting
1
2
Insert tab into slot
in housing.
1
2
- OR -
4"to3"
Reducer
(provided)
Tape
4"Ducting
3"Ducting
Tape
Tape
