Installation Guide
Page 5
Installation
4

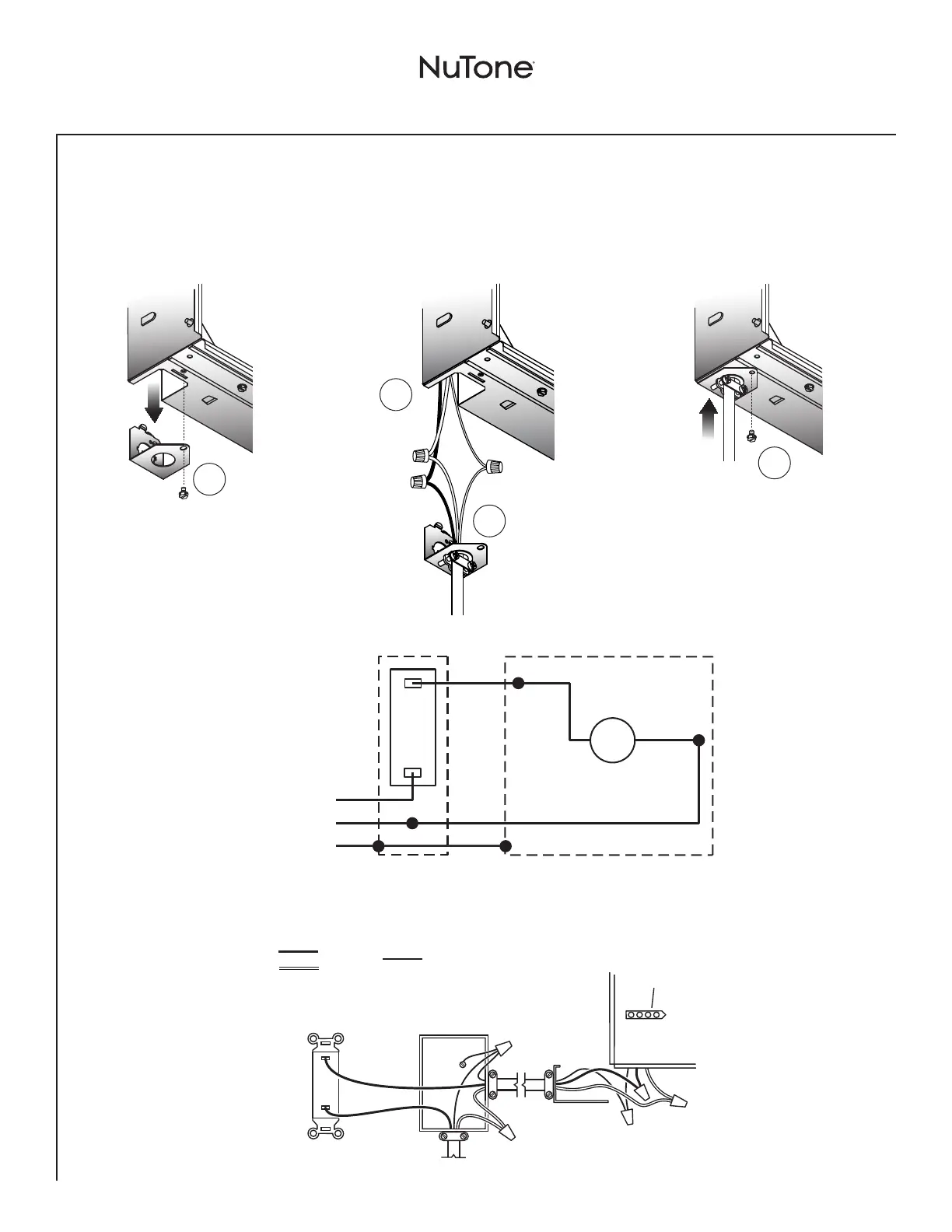

Connect Wires
• Run120VACelectricalwiringtotheinstallationlocation
• UseproperUL-approvedconnectorstosecurewiringtotheKnockoutPlate
• Connectwiresasshowninwiringdiagram
Attach cable
clamp to Knockout
Plate. Knockout
Plate may be
oriented as
desired.
Connect
wires
120 VAC
LINE IN
GRD
WHT
BLK
GRD
WHT
BLK BLK
WHT
UNITSWITCH BOX
ON/OFF
SWITCH
M
ON/OFF
SWITCH
(purchase separately)
KNOCKOUT
PLATE
RECEPTACLE
120 VAC LINE IN
SWITCH BOX
BLACK
WHITE
GROUND (green or bare)
3
2
1
4
