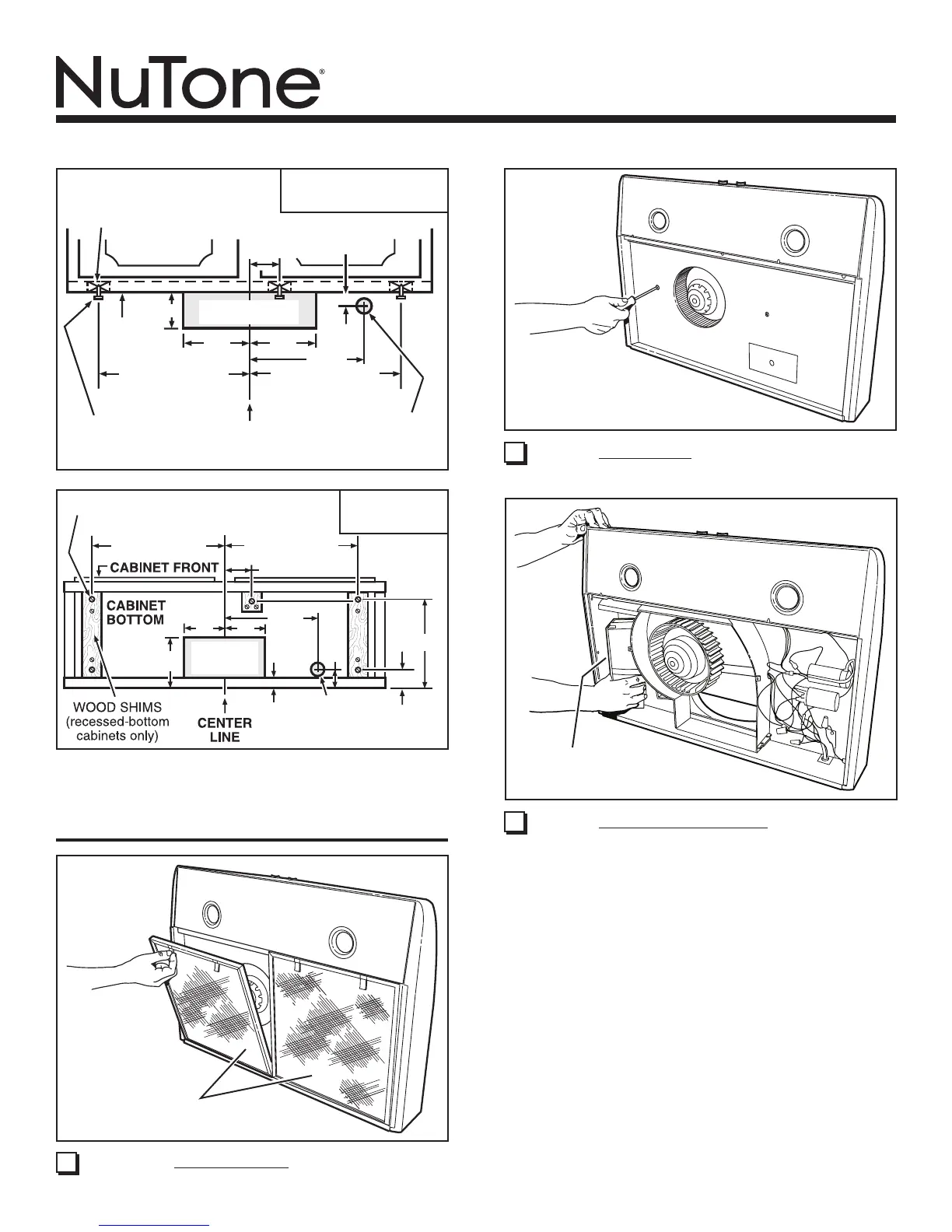

NuTone NS Series User Manual

MODELS NS130BL • NS130SS • NS130WW
NS136BL • NS136SS • NS136WW
Page 3
3¼” X 10”
HORIZONTAL DUCTING
CABINET
BOTTOM
CABINET FRONT
HORIZONTAL DUCT
ACCESS HOLE
5¼"
5¼"
3
/
4"
HOOD
MOUNTING
SCREWS (5)
ELECTRICAL
ACCESS HOLE
(in wall)
3½"
CENTER
LINE
WOOD SHIMS
(recessed-bottom
cabinets only)
15¼" (36" hood)
12¼"
(30" hood)
15¼" (36" hood)
12¼" (30" hood)
2
3
/
8
"
*
10
7
/
8"
ELECTRICAL
ACCESS HOLE
(in cabinet bottom)
15¼" (36" hood)
1
7
/
8"
15¼" (36" hood)
12¼" (30" hood)
12¼" (30" hood)
10
7
/
8"
2
3
/
8"
*
10
3
/
4"
1
7
/
8"
HOOD MOUNTING SCREWS (5)
7-IN. ROUND
DUCT ACCESS
HOLE
**
3
/
4"
7
3
/
4"
5" 5"
7-IN. ROUND
DUCTING
PREPARE THE HOOD
4 Remove Bottom Cover held in place with ve (5)
screws.
5 Remove Damper / Duct Connector and parts bag from
inside the hood.
FOR DUCTED INSTALLATIONS - Skip to Step 10.
DAMPER /
DUCT CONNECTOR
↑
↑
↑
↑
↑
↑
ALUMINUM
FILTERS
3 Remove the Aluminum Filters from the hood.
↑
(2)
LIFT
OUT
(1)
PULL
DOWN
**
Note that the 7-in. round duct will need to be squeezed into an
oval shape to connect to the 7-in. oval duct plate on the hood.
