6. Upper Hinge
7. Door Gasket
8. Glass Door
9. Door Handle
10. Bottom Hinge
1. Cabinet
2. Fan
3. Fan Cover
4. Shelves
5. Foot
www.NutriChefKitchen.com
7

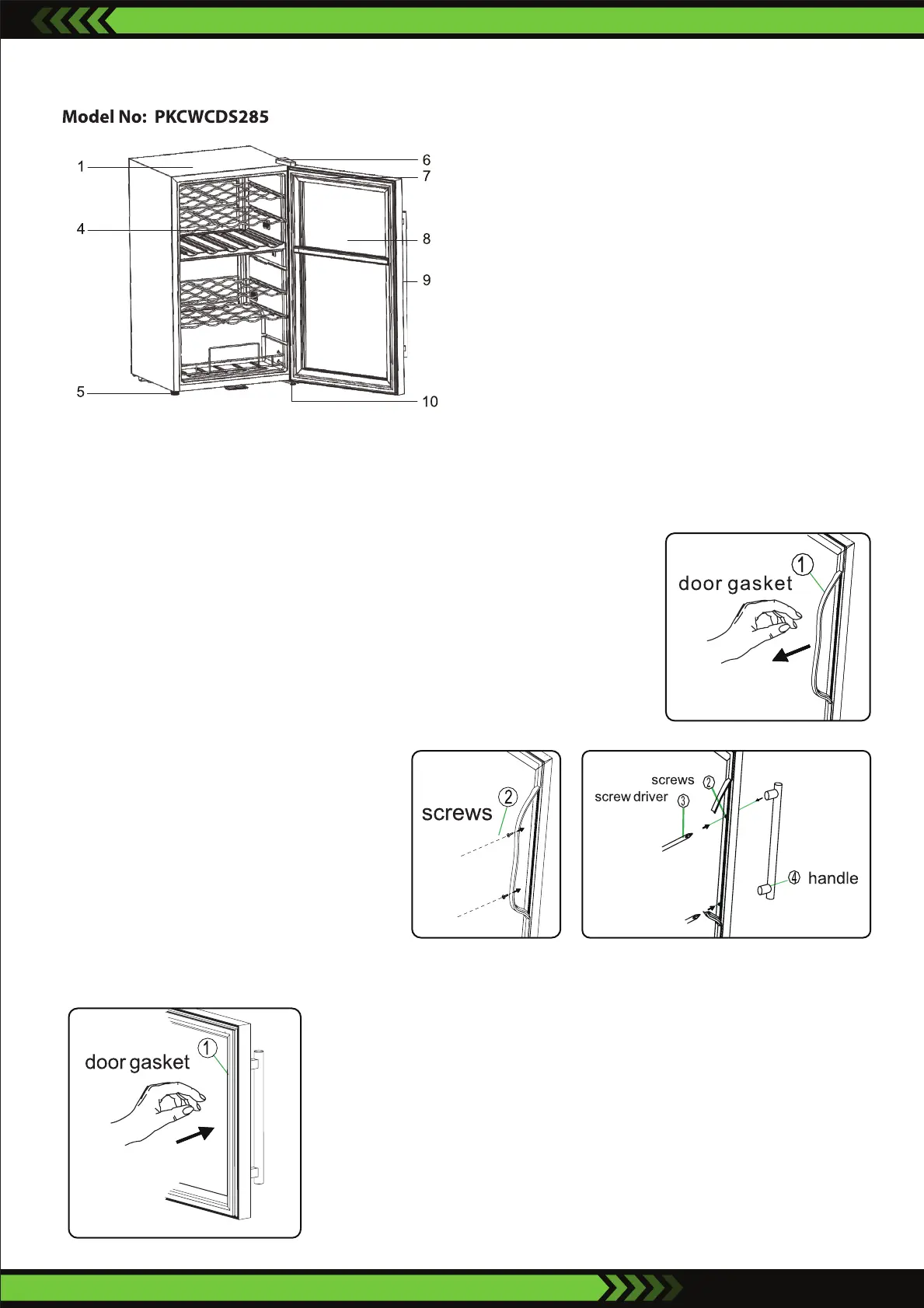

II. PARTS DIAGRAM
INSTALLING THE STAINLESS STEEL HANDLE
For PKCWC12 and PKCWC15 Models only
This wine cellar includes a stainless steel handle. To install the handle please follow the below instructions:
3. Replace the door gasket to its original position.
1. Pull away the door gasket in the area where the handle is to be installed
on the left side as shown below in illustration #1.
The gasket can easily displaced by hand, no tools are necessary.
2. Align the handle with the screws installed.
Tighten the screws using a Phillips head
screwdriver until the handle sets both
ush and secured tightly against the door
frame. (DO NOT over tighten as this will
cause damage to the handle assembly).
1. Gasket
2. Phillips Head Screw Driver
3. Phillips Head Screw
4. Handle
