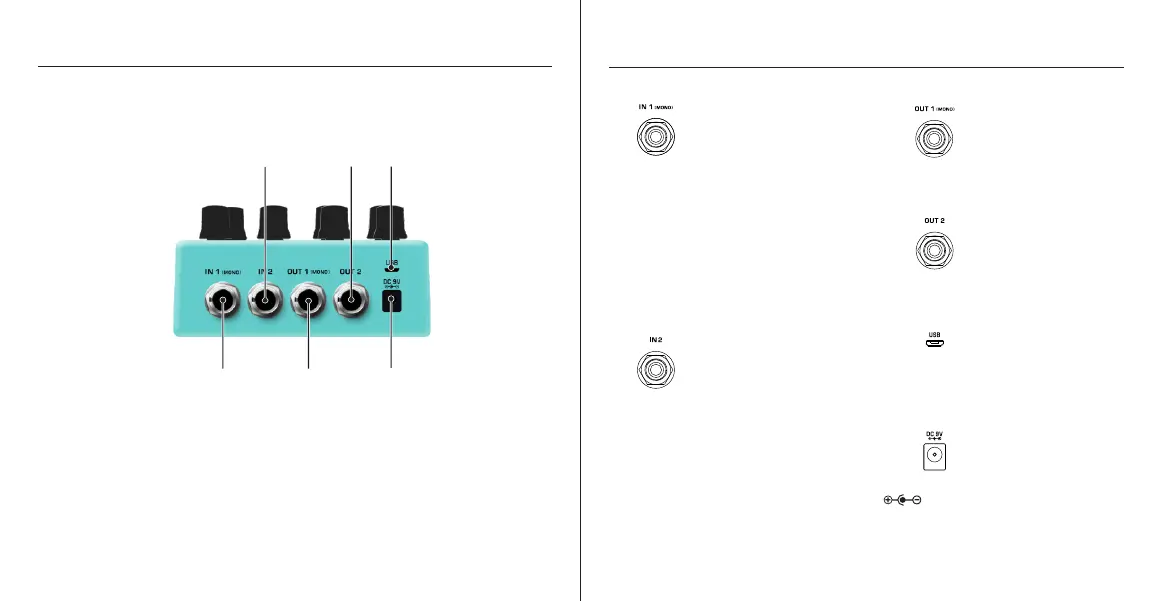

IN 1 (MONO)
OUT 1 (MONO)
DC jack
IN 2
OUT 2
USB port
I/O JacksI/O Jacks
IN 1 (MONO)
If you only connect with IN 1, then IN 1 signal
will run DELAY 1 related to TIME 1 and
REPEAT 1 knobs for OUT 1. Pedal will copy IN
1 signal to run DELAY 2 related to TIME 2 and
REPEAT 2 knobs for OUT 2.
If you connect with IN 1 and IN 2, then IN 1
and IN 2 will run DELAY 1 for OUT 1 and
DELAY 2 for OUT 2 separately.
IN 2
If you only connect with IN 2, then IN 2 signal
will run DELAY 2 related to TIME 2 and
REPEAT 2 knobs for OUT 2. Pedal will copy IN
2 signal to run DELAY 1 related to TIME 1 and
REPEAT 1 knobs for OUT 1.
If you connect with IN 1 and IN 2, then IN 1
and IN 2 will run DELAY 1 for OUT 1 and
DELAY 2 for OUT 2 separately.
OUT 1 (MONO)
OUT 1 signal is related to DELAY 1.
OUT 2
OUT 2 signal is related to DELAY 2.
USB port
You can update firmware through the USB
port.
DC jack
Use ONLY: 9V Negative Tip power with 300mA
.
