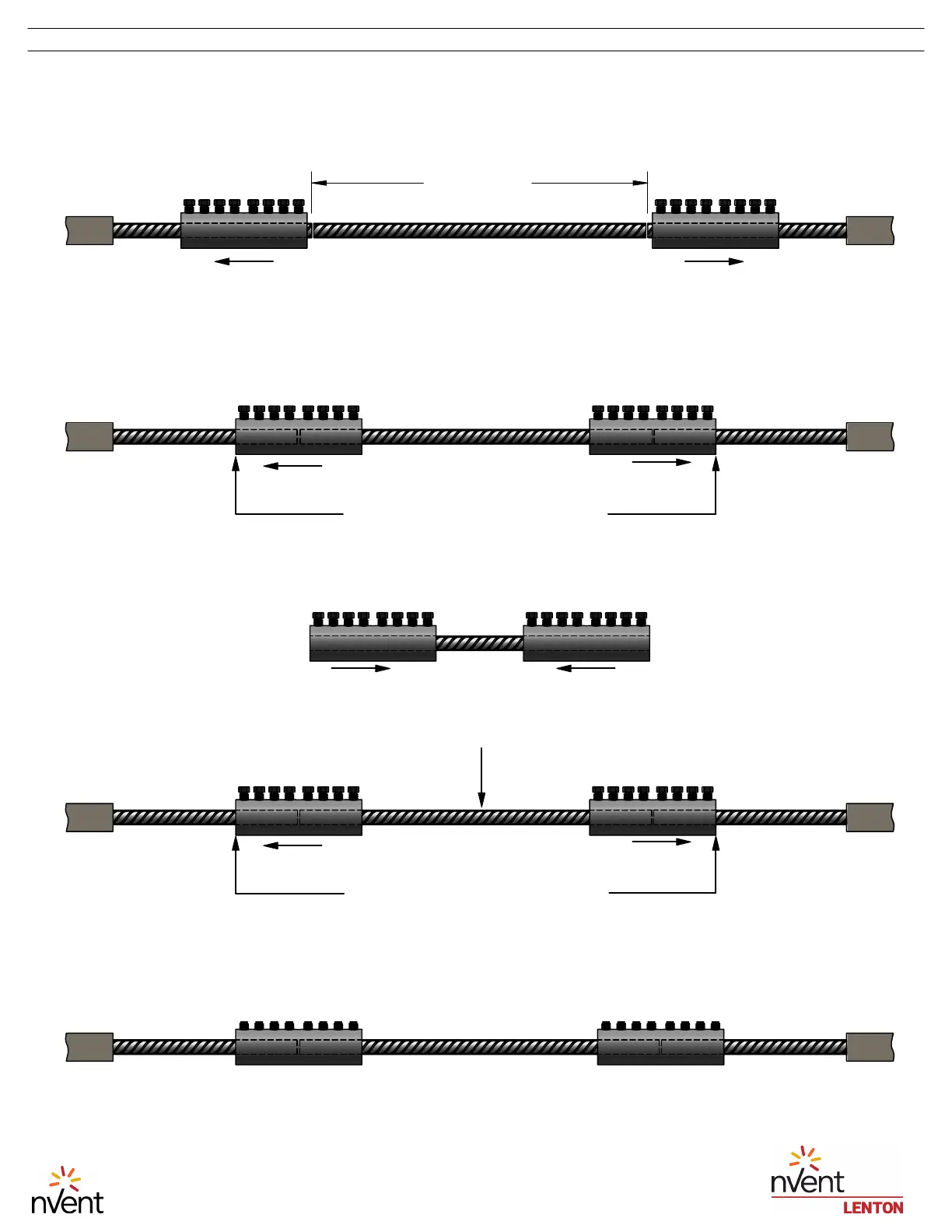

Marked rebar completed in step 1
Slide couplerSlide coupler
Place new
section of bar
Slide coupler Slide coupler
Slide couplerSlide coupler
Place new bar
and couplers
Slide coupler Slide coupler
Marked rebar completed in step 1
OPTION A
OPTION B
Step 3A:
Allow rebar to pass entirely through the coupler and align the rebar.
Step 4A:
Slide coupler into position. Center coupler ensuring rebar marks (completed in step 1)
line up correctly.
Step 5
: Tighten bolts per product instruction sheet IP8515.
Step 3B:
Step 4B:
TECHNICAL SUPPORT:
www.nVent.com
PDF139_A
INSTRUCTION SHEET
2 of 2
nVent, nVent CADDY, nVent ERICO Cadweld, nVent ERICO Critec, nVent ERICO, nVent ERIFLEX, and nVent LENTON are registered trademarks
of nVent or its global affiliates. All other trademarks are the property of their respective owners. nVent reservers the right to change
specifications without prior notice.
© 2019 nVent All Rights Reserved
