nvent RAYCHEM E-100-L User Manual

nVent.com | 3
2 1/4 in
(57 mm)
3

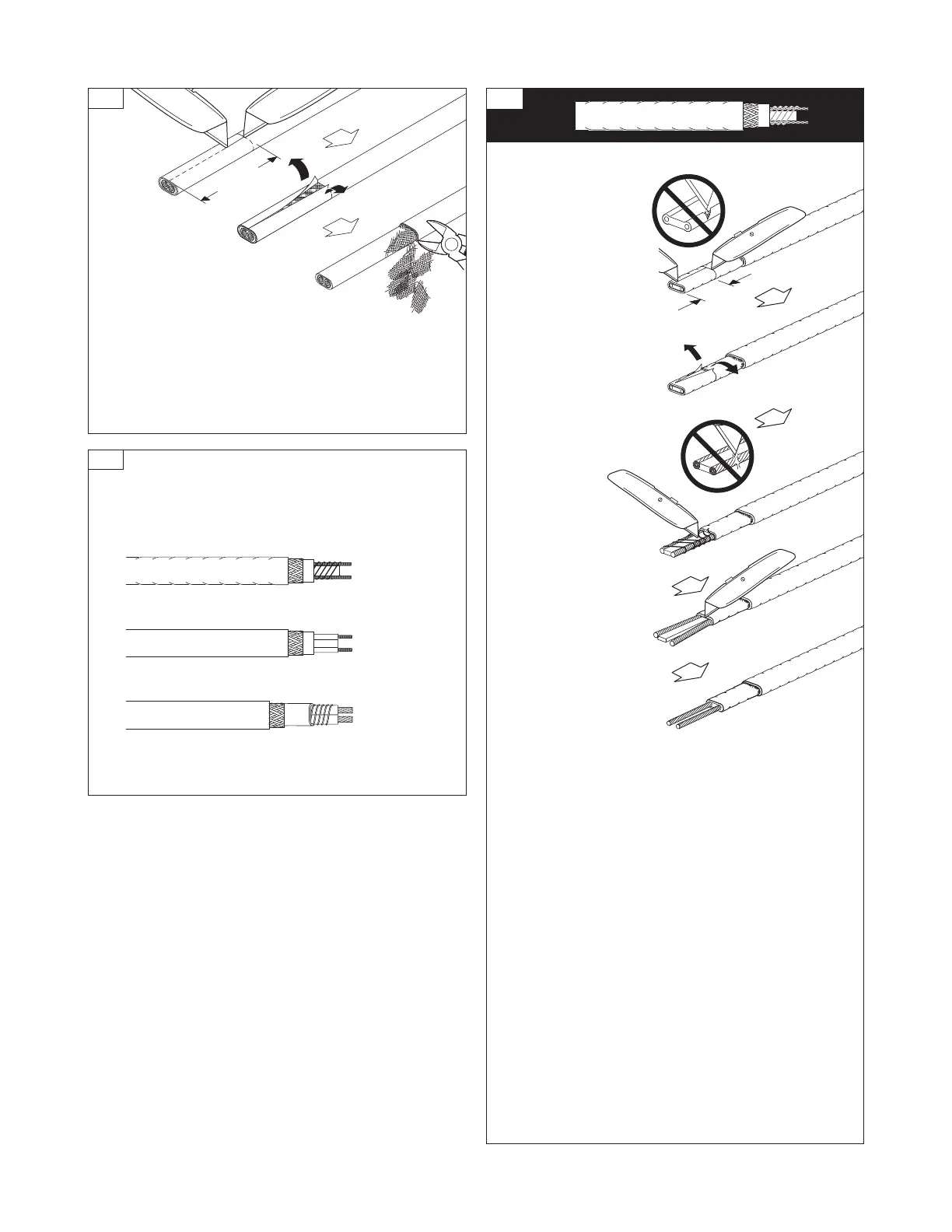

• Measure exactly 2 1/4 in (57 mm).
• Lightly score outer jacket around and
down as shown.
• Bend heating cable to break jacket at
score; peel off jacket.
• Remove all exposed braid.
XTV, KTV
BTV, QTVR
Go to Step 5A
Go to Step 5B
Go to Step 5C
VPL
4
• Determine heating cable type and continue as shown.
XTV, KTV
1 3/8 in
(35 mm)
Do not cut bus wires
• Measure exactly
1 3/8 in (35 mm).
• Lightly score inner
jacket around and
down as shown.
• Peel off jacket.
• Cut and remove all
fiber strands.
• Score and remove
center spacer.
• Remove any
remaining fiber
material from bus
wires.
Go to Step 6
