ConnectX-5 Card Replacement

DGX-2 System DU-09224-001 _v09|40

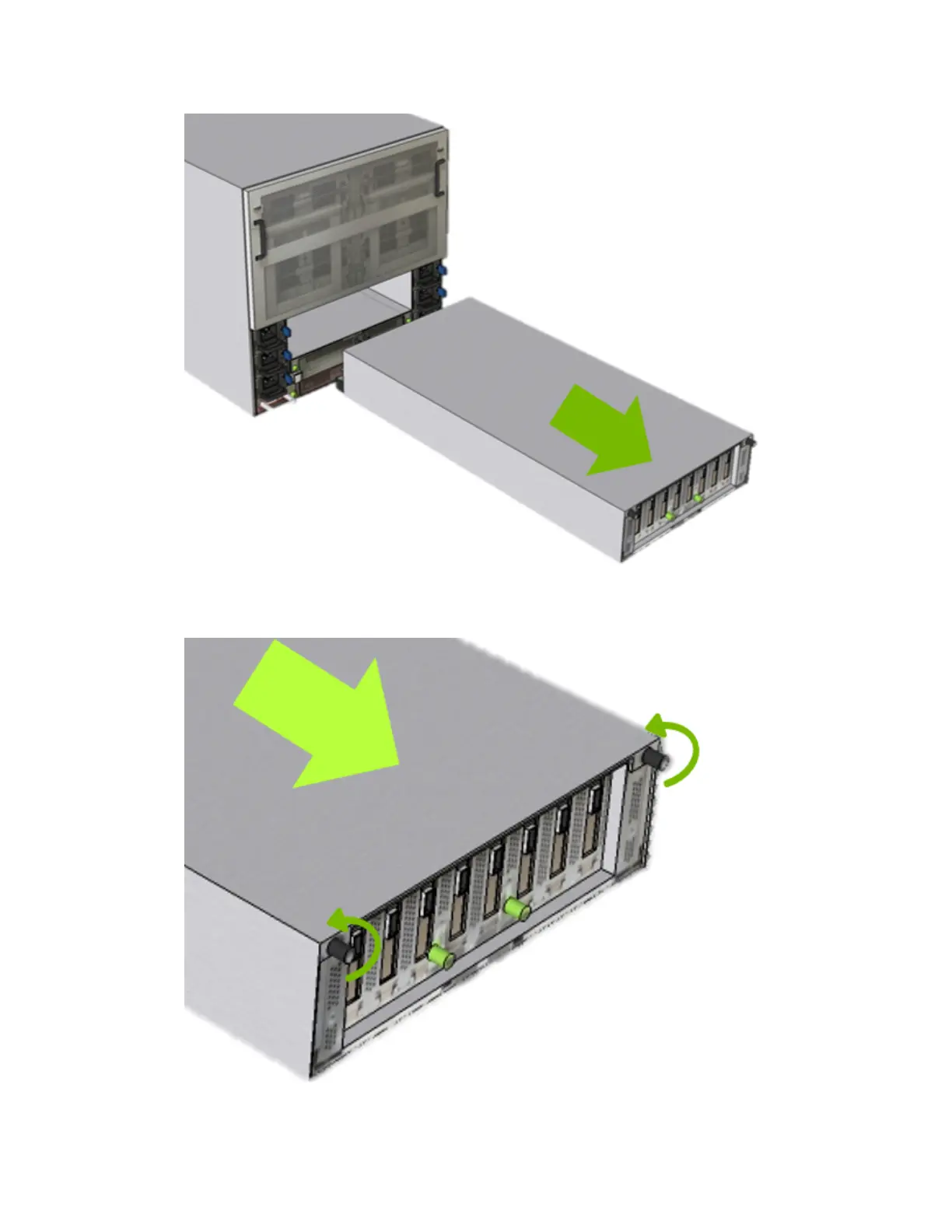

5. Remove the I/O tray lid.

a). Loosen the black screws and then push the lid towards you to release the lid.
