Nvidia DGX-2 SYSTEM Service Manual

I/O Tray Removal and Installation
DGX-2 System DU-09224-001 _v09|77

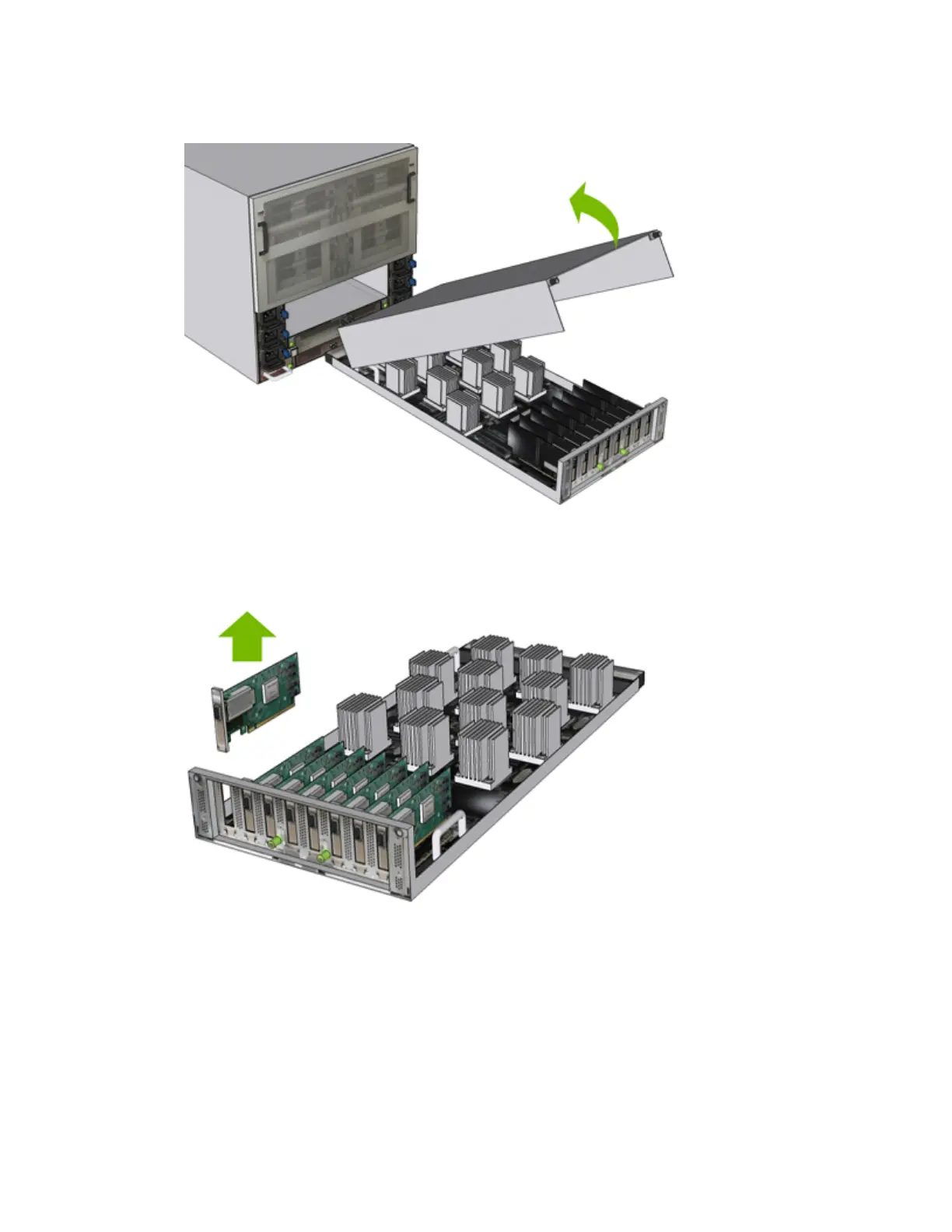

b). Lift the lid upward.
6. Move all the ConnectX-5 cards from the old tray to the new tray.
Perform the following for each card.
a). Remove the screw that secures the card, then pull the card out of the slot.
b). Insert the card into the new I/O tray and secure with the screw removed from the
previous step.
7. Install the I/O tray.
a). Replace the I/O tray lid by placing it over the module using the guiding pins and
grooves.
