User Manual
5

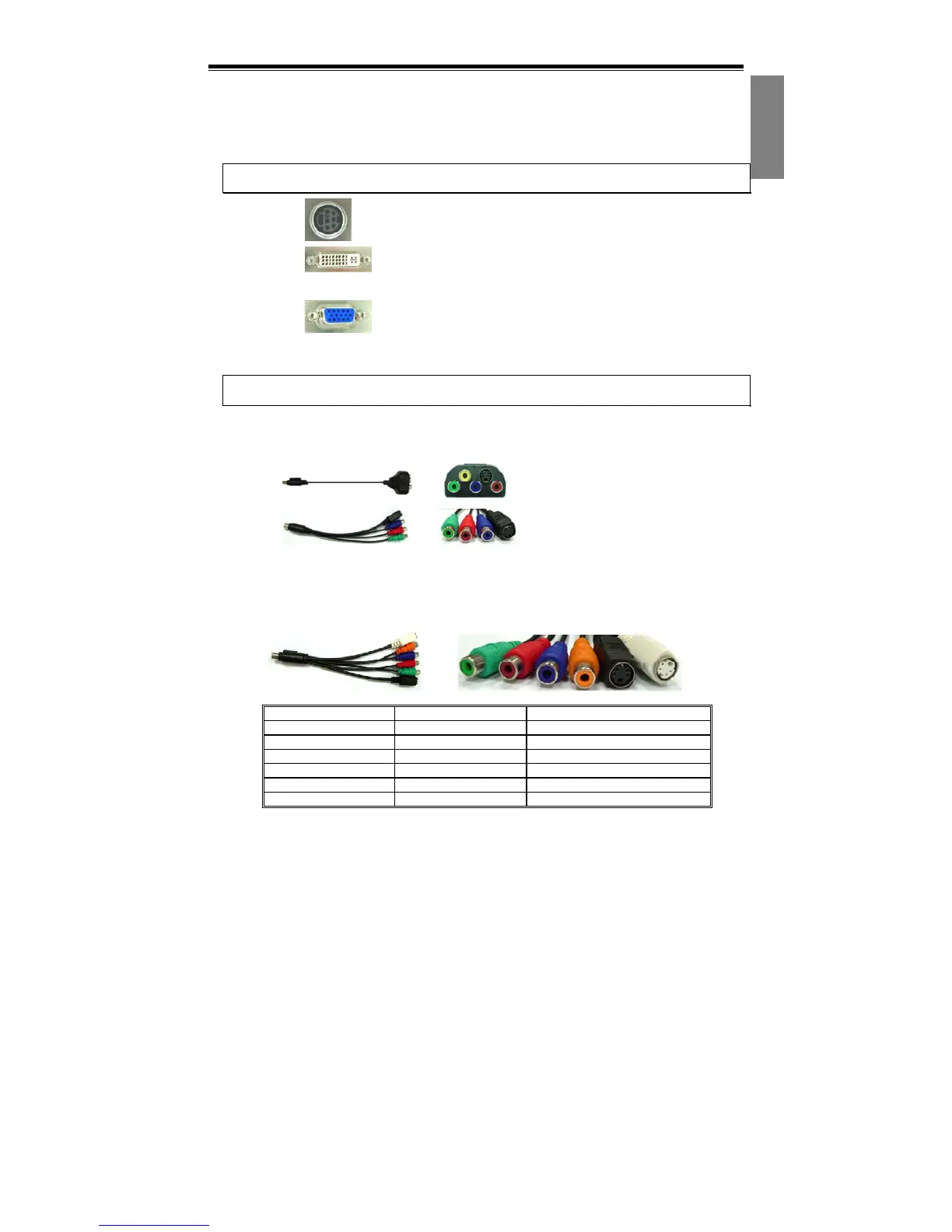

2.2 Card Connectors
Depend on the model you purchase, your VGA card may come with the
connectors below. Connect your monitor to one of the following outputs on the
display card and ensure that your monitor is correctly configured. See the
monitor installation instructions for more details.
Note: Based on special features integrated into each graphics card, the S-Video/HDTV/VIVO
connector on your graphics card may be different from the picture below.
S-Video
The S-Video connector is used to send video signals to S-Video
compatible display devices.
DVI-I
The DVI-I (Digital Video Interface – Integrated) connector uses DVI-I
technology to provide high-speed digital video signals for digital display
devices.
VGA
(D-Sub)
This analog VGA (D-Sub) connector is used to connect via 15 pins
connector of CRT or LCD monitor.
2.3 Video Signal Cables
Note: The picture below is for reference only. The cable in your package may be slightly different
from the picture.
HDTV Cable
HDTV Cable is able to transmit High Definition video signals to your display via
the specially designed S-Video connector on the VGA Card.
Type 1
(AV-Out / S-Out &HDTV AV-Out x 3)
Type 2
(S-Out & HDTV AV-Out x 3)
Video Input & Video Output (VIVO Cable)
VGA card modules with video-in function is able to send and receive video
signals via the specially designed S-Video connector on the VGA card. Use
VIVO Cable to transfer inbound and outbound video signals simultaneously
Connector color Definition Function
Green Y OUT HDTV AV-Out
Red Pr OUT HDTV AV-Out
Blue Pb/COMP OUT HDTV AV-Out / Video-out (AV)
Orange COMP IN Video-In (AV)
Black S-VID OUT S-Video Out
White S-VID IN S-Video In
