19
4.
5.

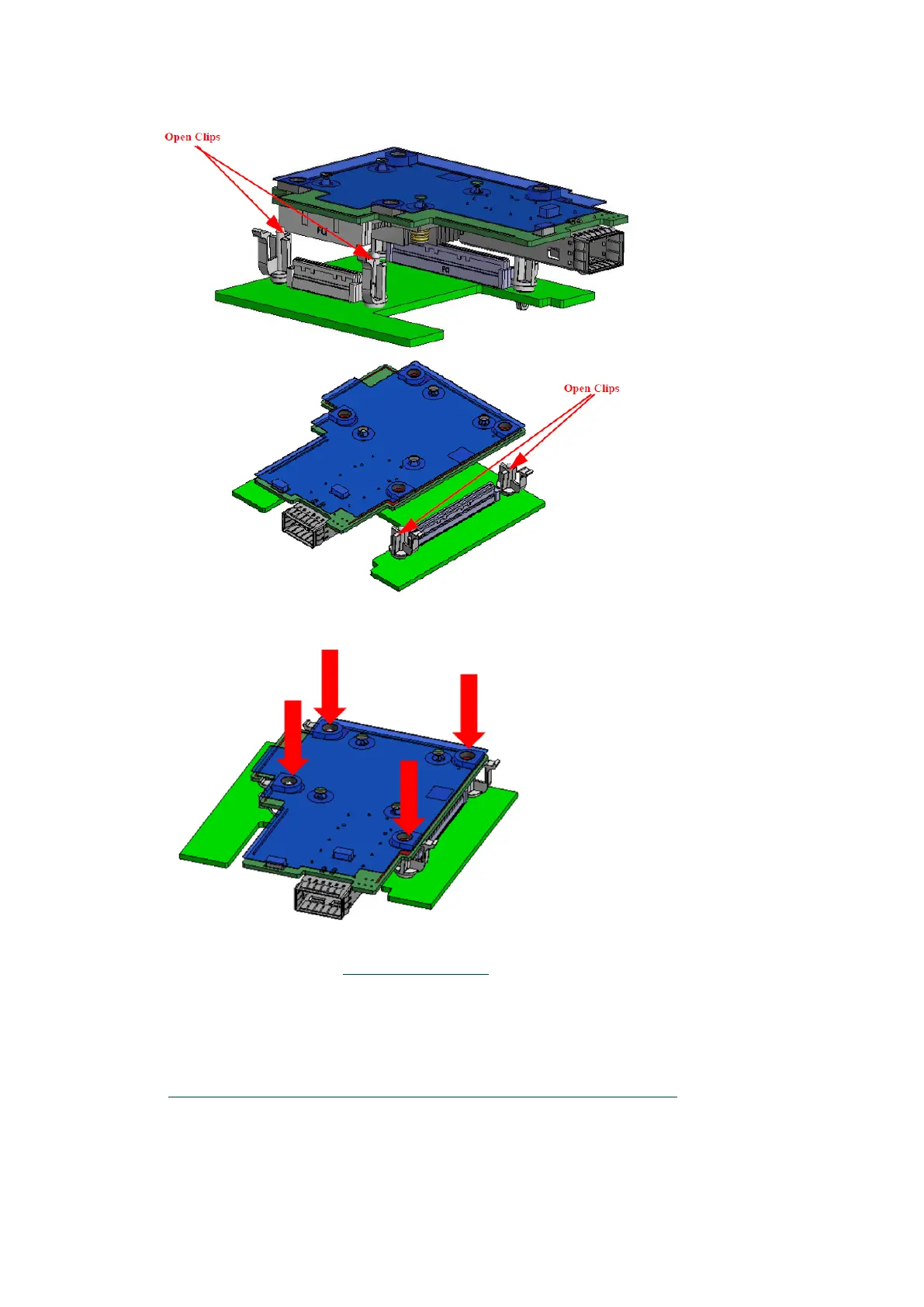

Applying even pressure on four corners of the card (as shown in the below picture), insert the
adapter card into the PCI Express slot until firmly seated.
Secure the adapter with the adapter clip or screw.
To uninstall the adapter card, seeUninstalling the Card.
Cables and Modules
To obtain the list of supported Mellanox cables for your adapter, please refer to theCables Reference
Tableathttp://www.mellanox.com/products/interconnect/cables-configurator.php.
Cable Installation
