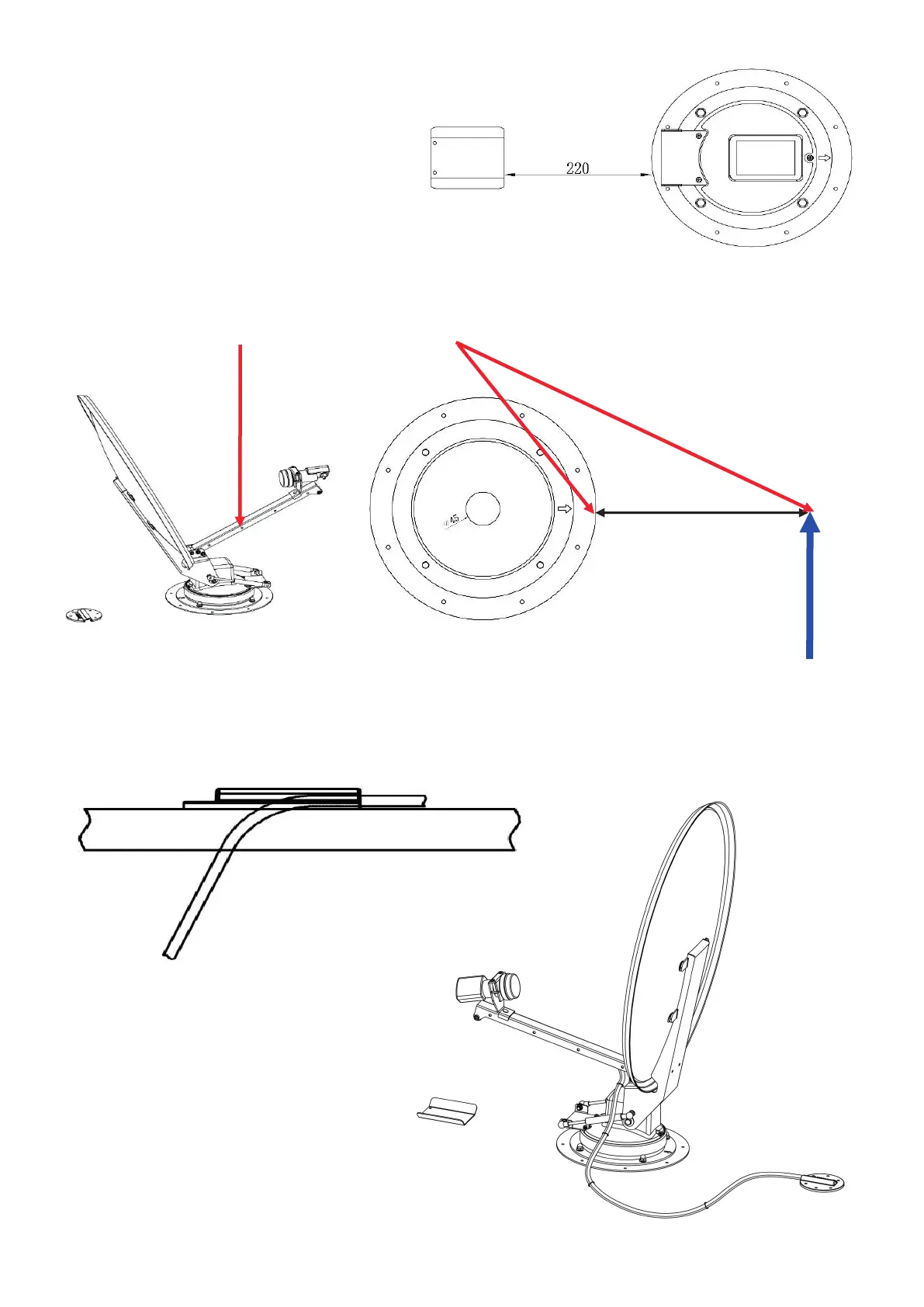

STEP 5. The LNB Arm Cradle Bracket should be
mounted to roof 220mm from base plate of dish,
toward rear of the vehicle (Fig G).
NB: Apply adhesive sealer to screw heads,
coax access hole & edge of gasket under
mounting base. Fig G
STEP 6. Facing the front of the dish, the coax & sensor cable attached to the side of the feed arm. Measure
coax 700mm from 3rd hole down from LNB and secure coax 220mm in front of arrow. DO NOT CUT COAX.
Secure cable with suitable P-Clip here
STEP 7. After drilling a hole through the roof, feed the coax & sensor wires through into the vehicle,
then using the cable entry/cover plate (included) to cover the wires & hole, apply sealer under the lip
of cable entry plate and where cable enters roof. (Fig I)
STEP 8. Attach the plate to roof with
screws provided in the correct orientation
as indicated (Fig J).
