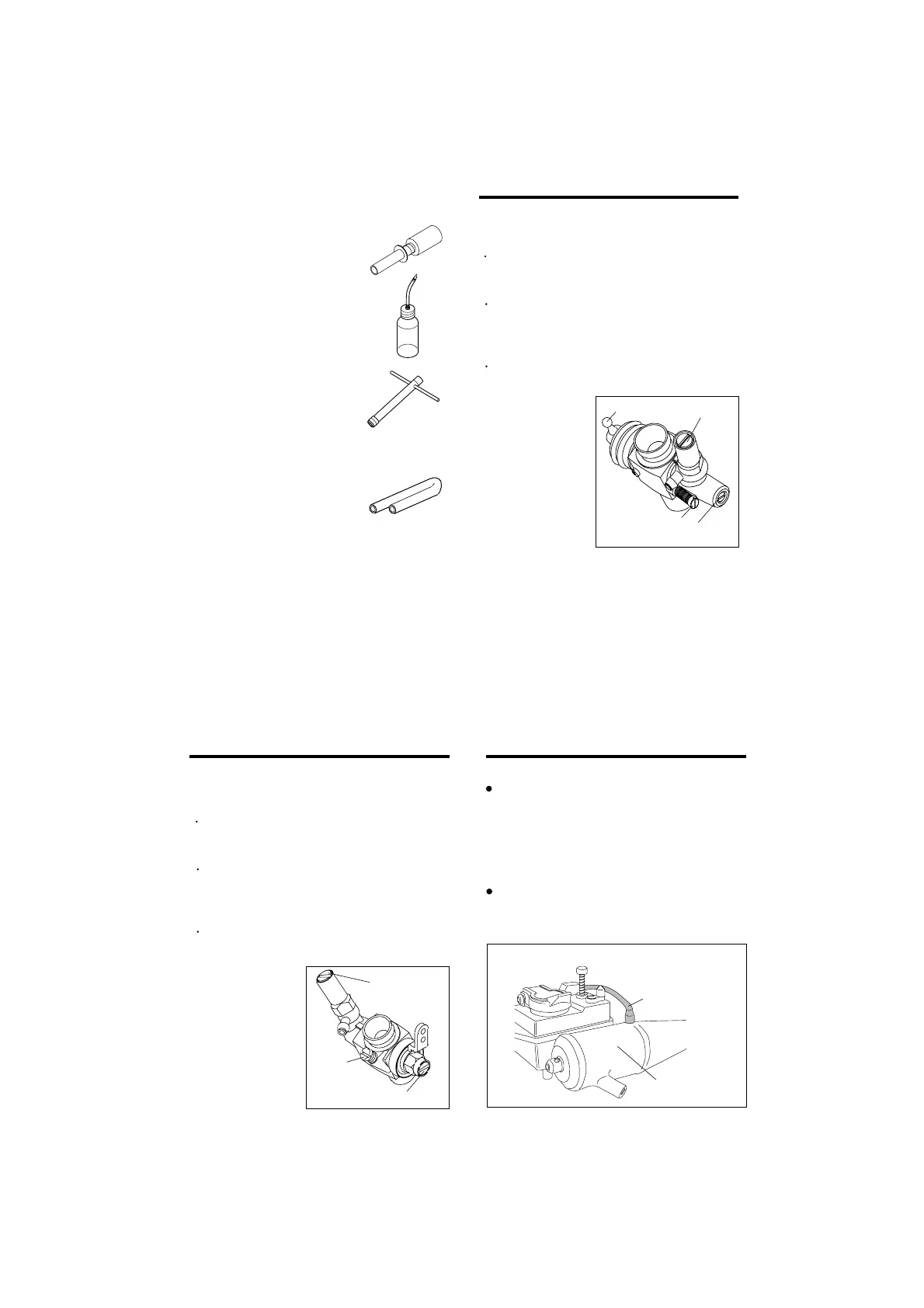

BATTERY INTEGRATED GLOWPLUG HEATER
Commercialy available handy
glowplug heater in which the
glowplug battery and battery
leads are integrated.
LONG SOCKET WRENCH
Recommended for easy removal
and replacement of the angled
and recessed glowplug, the
O.S.Long Socket Wrench
incorporates a special grip.
SILICONE FUEL LINE
Heatproof silicone tubing of
approx. 5mm o.d. and 2mm i.d.
is required for the connection
between the fuel tank and
engine.
FUEL PUMP
For filling the fuel tank, a simple,
polyethylene "squeeze" bottle,
with a suitable spout, is required.
CARBURETOR CONTROLS
(
10C
)
The Needle-Valve:
The Mixture Control Screw:
The Throttle Stop Screw:
For setting the minimum idling speed.
Needle Valve
Mixture Control Valve
Assembly Screw
Throttle Stop Screw
Ball Link
NOTE:
Readjustment may
be necessary, occa-
sionally to allow for
changes in fuel for-
mula, gear ratio or
clutch engagement
point.
Three adjustable controls are provided on this
carburetor.
For adjusting the mixture strength when the throttle
is fully open.
For adjusting the mixture strength at part-
throttle and idling speeds, to obtain steady
idling and smooth acceleration to mid speeds.
15
CARBURETOR CONTROLS
(
10E-R
)
The Needle-Valve:
The Mixture Control Screw:
The Throttle Stop Screw:
Three adjustable controls are provided on this
carburetor.
For adjusting the mixture strength when the throttle
is fully open.
For adjusting the mixture strength at part-
throttle and idling speeds, to obtain steady
idling and smooth acceleration to mid speeds.
NOTE:
Readjustment may
be necessary, occa-
sionally to allow for
changes in fuel, gear
ratio or clutch en-
gagement point.
Needle Valve
Mixture Control Valve
Assembly Screw
Throttle
Stop Screw
The somewhat violent changes of vehicle attitude
that occur in off-road running, combined with the
fact that, in buggy type cars, the fuel tank is often
located some distance from the carburettor, means
that fuel 'head' at the carburettor can vary and upset
running.Therefore,it is recommended that a muffler
pressurized fuel feed system be used.
Never run your vehicle without installing the air
cleaner. Dust and dirt that may otherwise be drawn
into the engine will rapidly shorten its life.
PRESSURIZED FUEL SYSTEM
Silencer
Fuel Tank
Silicone tubing
Connect suitable length of
Silicone tubing between fuel
tank and silencer.
For setting the minimum idling speed:
