O&O ASX03I - Electronic Equipment ASX031 Overview; Programs and Functions; Commands and Controls

- 8 -
1 2 OPERATION
OFF OFF AUTOTEST
OFF ON MANUAL
ON OFF SEMI-AUTOMATIC
ON ON AUTOMATIC
3 SEQUENCE FOR START COMMANDS
OFF OPENING; ONLY TO FCA CLOSING; IN CLOSING,
STOP AND REOPEN (PROG. FOR BLOCK OF FLATS).
ON OPENING, STOP, CLOSING, STOP, OPENING......
4 PRE-FLASHING
OFF DEACTIVATED
ON ACTIVATED ( 2.5" BEFORE EACH PHASE OF MOVEMENT)
5 PHOTOCELL
OFF INTERVENES ONLY IN CLOSING BY STOPPING AND
REOPENING UP TO FCA.
ON IN BOTH OPENING AND CLOSING, STOPS AND,
ONLY IF FREE, REOPENS.
6 REVERSER
OFF DEACTIVATED
ON ACTIVATED
7 INVERSION OF DIRECTION
OFF FORWARD DRIVE
ON REVERSE DRIVE
8 NOT USED
OFF ALWAYS KEEP AT OFF

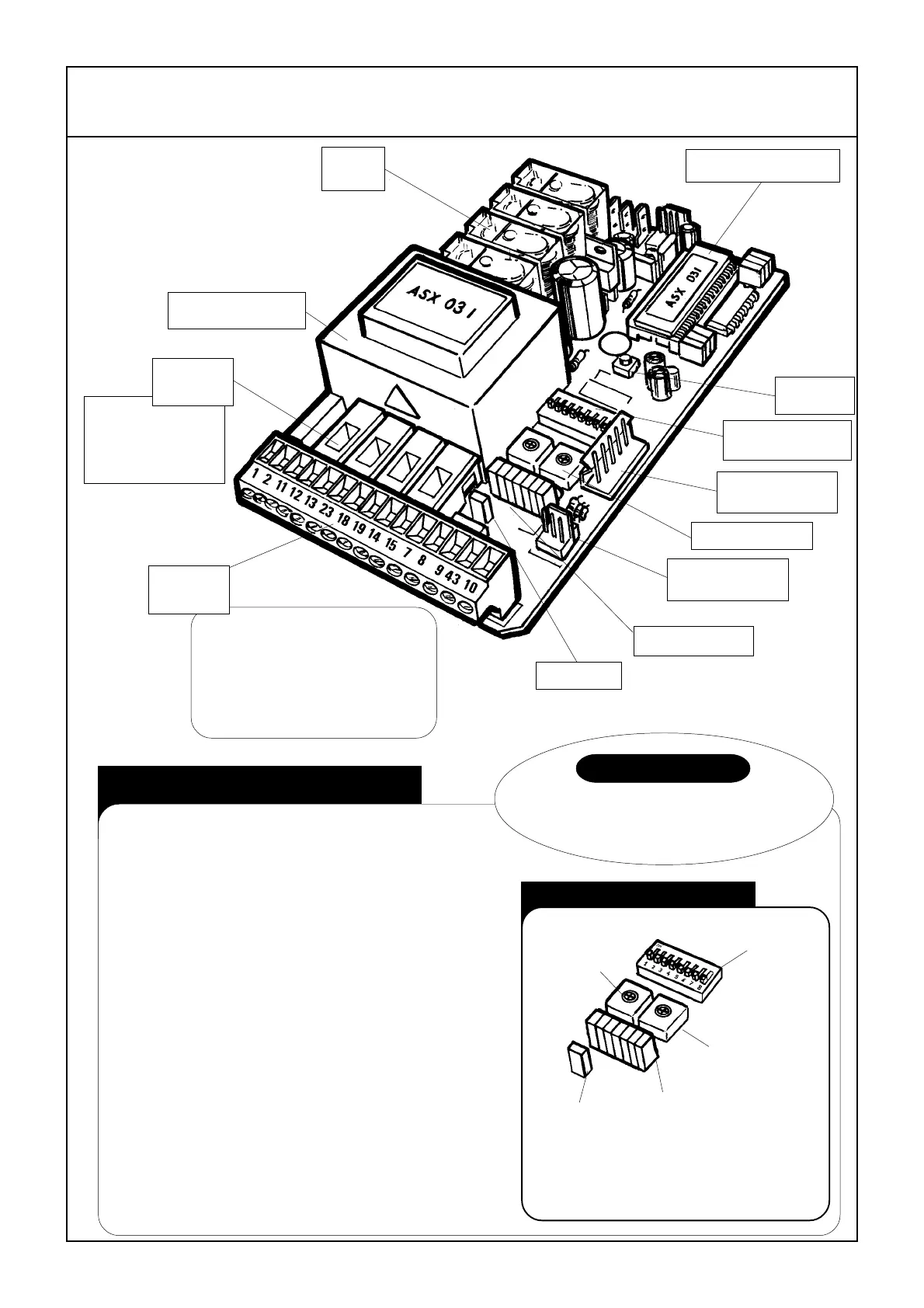

ELECTRONIC EQUIPMENT ASX03I
MICROPROCESSOR
FUSE
GROUP
RELAY
BANK
REVERSER
CONNECTOR
TRIMMERS
RADIO
CONNECTOR
RESET
BUTTON
F1 TRS 160mA
F2 SLR 250mA
F3 ENG 4A
F4 24V 500mA
LGT LED
TRANSFORMER
F3
F1
F2
F4
PROGRAMMING
DIP-SWITCH
REMOVABLE
TERMINALS
DIP FUNCTION
PROGRAMS AND FUNCTIONS
IMPORTANT
AFTER CHANGING DIP-SWITCH SETTINGS,
PRESS THE RESET BUTTON TO ENTER AND
STORE THE NEW CONFIGURATION.
TRIMMER OPERATING
TIME (2 - 80")
PROGRAMMING
DIP-SWITCH
TRIMMER
PAUSE TIME
(2 - 120")
LGT LED
FCA OPENING TRAVEL STOP
FCC CLOSING TRAVEL STOP
LUX PHOTOCELL
STP STOP BUTTON
RUN START BUTTON
PAR PEDESTRIAN BUTTON
REV REVERSER
STATUS LEDS
STATUS LEDS
COMMANDS AND CONTROLS
1-2 230 Vac SINGLE-PHASE LINE
11-12 FLASHER
13-23 AUX. CIRCUIT BREAKER
8-10 24Vac/3W INDICATOR LIGHT
14-15 24Vac TX PHOTOCELL
18-19 RX PHOTOCELL N.C. CONTACT
9 START BUTTON, N.O. CONTACT
7 STOP BUTTON, N.C. CONTACT
43 PEDESTRIAN BUTTON, N.O. CONTACT
8 PUSHBUTTON GND COMMON CONTACT
