46

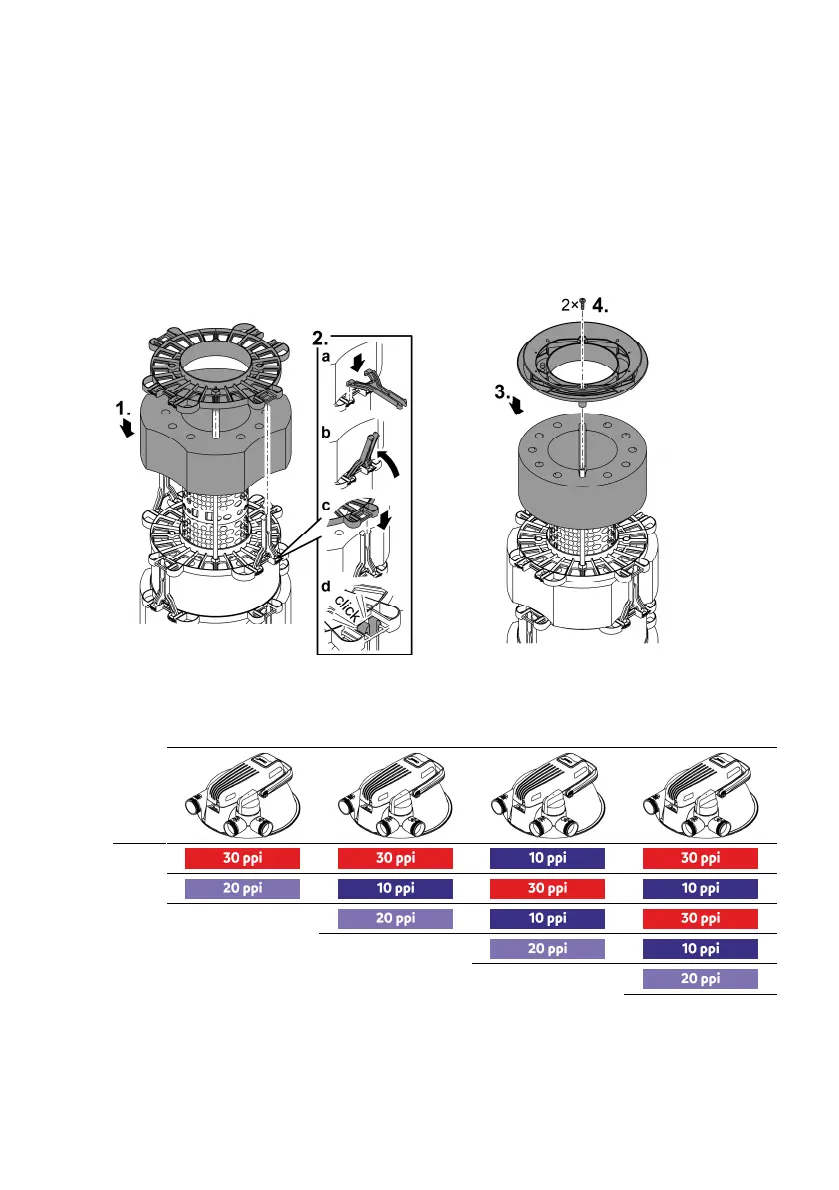

Assembling the foam filter package
Push the foam filters onto the meshed tube in the intended order. (→ Installation sequence of
the foam filters)
Place a spacer disc on each foam filter and fasten it with two spacers each.
– Insert the spacer into the spacer disc up to the stop and fold over the spacer with a slight
rotary movement.
Place the closing disc on the final foam filter (purple, 20 ppi). Fasten the closing disc to the two
cleaning rods using the two screws.
Position the filter cover on the container. (→ Positioning the filter cover)
Installation sequence of the foam filters
FiltoClear 5000 FiltoClear 13000 FiltoClear 19000 FiltoClear 31000
Foam filters
