OASIS Technical Bulletin OAS036RevC
Kalix – Expansion Tank Installation
090805 3 of 4 OAS036RevC

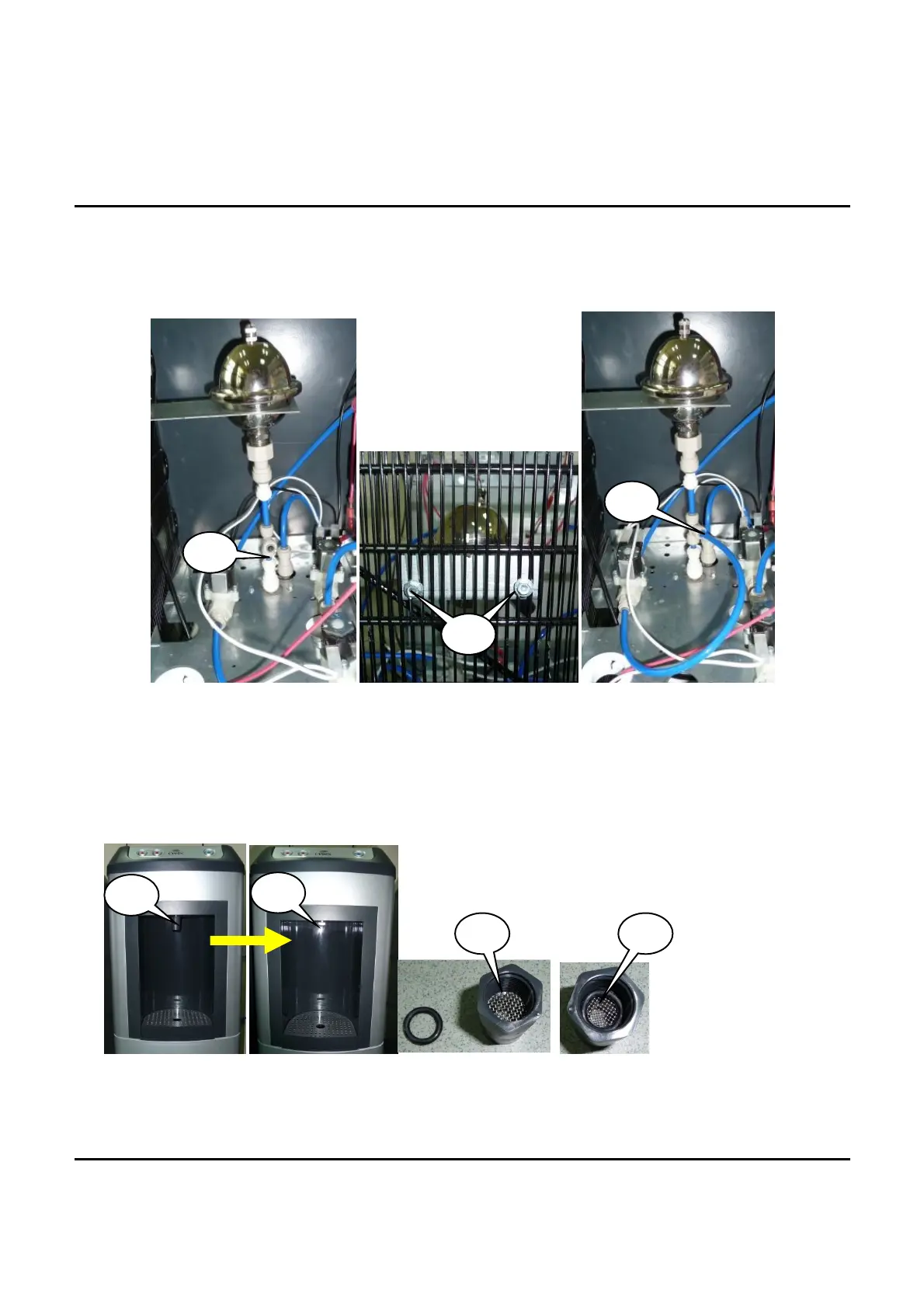

4. Install expansion tank:
a. Attach the loose tube on the expansion tank assembly to the fitting in the position marked on the photo
b. Attach the expansion tank bracket to the condenser with two screws
c. Connect the tube disconnected at step 2c to the open connection on the Tee-piece
STAGE 2: REPLACE SPOUT ASSEMBLY
5. Spout exchange:
a. Unscrew existing spout from Kalix,
b. Fit mesh to spout
c. Install o-ring into spout
d. Screw new spout with mesh and o-ring onto Kalix.
6. Connect unit to water and power supply. Flush some cold water from unit and see if there are any leaks on installed
parts (tubes, connections).
7. Refit the moulded top and tighten the 2 screws
4.a
2.a 4.b
4.c
5.a
5.a
5.c
5.b
