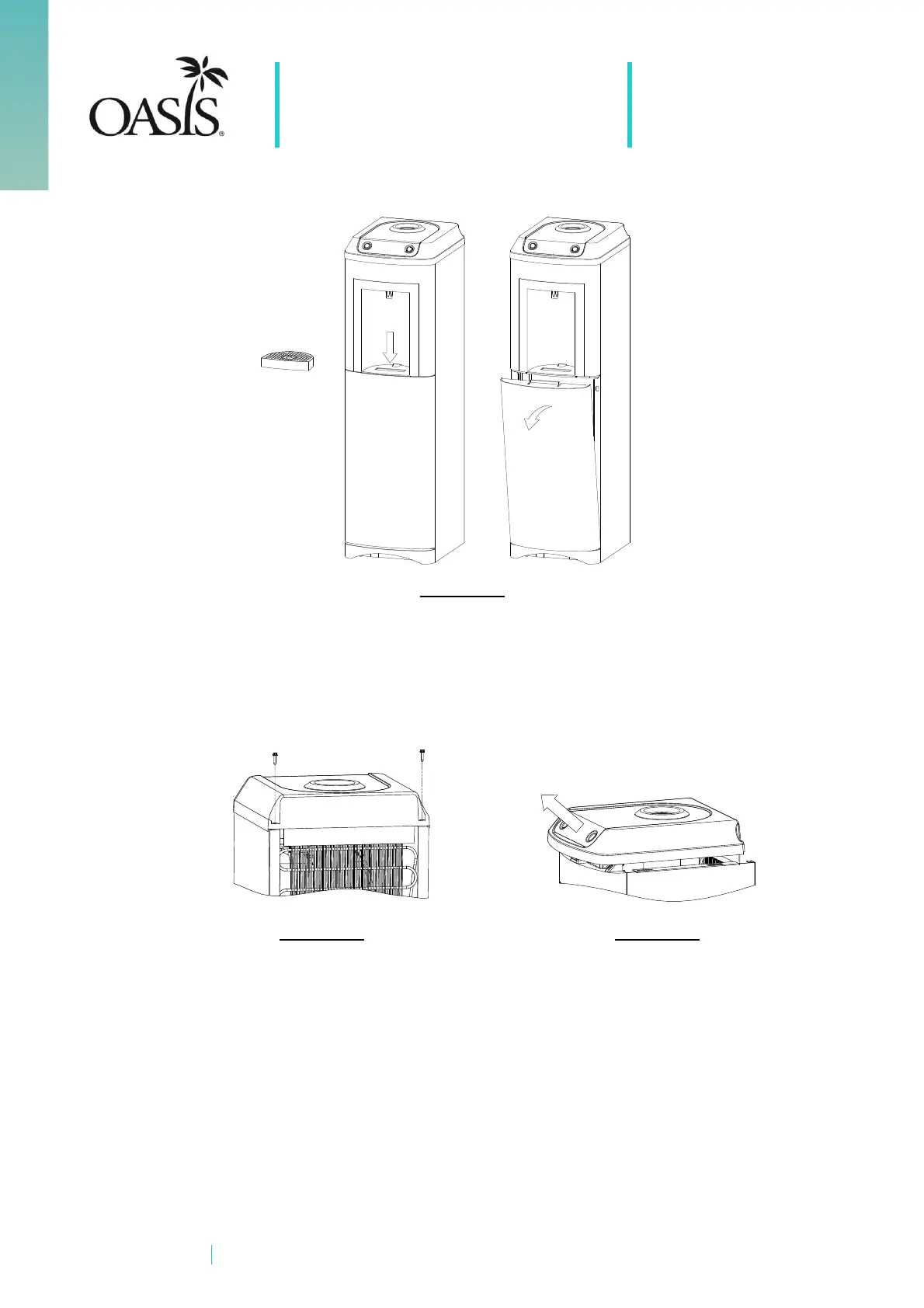

Diagram 3.2
• Remove the door from the cooler
• The inlet pipe and filter system, are now visible in the filter compartment.
3. Expose Tee-piece by removing top of cooler.
• Remove the top from the unit – remove the two screws at the rear of the top, and lift off the lid
assembly
Diagram 4.1 Diagram 4.2
4. Expose bulk head fitting by removing left side panel.
• Remove the three screws as shown in (Diagram 5.1.)
• Raise the panel vertically by about 25mm so that it clears the moulded base and the key slot,
and then lift the panel away from the cooler.
